The systems described in the Air Distribution Units (ADU’s)
are shown below. A variety of air terminal units are available
for connecting air systems to thermal zones. These single
description ADU’s contain the reference to the components and
the actual controls in one block of input. The idea is that
the control volume is drawn tightly around the controls and
loosely around the components. This allows complex
interactions to take place between all of the components that
respond to the Zone
Thermostatic Control output. The coils that are referenced in
the ADU’s are explained fully in the “Coils” section of this
manual.
The AirTerminal:SingleDuct:ConstantVolume:Reheat
or terminal reheat system is a constant volume reheat system.
The systems cooling capabilities are provided by way of
cooling coil that supplies cooling to the entire supply air
volume. The cooling coil is controlled by a controller
setpoint specified for the cooling coil. Zone
control is accomplished by heating (reheating) the airflow
into each zone as determined by the zone thermostat. Currently
the reheat can be supplied by a electric, gas, or hot water
coil that tries to meet the zone demand.
Schedule that this component will operate or is available
to operate. A schedule value greater than 0 (usually 1 is
used) indicates that the component can be on during the time
period. A value less than or equal to 0 (usually 0 is used)
denotes that the component must be off for the time period. If
this field is blank, the schedule has values of 1 for all time
periods.
This field is zero for gas and electric coils. Set to the
maximum design hot water or steam volumetric flow rate in
m\(^{3}\)/s for the hot water
or steam heating coil. The steam volumetric flow rate is
calculated at 100C and 101325 Pa.
This field is zero for gas and electric coils. Set to the
minimum design hot water or steam volumetric flow rate in
m\(^{3}\)/s for the hot water
or steam coil, normally set to be a shut off valve that is set
to zero. The steam volumetric flow rate is calculated at 100C
and 101325 Pa.
The coil is controlled by knowing the zone demand
determined by the zone thermostat and setting the outlet
conditions to meet this demand. For the electric and gas
coils, this is set exactly since the coil model solution can
be inverted. With the hot water coil that uses an
effectiveness-NTU method, the solution cannot be inverted
directly. Therefore, to determine the correct mass flow rate
for the hot water the solution is solved for by iteration. The
iterative solution uses an interval halving routine and needs
a termination criterion that is set with the Convergence
Tolerance parameter. This control offset is set to a decimal
fraction of the zone demand as the criteria, i.e. 0.001. The
default for the field is 0.001.
This is the upper limit on the temperature in degrees C of
the air leaving the terminal unit – reheat coil (and being
delivered to the zone). If the user leaves this field blank,
no maximum reheat air temperature is enforced.
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
An IDF example:
AirTerminal:SingleDuct:ConstantVolume:Reheat,
Reheat Zone 1, !- Name of System
FanAndCoilAvailSched, !- Availability schedule for VAV System
Zone 1 Reheat Air Outlet Node, !- Unit Air Outlet Node
Zone 1 Reheat Air Inlet Node, !- Unit Air Inlet Node
0.59, !- Maximum air flow rate {m3/s}
COIL:Gas:Heating, !- Reheat Component Object
Reheat Coil Zone 1, !- Name of Reheat Component
0.0, !- Max Reheat Water Flow {m3/s}
0.0, !- Min Reheat Water Flow {m3/s}
0.001; !- Convergence Tolerance
The AirTerminal:SingleDuct:ConstantVolume:NoReheat
object creates the capability of supplying central system air
directly to a zone without any zone level thermostat control.
The supply air temperature is controlled by the central system
controller. It is typically used with a unitary system and
furnaces which controls the system supply temperature and flow
rate with continuous or cycling fan. When used without the
Design Specification Outdoor Air Object Name, the terminal
unit is passive and accepts any flow rate supplied by the
central system, but will never exceed the maximum air flow
rate.
This object allows the program to know what zone this
branch of the air system is attached to, and input fields for
availability schedule, air inlet and outlet nodes, the maximum
air flow rate, and other two optional input fields. The air
inlet node should be the same as one of the AirLoopHVAC:ZoneSplitter
or AirLoopHVAC:SupplyPlenum
component outlet nodes. The air outlet node name should be
same as zone air inlet node name and the air distribution unit
air outlet node name. The last two optional input fields:
Design Specification Outdoor Air Object Name, and
Per Person Ventilation Rate Mode are used for
modulating the outdoor air requirement of an air terminal unit
depending on the method.
Availability schedule name for this system. Schedule value
> 0 means the system is available or else the system is
off. If this field is blank, the system is always
available.
The air inlet node name that connects the air splitter to
the individual zone air distribution unit. This node should
also be one of the outlet air node of an AirLoopHVAC:ZoneSplitter
or AirLoopHVAC:SupplyPlenum
component.
This is an air outlet node from the air distribution unit.
This node name should be one of the supply air inlet node
names of the zone served by this component.
The design maximum volume flow rate (m\(^{3}\)/sec). This field is
autosizable.
Field:
Design Specification Outdoor Air Object Name[LINK]
This field is used to modulate the terminal unit flow rate
based on the specified outdoor air requirement. When the name
of a DesignSpecification:OutdoorAir
or DesignSpecification:OutdoorAir:SpaceList
object is entered, the terminal unit will adjust flow to meet
this outdoor air requirement and no more. Load is still
"Uncontrolled." If Outdoor Air Flow per Person is non-zero,
then the outdoor air requirement will be computed based on
either the current or design occupancy as specified in the
Per Person Ventilation Rate Mode input field below.
At no time will the supply air flow rate exceed the value for
Maximum Air Flow Rate. The requested flow rate may not be
fully met if the system is operating with cycling fan. The
volume flow rate is converted to mass flow rate using the
standard density of air at Pressure = 101325 Pa, Temperature =
20C, and Humidity Ratio = 0.0. If this field is blank, then
the terminal unit will not be controlled for outdoor air flow.
This field is optional.
This field specifies the occupancy level to use when
calculating the ventilation rate per person when a Design
Specification Outdoor Air Object Name has been specified.
CurrentOccupancy uses the current number of people in
the zone which may vary. DesignOccupancy uses the
total Number of People
specified for the zone which is constant.
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
An IDF example:
AirTerminal:SingleDuct:ConstantVolume:NoReheat,
NoReheat Zone 1, !- Name of System
AlwaysOnFanAvailSched, !- Availability Schedule Name
Zone 1 Unit Air Inlet Node, !- Air Inlet Node Name
Zone 1 Unit Air Outlet Node,!- Air Outlet Node Name
0.60, !- Maximum Air Flow Rate {m3/s}
, !- Design Specification Outdoor Air Object Name
; !- Per Person Ventilation Rate Mode
AirTerminal:SingleDuct:VAV:Reheat
- Variable air volume (VAV) systems control the dry-bulb
temperature inside a zone by varying the supply air volume
instead of the air temperature. At full cooling the VAV damper
is fully open supplying the specified maximum air flow rate.
As the cooling load decreases, the damper closes until it
reaches the minimum stop specified by the zone minimum air
flow fraction. The zone minimum supply air flow can be further
adjusted using scheduled fraction values specified in the
field Minimum Air Flow Turndown Schedule Name.
VAV systems can be used for interior or perimeter zones
with a common fan system, air temperature control, and
reheating devices. The VAV concept may vary according to the
VAV box locations, air temperature controls and types of
heating elements. Heating can usually be provided by use of
reheat coils or thermostatic baseboard.
Schedule that this component will operate or is available
to operate. A schedule value greater than 0 (usually 1 is
used) indicates that the component can be on during the time
period. A value less than or equal to 0 (usually 0 is used)
denotes that the component must be off for the time period. If
this field is blank, the schedule has values of 1 for all time
periods.
The air inlet node name that connects the air splitter to
the individual zone ADU. This is not the same as the
air inlet node of the reheat component: it is upstream of that
node. This is the inlet node to the terminal unit and the
damper
This field is used to select how the program will determine
the minimum flow rate to the zone while the system is
operating. The minimum flow rate is modeled as a fraction of
the maximum flow rate. There are three choices for selecting
how the minimum flow rate is specified: Constant,
FixedFlowRate, and Scheduled. If Constant is entered, then
the program will use the value for the constant minimum air
flow fraction entered in the following field. If
FixedFlowRate is entered, then the program will use the value
for minimum flow rate entered in the field below called Fixed
Minimum Air Flow Rate. If Scheduled is entered, then the
program will obtain the value for minimum flow fraction from
the schedule named in the field below called Minimum Air Flow
Fraction Schedule Name. The default is Constant.
The minimum flow rate to the zone while the system is
operating, specified as a fraction of the maximum air flow
rate. The minimum zone fraction is normally specified to meet
the minimum ventilation requirement for the occupants. The
reheat coil operates only when the damper is at this minimum
flow rate when Damper Heating Action is set to Normal. This
field is used if the previous field is set to Constant. If
the previous field is set to Scheduled (and the field Maximum
Hot Water or Steam Flow Rate is set to autosize), then this
field is optional and can be used to separately control the
air flow rate used for sizing normal-action reheat coils. If
this field and the following field have values, the greater of
the two is used for sizing.
This field is autosizable and defaulted to autosize. The
autosized flow fraction is calculated using the maximum flow
rate derived from the design outdoor air flow (including VRP
adjustments) and the Sizing:Zone
input fields “Cooling Minimum Air Flow per Zone
Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum
Air Flow Fraction”. If there is no sizing calculation the
defaults of 0.000762 cubic meters per second per square meter
of zone floor area (0.15 cfm/ft2) and 0.2 are used. The
autosized flow fraction is calculated according to the ASHRAE
Standard 62.1 Simplified Procedure if the Sizing:System’s
“System Outdoor Air Method” associated with this terminal is
set to Standard62.1SimplifiedProcedure, see the System Outdoor
Air Method of the Sizing:System
object.
The minimum flow rate to the zone while the system is
operating, specified as a fixed minimum air flow rate in
meters cubed per second. The minimum air flow rate is normally
specified to meet the minimum ventilation requirement for the
occupants. The reheat coil operates only when the damper is at
this minimum flow rate when Damper Heating Action is set to
Normal (the default). This field is used if the Zone
Minimum Air Flow Method field is set to FixedFlowRate. If the
Zone
Minimum Air Flow Method field is set to Scheduled (and the
field Maximum Hot Water or Steam Flow Rate is set to
autosize), then this field is optional and can be used to
separately control the air flow rate used for sizing
normal-action reheat coils. Only one of these two minimum air
flow fields (i.e., this field and the previous field) should
be used at any time. If this field and the previous field have
values, the greater of the two is used for sizing.
This field is autosizable and defaulted to autosize. The
autosized flow rate is the maximum flow rate derived from the
design outdoor air flow (including VRP adjustments) and the Sizing:Zone
input fields “Cooling Minimum Air Flow per Zone
Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum
Air Flow Fraction”. If there is no sizing calculation the
defaults of 0.000762 cubic meters per second per square meter
of zone floor area (0.15 cfm/ft2) and 0.2 flow fraction are
used. The autosized flow rate is calculated according to the
ASHRAE Standard 62.1 Simplified Procedure if the
Sizing:System’s “System Outdoor Air Method” associated with
this terminal is set to Standard62.1SimplifiedProcedure, see
the System Outdoor Air Method of the Sizing:System
object.
Field:
Minimum Air Flow Fraction Schedule Name[LINK]
The name of a schedule that determines the value of the
minimum air flow fraction. The schedule should contain
fractions from 0.0 to 1.0. These values will define the
minimum flow rate to the zone while the system is operating,
specified as a fraction of the maximum air flow rate. The
reheat coil operates only when the damper is at this minimum
flow rate when Damper Heating Action is set to Normal (the
default). This field is used if the previous field is set to
Scheduled. If the previous field is left blank (and the field
Maximum Hot Water or Steam Flow Rate is set to autosize), then
the air flow rate used for sizing normal-action reheat coils
is the average of the minimum and maximum values in this
schedule. The air flow rate used for reheat coil sizing is
reported with other component sizing information as “Reheat
Coil Sizing Air Volume Flow Rate.”
Reheat Coil Object name being simulated with this ADU.
Applicable for all coils. If there is no reheat coil, use
object AirTerminal:SingleDuct:VAV:NoReheat
instead of this object.
This field is zero for gas and electric coils. Set to the
maximum design hot water or steam volumetric flow rate in
m\(^{3}\)/s for the hot water
or steam heating coil. The steam volumetric flow rate is
calculated at 100C and 101325 Pa. This field is autosizable.
If there is no reheat coil, this is left blank.
This field is zero for gas and electric coils. Set to the
minimum design hot water or steam volumetric flow rate in
m\(^{3}\)/s for the hot water
or steam heating coil, normally set to be a shut off valve
that is set to zero. The steam volumetric flow rate is
calculated at 100C and 101325 Pa. If there is no reheat coil,
this is left blank.
The coil is controlled by knowing the zone demand
determined by the zone thermostat and setting the outlet
conditions to meet this demand. For the electric and gas
coils, this is set exactly since the coil model solution can
be inverted. With the hot water coil that uses an
effectiveness-NTU method, the solution cannot be inverted
directly. Therefore, to determine the correct mass flow rate
for the hot water the solution is solved for by iteration. The
iterative solution uses an interval halving routine and needs
a termination criteria that is set with the Convergence
Tolerance parameter. This control offset is set to a decimal
fraction of the zone demand as the criteria, i.e. 0.001. The
default for the field is 0.001.
During heating operation, there are three control options
for the damper controlling the air flow in the VAV terminal
unit as the zone moves above or below the zone setpoint. With
all three control options, the damper is at the minimum air
flow rate whenever the zone temperature is between the cooling
and heating setpoints (deadband condition).
With Normal action, the damper will remain
at the minimum air flow rate during heating operation. As the
heating load increases, the water flow rate in the reheat coil
will be increased to maintain temperature in the zone until
the maximum water flow rate is reached or the user-specified
maximum reheat air temperature is reached. This is sometimes
called the single maximum control logic as illustrated
below.

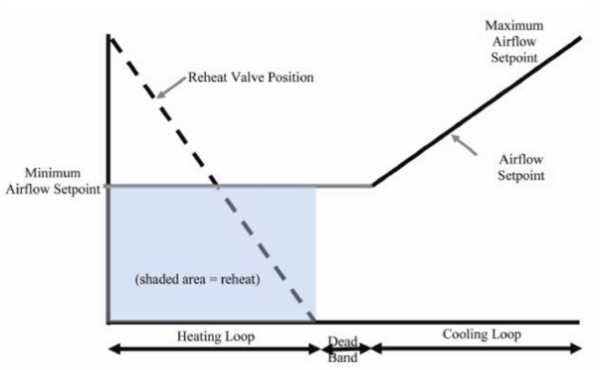

The Single Maximum Control
Logic [fig:the-single-maximum-control-logic]
With Reverse and
ReverseWithLimits (the default) action, as
the heating load increases, the unit starts at minimum air
flow and minimum hot water flow. The hot water flow is
increased until it reaches maximum flow or the user-specified
maximum reheat air temperature is reached, then the air damper
starts to open to meet the load. For Reverse
the damper can open all the way. For
ReverseWithLimitss the damper can only
partially open to a maximum flow rate given by the following
two fields. These options are used if the minimum air flow
rate is not adequate to serve the peak heating load. This is
sometimes called the dual maximum control logic as illustrated
in following figure. For heating coil types other than the
hot-water coil, e.g. electric, steam, and gas, the reverse
action works the same as the normal action – always keeping
the air flow at the minimum during heating.
The dual-max control currently applies to the AirTerminal:SingleDuct:VAV:Reheat
objects with reverse acting dampers and hot-water coils.

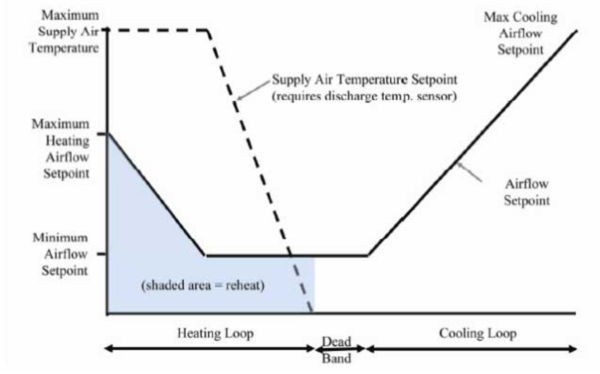

The Dual Maximum Control Logic
[fig:the-dual-maximum-control-logic]
Control
Fields for Maximum Flow During Reheat:[LINK]
The following two fields are used only when Reheat Coil
Object Type = Coil:Heating:Water
and Damper Heating Action = ReverseWithLimits. Maximum Flow
per Zone
Floor Area During Reheat and Maximum Flow Fraction During
Reheat are two optional methods to calculate the maximum
allowable air flow rate during reheat operation. If both are
entered, the greater resulting flow rate is used. If Design
Specification Outdoor Air Object Name is also specified, it
may increase this limit to meet the outdoor air flow rate
requirement. At no time will the maximum flow rate calculated
here exceed the value for Maximum Air Flow Rate.
This limit is active only when the zone thermostat requests
heating and the VAV box damper is reverse acting (i.e.,
ReverseWithLimits).
Field:
Maximum Flow per Zone Floor Area During Reheat[LINK]
This factor (m\(^{3}\)/s-m\(^{2}\)) is multiplied by the zone
area, to determine the maximum volume flow rate (m\(^{3}\)/s) allowed during reheat
operation (see detailed explanation above). This field is
autosizable and its default is autosize. If autosize is
selected or the field is blank, the value is filled from the
similar inputs in Sizing:Zone.
If there is no sizing calculation the value is set to 0.002032
m\(^{3}\)/s-m\(^{2}\) (0.4 cfm/ft\(^{2}\)). If this field and the
following field are entered, the greater of the two inputs is
used. This field and the following field are only used if
Damper Heating Action = ReverseWithLimits.
This fraction is multiplied by the Maximum Air Flow Rate to
determine the maximum volume flow rate (m\(^{3}\)/s) allowed during reheat
operation (see detailed explanation above). This field is
autosizable and is defaulted to autosize. If autosizable is
selected or the field is blank, the value is set to 0.002032
m\(^{3}\)/s-m\(^{2}\) (0.4 cfm/ft\(^{2}\)) multiplied by the zone
floor area divided by the Maximum Air Flow Rate. If this field
and the previous field are entered, the greater of the two
inputs is used. This field and the following field are only
used if Damper Heating Action = ReverseWithLimits.
This field specifies a maximum supply air temperature (°C)
leaving the reheat coil in a VAV terminal unit during heating
operation. If leaving blank, the temperature of the supply air
to the space in heating operation may get unrealistic
high.
Field:
Design Specification Outdoor Air Object Name[LINK]
This alpha field specifies the name of a DesignSpecification:OutdoorAir
or DesignSpecification:OutdoorAir:SpaceList
object. When this field is used, the terminal unit will
increase flow as needed to meet this outdoor air requirement.
If Outdoor Air Flow per Person is non-zero, then the outdoor
air requirement will be computed based on the current number
of occupants in the zone. At no time will the supply air flow
rate exceed the value for Maximum Air Flow Rate. If this field
is blank, then the terminal unit will not be controlled for
outdoor air flow. See documentation for the zone HVAC outdoor
air object for further information (Ref
DesignSpecification:OutdoorAir).
Field:
Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Constant Minimum Air Flow
Fraction, Fixed Minimum Air Flow Rate, or
Minimum Air Flow Fraction Schedule value by
multiplying it using this schedule. Schedule values are
fractions, 0.0 to 1.0. This field adjusts the minimum airflow
turndown value below the zone design minimum air flow and is
intended for use with ASHRAE Standard 170. This field can also
be used to adjust the design minimum air flow sizing
calculation by applying a desired fraction values to summer
and winter design days turndown schedule. If this field is
left blank, then the turndown minimum air flow fraction value
is set to 1.
An IDF example:
AirTerminal:SingleDuct:VAV:Reheat,
SPACE2-1 VAV Reheat, !- Name of System
ReheatCoilAvailSched, !- Availability schedule for VAV System
SPACE2-1 Zone Coil Air In Node, !- Damper Air Outlet Node
SPACE2-1 ATU In Node, !- Unit Air Inlet Node
autosize, !- Maximum air flow rate {m3/s}
Constant, !- Zone Minimum Air Flow Input Method
0.3, !- Constant Minimum Air Flow Fraction
, !- Fixed Minimum Air Flow Rate
, !- Minimum Air Flow Fraction Schedule Name
COIL:Gas:Heating, !- Reheat Component Object
SPACE2-1 Zone Coil, !- Name of Reheat Component
0.0, !- Max Reheat Water Flow {m3/s}
0.0, !- Min Reheat Water Flow {m3/s}
SPACE2-1 In Node, !- Unit Air Outlet Node
0.001, !- Convergence Tolerance
ReverseWithLimits, !- Damper Heating Action
, !- Maximum Flow per Zone Floor Area During Reheat
, !- Maximum Flow Fraction During Reheat
35.0, !- Maximum Reheat Air Temperature {C}
, !- Design Specification Outdoor Air Object Name
TurndownMinAirFlowSch; !- Minimum Air Flow Turndown Schedule Name
DesignSpecification:OutdoorAir,
ZoneMinOARequirements, !- Name
Sum, !- Outdoor Air Method
0.00472, !- Outdoor Air Flow per Person {m3/s}
0.000508, !- Outdoor Air Flow per Zone Floor Area {m3/s-m2}
, !- Outdoor Air Flow per Zone
, !- Outdoor Air Flow Air Changes per Hour
Min OARequirements Sched; !- Outdoor Air Flow Rate Fraction Schedule Name
Schedule:Compact,
Min OARequirements Sched, !- Name
Any Number, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays SummerDesignDay WinterDesignDay, !- Field 2
Until: 24:00,1.0, !- Field 7
For: AllOtherDays, !- Field 9
Until: 24:00,0.25; !- Field 10
COIL:Heating:Fuel,
SPACE1-1 Zone Coil, !- Coil Name
ReheatCoilAvailSched, !- Availability Schedule Name
NaturalGas, !- Fuel Type
0.8, !- Gas Burner Efficiency of the Coil
autosize, !- Nominal Capacity of the Coil {W}
SPACE1-1 Zone Coil Air In Node, !- Coil_Air_Inlet_Node
SPACE1-1 In Node; !- Coil_Air_Outlet_Node
Schedule:Compact,
TurndownMinAirFlowSch, !- Name
Fraction, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays, !- Field 2
Until: 7:00,0.50, !- Field 3
Until: 17:00,0.75, !- Field 4
Until: 24:00,0.50, !- Field 5
For: SummerDesignDay WinterDesignDay, !- Field 6
Until: 24:00,1.0, !- Field 7
For: Weekends Holidays CustomDay1 CustomDay2, !- Field 8
Until: 24:00,0.25; !- Field 9
This output is the variable air volume damper position
required to meet the zone load. This is the average value over
the frequency being reported. The damper position is defined
as the terminal unit air mass flow rate divided by the
terminal unit’s maximum air mass flow rate.
Zone Air
Terminal Minimum Air Flow Fraction [][LINK]
This output is the value for the minimum air flow fraction
setting on a VAV terminal. This is the average value over
the frequency being reported. The minimum air flow fraction is
defined as the lower limit on the terminal unit air mass flow
rate divided by the terminal units maximum air mass flow
rate.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
The VAV terminal unit with variable-speed fan and reheat
coil is an air system terminal unit consisting of a variable
speed fan in series with a heating coil. These units are
usually employed in underfloor air distribution (UFAD) systems
where the air is supplied at low static pressure through an
underfloor plenum. The fan is used to control the flow of
conditioned air that enters the space. When the fan is off the
plenum pressure drives the minimum air flow through the
terminal unit. At maximum cooling the fan runs at its maximum
speed. At full heating the fan runs at its heating maximum –
usually less than the cooling maximum flow rate. Thus this
unit has two separate maximum flow rates – one for heating and
one for cooling.
For cooling, control is maintained simply by varying the
fan speed. For heating, the unit first tries to meet the
heating load by varying the heating coil output while keeping
the air flow at minimum (fan off). If this is not adequate the
fan turns on and operates in variable flow mode up to the
heating maximum flow rate. The zone fan-off minimum supply air
flow can be further adjusted using scheduled fraction values
specified in the field Minimum Air Flow Turndown Schedule
Name.
This unit is modeled in EnergyPlus as a compound component
– a variable speed fan and a heating coil in series in the air
stream. The unit is blow through – the fan is upstream of the
heating coil.
The name of the schedule (ref: Schedule) that denotes
whether the unit can run during a given time period. A
schedule value greater than 0 (usually 1 is used) indicates
that the unit can be on during the time period. A value less
than or equal to 0 (usually 0 is used) denotes that the unit
must be off for the time period. If this field is blank, the
schedule has values of 1 for all time periods.
The maximum volumetric air flow rate through the unit in
cubic meters per second when the thermostat is calling for
cooling. Normally this is the same as the unit’s fan maximum
volumetric flow rate.
The minimum flow rate to the zone while the system is
operating, specified as a fraction of the maximum air flow
rate. For this unit this is the flow rate when the fan is
off.
The name of the HVAC system node that is the air outlet
node of the unit. This same node will be the unit heating
coil’s air outlet node. This node is also a zone inlet
node.
The maximum hot water or steam volumetric flow rate in
m\(^{3}\)/s through the
unit’s heating coil. The steam volumetric flow rate is
calculated at 100C and 101325 Pa. If the heating coil is not a
hot water or steam coil this field should be left blank.
The minimum hot water or steam volumetric flow rate in
m\(^{3}\)/s through the
unit’s heating coil. The steam volumetric flow rate is
calculated at 100C and 101325 Pa. If the heating coil is not a
hot water or steam coil this field should be left blank.
The control tolerance for the unit heating output. The unit
is controlled by matching the unit output to the zone demand.
The model must be numerically inverted to obtain a specified
output. The convergence tolerance is the error tolerance used
to terminate the numerical inversion procedure. Basically,
this is the fraction:
Field:
Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts Zone
Minimum Air Flow Fraction by multiplying it using this
schedule. Schedule values are fractions, 0.0 to 1.0. This
field adjusts the minimum airflow turndown value below the
zone design minimum air flow and is intended for use with
ASHRAE Standard 170. This field can also be used to adjust the
design minimum air flow sizing calculation by applying a
desired fraction values to summer and winter design days
turndown schedule. If this field is left blank, then the
turndown minimum air flow fraction value is set to 1 and the
VAV air terminal uses the fixed fraction specified in in the
field Zone
Minimum Air Flow Fraction.
An IDF example:
AirTerminal:SingleDuct:VAV:Reheat:VariableSpeedFan,
SPACE2-1 VAV Reheat, !- Name of System
ReheatCoilAvailSched, !- System Availability schedule
autosize, !- Maximum cooling air volume flow rate
autosize, !- Maximum heating air volume flow rate
0.05, !- Zone Minimum Air Flow Fraction
SPACE2-1 ATU In Node, !- Air Inlet Node Name
SPACE2-1 In Node, !- Air Outlet Node Name
FAN:VariableVolume, !- Fan object
SPACE2-1 Zone Fan, !- Fan name
COIL:Water:SimpleHeating, Heating coil object
SPACE2-1 Zone Coil, !- Heating coil name
autosize, !- Max hot water flow
0.0, !- Min hot water flow
0.001, !- Heating Convergence Tolerance
TurndownMinAirFlowSch; !- Minimum Air Flow Turndown Schedule Name
Coil:Heating:Water,
SPACE2-1 Zone Coil, !- Coil Name
ReheatCoilAvailSched, !- Availability Schedule Name
autosize, !- UA of the Coil {W/K}
autosize, !- Max Water Flow Rate of Coil {m3/s}
SPACE2-1 Zone Coil Water In Node, !- Coil_Water_Inlet_Node
SPACE2-1 Zone Coil Water Out Node, !- Coil_Water_Outlet_Node
SPACE2-1 Zone Coil Air In Node, !- Coil_Air_Inlet_Node
SPACE2-1 In Node; !- Coil_Air_Outlet_Node
Fan:VariableVolume,
SPACE2-1 Zone Fan, !- Fan Name
FanAvailSched, !- Availability Schedule Name
0.7, !- Fan Total Efficiency
125.0, !- Delta Pressure {Pa}
autosize, !- Max Flow Rate {m3/s}
0.0, !- Min Flow Rate {m3/s}
0.9, !- Motor Efficiency
1.0, !- Motor In Airstream Fraction
0.00153028, !- FanCoefficient 1
0.00520806, !- FanCoefficient 2
1.1086242, !- FanCoefficient 3
-.11635563, !- FanCoefficient 4
0.000, !- FanCoefficient 5
SPACE2-1 ATU In Node, !- Fan_Inlet_Node
SPACE2-1 Zone Coil AirIn Node; !- Fan_Outlet_Node
Schedule:Compact,
TurndownMinAirFlowSch, !- Name
Fraction, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays, !- Field 2
Until: 7:00,0.50, !- Field 3
Until: 17:00,0.75, !- Field 4
Until: 24:00,0.50, !- Field 5
For: SummerDesignDay WinterDesignDay, !- Field 6
Until: 24:00,1.0, !- Field 7
For: Weekends Holidays CustomDay1 CustomDay2, !- Field 8
Until: 24:00,0.25; !- Field 9
This output is the variable air volume flow fraction
required to meet the zone load. This is the average value over
the frequency being reported. The flow fraction is defined as
the terminal unit air mass flow rate divided by the terminal
unit’s maximum air mass flow rate.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
Variable air volume (VAV) systems typically control the
dry-bulb temperature inside a zone by varying the supply air
volume instead of the supply air temperature (ref:
AirTerminal:SingleDuct:VAV:NoReheat). Reheat coils may be
required to avoid overcooling (ref:
AirTerminal:SingleDuct:VAV:Reheat).
This terminal unit is slightly different from the AirTerminal:SingleDuct:VAV:Reheat
terminal unit. Both operate the same in cooling mode: the
damper opens as needed to provide additional sensible cooling
to the zone. The difference between the two is in heating
mode. For the Single Duct
VAV Reheat terminal unit, the air flow rate is reduced to the
minimum value (max air flow rate x zone minimum air flow
fraction) when zone heating is required and the reheat coil
output is modulated to meet the zone heating load. The zone
minimum supply air flow can be further adjusted using
scheduled fraction values specified in the field Minimum
Air Flow Turndown Schedule Name. For the AirTerminal:SingleDuct:VAV:HeatAndCool:Reheat
terminal unit, the air flow rate in heating mode is increased
to meet higher zone heating loads (similar to what is done in
cooling mode). If additional heat is required (beyond what the
terminal unit can provide with its damper fully open), then
the reheat coil is modulated as needed to meet the additional
heating load.
This terminal unit model was originally developed and
tested for use with the changeover-bypass VAV unitary
system.

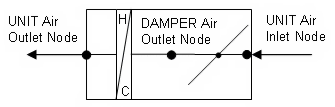

Single Duct VAV Heat and Cool
Reheat Schematic [fig:single-duct-vav-heat-and-cool-reheat]
This alpha field defines the name of the schedule (ref:
Schedule) that denotes whether or not this component is
available to operate during a given time period. A schedule
value greater than 0 (usually 1 is used) indicates that the
component can be on during the time period. A value less than
or equal to 0 (usually 0 is used) denotes that the component
must be off for the time period. If this field is blank, the
schedule has values of 1 for all time periods.
This alpha field defines the name of the air inlet node
that connects the air splitter to the individual zone ADU.
This is not the same as the air inlet node of the
reheat component: it is upstream of that node. This is the
inlet node to the terminal unit and the damper.
This numeric field defines the design maximum volumetric
flow rate (m\(^{3}\)/sec)
specified for this VAV ADU. This flow rate must be greater
than 0 or can be autosized.
This numeric field defines the minimum air volumetric flow
rate to the zone while the system is operating, specified as a
fraction of the maximum air flow rate. The minimum zone
fraction is normally specified to meet the minimum ventilation
requirement for the occupants. The reheat coil operates as
needed to maintain the heating set point specified in the Zone
Control:Thermostatic object. This value must be between 0 and
1.
This field is ignored for gas or electric reheat coils. If
using a hot water or steam reheat coil, set to the maximum
design water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or
steam heating coil. The steam volume flow rate is calculated
at 100C and 101325 Pa. This volumetric flow rate can be
autosized.
This field is ignored for gas and electric coils. Set to
the minimum design water or steam volumetric flow rate in
m\(^{3}\)/s for the hot water
or steam heating coil, normally set to be a shut-off valve
that is set to zero. The steam volume flow rate is calculated
at 100C and 101325 Pa.
The coil is controlled by knowing the zone demand
determined by the zone thermostat and setting the outlet
conditions to meet this demand. For the electric and gas
coils, this is set exactly since the coil model solution can
be inverted and this field is not used. With the hot water
coil that uses an effectiveness-NTU method, the solution
cannot be inverted directly. Therefore, to determine the
correct mass flow rate for the hot water the solution is
solved by iteration. The iterative solution uses an
interval-halving routine and needs a termination criterion
that is set with this Convergence Tolerance parameter. This
control offset is set to a decimal fraction of the zone
demand. The default value for this field is 0.001.
This is the upper limit on the temperature in degrees C of
the air leaving the terminal unit – reheat coil (and being
delivered to the zone). If the user leaves this field blank,
no maximum reheat air temperature is enforced.
Field:
Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Zone
Minimum Air Flow Fraction by multiplying it using this
schedule. Schedule values are fractions, 0.0 to 1.0. This
field adjusts the minimum airflow turndown value below the
zone design minimum air flow and is intended for use with
ASHRAE Standard 170. This field can also be used to adjust the
design minimum air flow sizing calculation by applying a
desired fraction values to summer and winter design days
turndown schedule. If this field is left blank, then the
turndown minimum air flow fraction value is set to 1 and uses
the fixed fraction specified in the field Zone
Minimum Air Flow Fraction.
An IDF example is provided below:
AirTerminal:SingleDuct:VAV:HeatAndCool:Reheat,
Zone 1 VAV System, !- Name of System
FanAndCoilAvailSched, !- System Availability schedule
Zone 1 Reheat Air Inlet Node, !- DAMPER Air Outlet Node
Zone 1 VAV Inlet Node, !- UNIT Air Inlet Node
0.583, !- Maximum air flow rate {m3/s}
0.25, !- Zone Minimum Air Flow Fraction
Coil:Heating:Electric, !- Reheat Component Object
Reheat Coil Zone 1, !- Name of Reheat Component
0.0, !- Max Reheat Water Flow {m3/s}
0.0, !- Min Reheat Water Flow {m3/s}
Zone 1 Reheat Air Outlet Node, !- UNIT Air Outlet Node
0.001; !- Convergence Tolerance
Coil:Heating:Electric,
Reheat Coil Zone 1, !- Coil Name
FanAndCoilAvailSched, !- Availability Schedule Name
1.0, !- Efficiency of the Coil
3000.0, !- Nominal Capacity of the Coil {W}
Zone 1 Reheat Air Inlet Node, !- Coil_Air_Inlet_Node
Zone 1 Reheat Air Outlet Node; !- Coil_Air_Outlet_Node
This output is the damper position required to meet the
zone load. This is the average value over the simulation
timestep being reported. The damper position is defined as the
terminal unit air mass flow rate divided by the terminal
unit’s maximum air mass flow rate.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
Variable air volume (VAV) systems control the dry-bulb
temperature inside a zone by varying the supply air volume
instead of the air temperature. At full cooling the VAV damper
is fully open supplying the specified maximum air flow rate.
As the cooling load decreases, the damper closes until it
reaches the minimum stop specified by the zone minimum air
flow fraction. The zone minimum supply air flow can be
adjusted using scheduled fraction values specified in the
field Minimum Air Flow Turndown Schedule Name.
VAV systems can be used for interior or perimeter zones
with a common fan system and air temperature control. The VAV
concept may vary according to the VAV box locations and air
temperature controls. Heating can be provided if necessary by
use of baseboard.
Schedule that this component will operate or is available
to operate. A schedule value greater than 0 (usually 1 is
used) indicates that the component can be on during the time
period. A value less than or equal to 0 (usually 0 is used)
denotes that the component must be off for the time period. If
this field is blank, the schedule has values of 1 for all time
periods.
This field is used to select how the program will determine
the minimum flow rate to the zone while the system is
operating. The minimum flow rate is modeled as a fraction of
the maximum flow rate. There are three choices for selecting
how the minimum flow rate is specified: Constant,
FixedFlowRate, and Scheduled. If Constant is entered, then
the program will use the value for the constant minimum air
flow fraction entered in the following field. If
FixedFlowRate is entered, then the program will use the value
for minimum flow rate entered in the field below called Fixed
Minimum Air Flow Rate. If Scheduled is entered, then the
program will obtain the value for minimum flow fraction from
the schedule named in the field below called Minimum Air Flow
Fraction Schedule Name. The default is Constant.
The minimum flow rate to the zone while the system is
operating, specified as a fraction of the maximum air flow
rate. The minimum zone fraction is normally specified to meet
the minimum ventilation requirement for the occupants. This
field is only used if the Zone
Minimum Air Flow Method field is set to Constant.
This field is autosizable and defaulted to autosize. If a
Sizing:SystemSystem Outdoor Air Method other than
Standard62.1SimplifiedProcedure is specified, the autosized
flow fraction is calculated using the maximum flow rate
derived from the design outdoor air flow (including VRP
adjustments) and the Sizing:Zone
input fields “Cooling Minimum Air Flow per Zone
Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum
Air Flow Fraction”. If there is no sizing calculation the
defaults of 0.000762 cubic meters per second per square meter
of zone floor area (0.15 cfm/ft2) and 0.2 are used. The
autosized flow fraction is calculated according to the ASHRAE
Standard 62.1 Simplified Procedure if the Sizing:System’s
“System Outdoor Air Method” associated with this terminal is
set to Standard62.1SimplifiedProcedure.
The minimum flow rate to the zone while the system is
operating, specified as a fixed minimum air flow rate in
meters cubed per second. The minimum air flow rate is normally
specified to meet the minimum ventilation requirement for the
occupants. This field is only used if the Zone
Minimum Air Flow Method field is set to FixedFlowRate.
This field is autosizable and defaulted to autosize. The
autosized flow rate is the maximum flow rate derived from the
design outdoor air flow (including VRP adjustments) and the Sizing:Zone
input fields “Cooling Minimum Air Flow per Zone
Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum
Air Flow Fraction”. If there is no sizing calculation the
defaults of 0.000762 cubic meters per second per square meter
of zone floor area (0.15 cfm/ft2) and 0.2 flow fraction are
used. The autosized flow rate is calculated according to the
ASHRAE Standard 62.1 Simplified Procedure if the
Sizing:System’s “System Outdoor Air Method” associated with
this terminal is set to Standard62.1SimplifiedProcedure.
Field:
Minimum Air Flow Fraction Schedule Name[LINK]
The name of a schedule that determines the value of the
minimum air flow fraction. The schedule should contain
fractions from 0.0 to 1.0. These values will define the
minimum flow rate to the zone while the system is operating,
specified as a fraction of the maximum air flow rate. This
field is only used if the Zone
Minimum Air Flow Method field is set to Scheduled.
Field:
Design Specification Outdoor Air Object Name[LINK]
This alpha field specifies the name of a DesignSpecification:OutdoorAir
or DesignSpecification:OutdoorAir:SpaceList
object. When this field is used, the terminal unit will
increase flow as needed to meet this outdoor air requirement.
If Outdoor Air Flow per Person is non-zero, then the outdoor
air requirement will be computed based on the current number
of occupants in the zone. At no time will the supply air flow
rate exceed the value for Maximum Air Flow Rate. If this field
is blank, then the terminal unit will not be controlled for
outdoor air flow. See documentation for the zone HVAC outdoor
air object for further information (Ref
DesignSpecification:OutdoorAir).
Field:
Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Constant Minimum Air Flow
Fraction, Fixed Minimum Air Flow Rate, or
Minimum Air Flow Fraction Schedule value by
multiplying it using this schedule. Schedule values are
fractions, 0.0 to 1.0. This field adjusts the minimum airflow
turndown value below the zone design minimum air flow and is
intended for use with ASHRAE Standard 170. This field can also
be used to adjust the design minimum air flow sizing
calculation by applying a desired fraction values to summer
and winter design days turndown schedule. If this field is
left blank, then the turndown minimum air flow fraction value
is set to 1.
An IDF example:
AirTerminal:SingleDuct:VAV:NoReheat,
Zone 1 VAV System, !- Name
FanAndCoilAvailSched, !- Availability Schedule Name
Zone 1 Reheat Air Outlet Node, !- Air Outlet Node Name
Zone 1 Damper Inlet Node, !- Air Inlet Node Name
0.47, !- Maximum Air Flow Rate {m3/s}
Constant, !- Zone Minimum Air Flow Input Method
0.3, !- Constant Minimum Air Flow Fraction
, !- Fixed Minimum Air Flow Rate
, !- Minimum Air Flow Fraction Schedule Name
ZoneOAData, !- Design Specification Outdoor Air Object Name
TurndownMinAirFlowSch; !- Minimum Air Flow Turndown Schedule Name
DesignSpecification:OutdoorAir,
ZoneOAData, !- Name
Sum, !- Outdoor Air Method
0.00236, !- Outdoor Air Flow per Person {m3/s}
0.00305, !- Outdoor Air Flow per Zone Floor Area {m3/s-m2}
, !- Outdoor Air Flow per Zone {m3/s}
, !- Outdoor Air Flow Air Changes per Hour
OARequirements Sched; !- Outdoor Air Flow Rate Fraction Schedule Name
Schedule:Compact,
OARequirements Sched, !- Name
Any Number, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays SummerDesignDay WinterDesignDay, !- Field 2
Until: 24:00, 1.0, !- Field 4
For: AllOtherDays, !- Field 5
Until: 24:00, 0.5; !- Field 7
Schedule:Compact,
TurndownMinAirFlowSch, !- Name
Fraction, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays, !- Field 2
Until: 7:00,0.50, !- Field 3
Until: 17:00,0.75, !- Field 4
Until: 24:00,0.50, !- Field 5
For: SummerDesignDay WinterDesignDay, !- Field 6
Until: 24:00,1.0, !- Field 7
For: Weekends Holidays CustomDay1 CustomDay2, !- Field 8
Until: 24:00,0.25; !- Field 9
This output is the damper position required to meet the
zone load. This is the average value over the simulation
timestep being reported. The damper position is defined as the
terminal unit air mass flow rate divided by the terminal
unit’s maximum air mass flow rate.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
Variable air volume (VAV) systems typically control the
dry-bulb temperature inside a zone by varying the supply air
volume instead of the supply air temperature (ref:
AirTerminal:SingleDuct:VAV:NoReheat). Reheat coils may be
required to avoid overcooling (ref:
AirTerminal:SingleDuct:VAV:Reheat).
This terminal unit is slightly different from the AirTerminal:SingleDuct:VAV:NoReheat
terminal unit. Both operate the same in cooling mode: the
damper opens as needed to provide additional sensible cooling
to the zone. The difference between the two is in heating
mode. For the Single Duct
VAV NoReheat terminal unit, the air flow rate is reduced to
the minimum value (max air flow rate x zone minimum air flow
fraction) when zone heating is required. The zone minimum
supply air flow can be further adjusted using scheduled
fraction values specified in the field Minimum Air Flow
Turndown Schedule Name. For the AirTerminal:SingleDuct:VAV:HeatAndCool:NoReheat
terminal unit, the air flow rate in heating mode is increased
to meet higher zone heating loads (similar to what is done in
cooling mode).
This terminal unit model was originally developed and
tested for use with the changeover-bypass VAV unitary system.
This object may be used when the central heating coil is
sufficient to maintain the heating set point temperature.
Additional heating may be provided, if necessary, by use of AirTerminal:SingleDuct:VAV:HeatAndCool:Reheat
or ZoneHVAC:Baseboard:* objects.

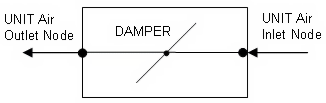

Single Duct VAV Heat and Cool
NoReheat Schematic [fig:single-duct-vav-heat-and-cool-noreheat]
This alpha field defines the name of the schedule (ref:
Schedule) that denotes whether or not this component is
available to operate during a given time period. If a schedule
value is greater than zero then the system is available to
operate; otherwise, the system is unavailable for that time
period. If this field is blank, the schedule has values of 1
for all time periods.
This numeric field defines the design maximum volume flow
rate (m\(^{3}\)/sec)
specified for this VAV ADU. This flow rate must be greater
than 0 or can be autosized.
This numeric field defines the minimum air volume flow rate
to the zone while the system is operating, specified as a
fraction of the maximum air flow rate. The minimum zone
fraction is normally specified to meet the minimum ventilation
requirement for the occupants. This value must be between 0
and 1.
Field:
Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Zone
Minimum Air Flow Fraction by multiplying it using this
schedule. Schedule values are fractions, 0.0 to 1.0. This
field adjusts the minimum airflow turndown value below the
zone design minimum air flow and is intended for use with
ASHRAE Standard 170. This field can also be used to adjust the
design minimum air flow sizing calculation by applying a
desired fraction values to summer and winter design days
turndown schedule. If this field is left blank, then the
turndown minimum air flow fraction value is set to 1 and uses
the fixed fraction specified in the field Zone
Minimum Air Flow Fraction.
An IDF example is provided below:
AirTerminal:SingleDuct:VAV:HeatAndCool:NoReheat,
Zone 3 VAV System, !- Name of System
FanAndCoilAvailSched, !- System Availability schedule
Zone 3 Reheat Air Outlet Node, !- UNIT Air Outlet Node
Zone 3 VAV Inlet Node, !- UNIT Air Inlet Node
0.584, !- Maximum air flow rate {m3/s}
0.25; !- Zone Minimum Air Flow Fraction
This output is the damper position required to meet the
zone load. This is the average value over the simulation
timestep being reported. The damper position is defined as the
terminal unit air mass flow rate divided by the terminal
unit’s maximum air mass flow rate.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
The series powered induction unit is an air system terminal
unit that mixes varying amounts of secondary (recirculated)
air and primary (conditioned supply) air to produce a fixed
flow of air to a zone. The unit contains a small fan that acts
to induce the secondary air and a heating coil for heating the
mixed secondary and primary air. The fan runs at a constant
volume flow rate whenever the unit is on (and the fan’s
availability schedule is on or it is activated by an
availability manager). The fan is downstream of the primary
and secondary air inlets. The variable mixing is accomplished
by a damper in the unit’s primary air supply inlet duct. This
damper can move from fully open (100% primary air. 0%
secondary air) to a minimum stop that is specified in the
input description. At full cooling the damper will be fully
open. At minimum cooling and for heating the damper will be at
the minimum stop and the secondary air flow will be at its
maximum. During night cycle operation, if the availability
manager status is CycleOnZoneFansOnly, then the fan will run
only if there is a heating load. If the status is CycleOn,
then the fan will run according to the normal controls.
The EnergyPlus model of the series PIU terminal unit is
composed of three components: a zone mixer, a constant volume
fan, and a heating coil (hot water, electric, or gas).

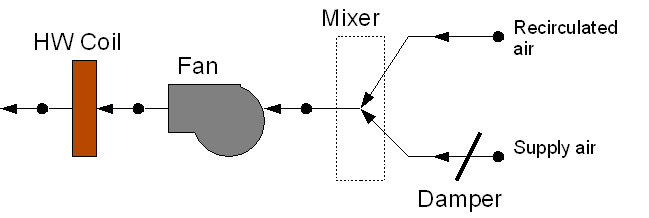

Series PIU Terminal Unit [fig:series-piu-terminal-unit]
Additional optional inputs and control methods are
available for modeling series fan-powered induction unit air
terminals that have a variable speed fan. When using a
variable speed fan, the air terminal is controlled to
represent how a modern programmable controller would operate,
but adapted for the context of long-timestep
predicted-zone-load EnergyPlus simulation rather than real
world fast-acting controls. Heating can be either staged or
modulated with different heating controls as diagrammed
below.

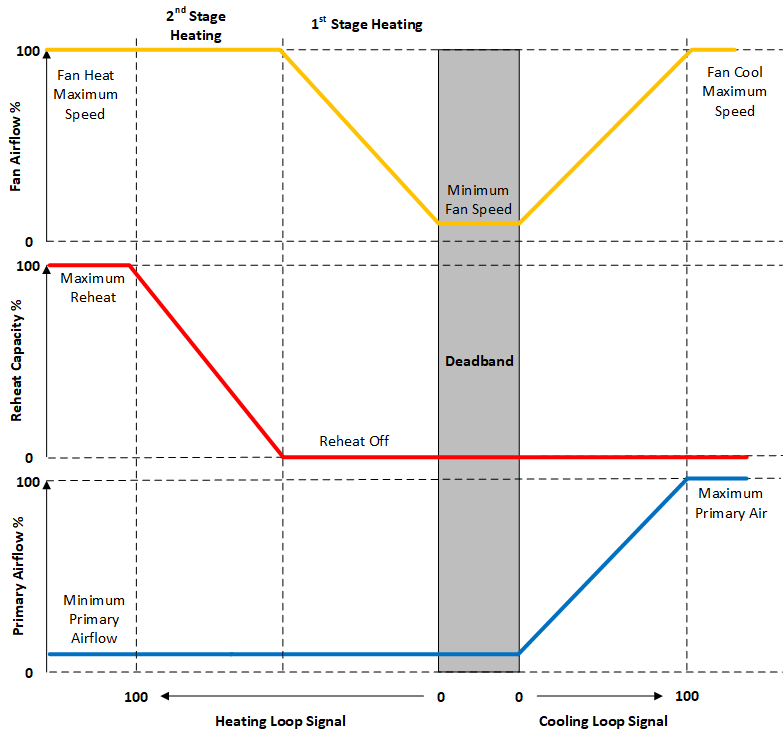

Variable Speed Fan with Staged
Heat Control [fig:series-piu-terminal-unit-VS-staged-heat]Variable Speed Fan with

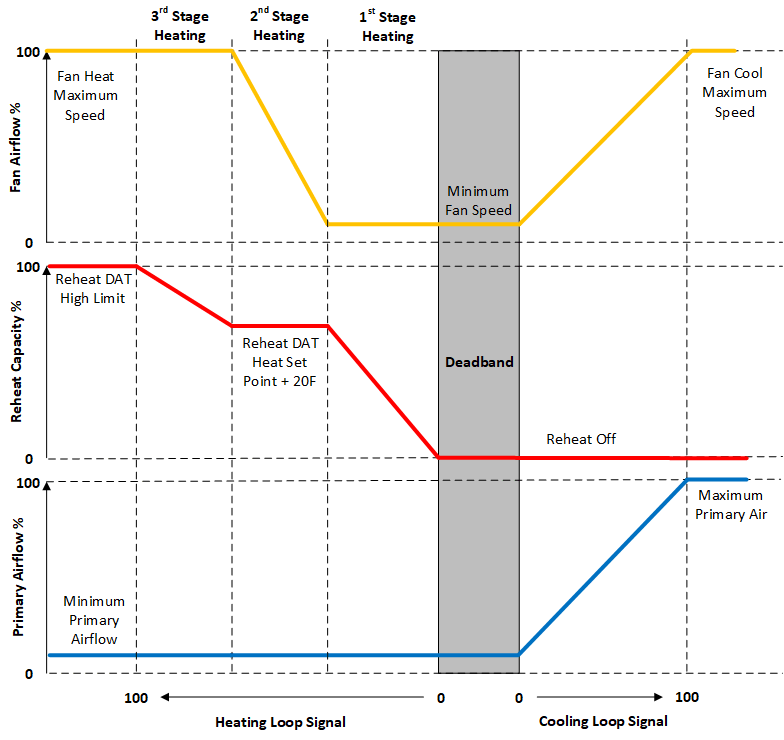

Modulated Heat Control [fig:series-piu-terminal-unit-VS-modulated-heat]
The name of the schedule (ref: Schedule) that denotes
whether the unit can run during a given time period. A
schedule value greater than 0 (usually 1 is used) indicates
that the unit can be on during the time period. A value less
than or equal to 0 (usually 0 is used) denotes that the unit
must be off for the time period. If this field is blank, the
schedule has values of 1 for all time periods.
The maximum volumetric air flow rate through the unit in
cubic meters per second. Since this is a constant air volume
unit, this is also the design, rated air flow rate of the
unit.
The maximum volumetric air flow rate of primary air through
the unit in cubic meters per second. This is the primary air
flow rate at full cooling load when the primary air damper is
fully open. Usually this quantity is the same as the total
unit flow rate, but it can be less.
The minimum volumetric air flow rate of primary air through
the unit expressed as a fraction of the maximum volumetric air
flow rate of primary air. This input can be 0.0. When set to
autosize and the Sizing:System’s System Outdoor Air
Method associated with this terminal is set to
Standard62.1SimplifiedProcedure, the autosized air flow
fraction is calculated according to the ASHRAE Standard 62.1
Simplified Procedure.
The name of the HVAC system node from which the unit draws
its secondary or recirculated air. The unit can draw secondary
air from its conditioned zone directly or from a return air
plenum. Thus this node should be one of the zones exhaust air
nodes (see Zone
Air Exhaust Node in ZoneHVAC:EquipmentConnections)
or an induced air node outlet of a return plenum (see
Induced Air Outlet Node in AirLoopHVAC:ReturnPlenum).
The name of a zone mixer component (object:
AirLoopHVAC:ZoneMixer) which composes part of the unit. Note
that some of the input for the mixer will duplicate input
fields of the powered induction unit. One of the zone mixer
inlet nodes should be the same as the supply air inlet node of
the PIU; the other inlet node of the zone mixer should be the
same as the secondary air inlet node of the PIU. The outlet
node of the zone mixer should be the same as the inlet node of
the PIU fan.
The name of a fan component which composes part of the
unit. Note that the fan’s maximum flow rate should be the same
as the maximum air flow rate of the PIU and the type of fan
object must be Fan:SystemModel
or Fan:ConstantVolume.
The fan’s inlet node should be the same as the zone mixer’s
outlet node. The fan’s outlet node should be the same as the
heating coil’s air inlet node. The secondary fan will run only
when the Availability Schedule specified in the fan object is
>0 or when it is overridden by an availability manager
(ref. AvailabilityManager:NightCycle
and others).
The name of the heating coil component which composes part
of the unit. Note that the heating coil’s air inlet node is
the same as the fan outlet node and the heating coil’s air
outlet node is the same as the PIU outlet node.
The maximum hot water volumetric flow rate in m\(^{3}\)/sec through the unit’s
heating coil. If the heating coil is gas or electric this
field should be blank.
The minimum hot water volumetric flow rate in m\(^{3}\)/sec through the unit’s
heating coil. If the heating coil is gas or electric this
field should be blank.
The control tolerance for the unit heating output. The unit
is controlled by matching the unit output to the zone demand.
For units with water coils, the model must be numerically
inverted to obtain a specified output. The convergence
tolerance is the error tolerance used to terminate the
numerical inversion procedure. Basically, this is the
fraction:
This field can be used to declare that a model for variable
speed fan should be used. There are two choices,
VariableSpeed or Constant.
Enter VariableSpeed to indicate that the air terminal should
operate with variable fan and emulate a modern controller. To
use VariableSpeed the fan type needs to be a Fan:SystemModel
and the named fan needs to be setup for variable flow. Enter
Constant to use the legacy model for constant fan
operation.
This field is used to determine the minimum fan speed as a
fraction when modeling variable speed fan. This ratio or
fraction is multiplied by the Maximum Air Flow
Rate to determine the minimum air flow rate while the
fan is operating.
This field is used to declare how the heating coil is to be
controlled. There are two choices, Staged or
Modulated, see the control diagrams
above.
Staged heat control has two stages. The first stage
increases the fan flow first while leaving the reheat coil
off. The second stage runs the fan at full speed and brings on
heating.
Modulated heat control has three stages and considers
discharge air temperature. The first stage of heating leaves
fan speed at the minimum and brings on heat until the design
discharge air temperature is reached. The second stage of
heating maintains the design discharge air temperature and
ramps up the fan speed. The third stage of heating runs at
full fan speed and allows the discharge air temperature to
exceed the design up until it reaches a high limit. When using
the Modulated heat control type the following two fields are
needed for input on the discharge air temperatures.
Field: Design Heating
Discharge Air Temperature[LINK]
This field is used to indicate the design discharge air
temperature during the second stage heating for
Modulated heat control. The default is 32.1
deg. C (90 deg. F).
Field: High Limit
Heating Discharge Air Temperature[LINK]
This field is used to indicate the high limit on discharge
air temperature at the end of stage three heating for
Modulated heat control. The default is 37.7
deg. C (100 deg. F).
An IDF example:
AirTerminal:SingleDuct:SeriesPIU:Reheat,
Zone 1 SPIU ATU, !- Name of air terminal unit
FanAndCoilAvailSched, !- Availability schedule for series PIU ATU
0.47, !- Total volume flow rate through ATU
0.47, !- Maximum primary air flow rate through terminal unit
0.3, !- Minimum primary air flow rate (fraction of max)
Zone 1 PIU Pri Air Inlet Node, !- Air Terminal unit supply air inlet node
Zone 1 PIU Sec Air Inlet Node, !- Air Terminal unit secondary air inlet node
Zone 1 PIU Air Outlet Node, !- Air Terminal unit outlet node
Zone 1 Reheat Air Inlet Node, !- Reheat coil air inlet node (fan outlet node)
Zone 1 PIU Mixer, !- Air terminal unit mixer name
Zone 1 PIU Fan, !- Air terminal unit fan name
COIL:Heating:Water, !- type of air terminal unit reheat coil
Reheat Coil Zone 1, !- name of air terminal unit reheat coil
0.0013, !- Max Reheat Water Flow {Flow: m3/sec}
0.0, !- Min Reheat Water Flow {Flow: m3/sec}
0.001; !- Convergence tolerance
HVAC,Average,Zone Air Terminal Primary Damper Position
[]
HVAC,Average,Zone Air Terminal Heating Rate
[W]
HVAC,Sum,Zone Air Terminal Heating Energy [J]
HVAC,Average,Zone Air Terminal Sensible Cooling Rate
[W]
HVAC,Sum,Zone Air Terminal Sensible Cooling Energy
[J]
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
HVAC,Average,Zone Air Terminal Total Air Mass Flow Rate
[kg/s]
HVAC,Average,Zone Air Terminal Primary Air Mass Flow
Rate [kg/s]
HVAC,Average,Zone Air Terminal Secondary Air Mass Flow
Rate [kg/s]
HVAC,Average,Zone Air Terminal Outlet Discharge Air
Temperature [C]
HVAC,Average,Zone Air Terminal Current Operation
Control Stage [ ]
Zone
Air Terminal Primary Damper Position [][LINK]
This output is the variable air volume primary damper
position required to meet the zone load. This is the average
value over the frequency being reported. The damper position
is defined as the terminal unit primary air mass flow rate
divided by the terminal unit’s maximum primary air mass flow
rate.
This field reports the dry air heating addition rate of the
series PIU terminal unit to the zone it is serving in Watts.
This is determined by outlet and zone air conditions and the
mass flow rate through the terminal unit.
This field reports the dry air heat addition of the series
PIU terminal unit to the zone it is serving in Joules over
the timestep being reported. This is determined by outlet and
zone air conditions, the mass flow rate through the terminal
unit, and the timestep.
This field reports the dry air sensible heat extraction
rate of the series PIU terminal unit from the zone it is
serving in Watts. This is determined by the outlet and zone
conditions and the mass flow rate through the terminal
unit.
Zone
Air Terminal Sensible Cooling Energy [J][LINK]
This field reports the dry air sensible heat extraction of
the series PIU terminal unit from the zone it is serving in
Joules over the timestep being reported. This is determined by
outlet and zone air conditions, the mass flow rate through the
terminal unit, and the timestep.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
Zone
Air Terminal Total Air Mass Flow Rate [kg/s][LINK]
This field reports the total air mass flow rate discharging
from the air terminal into the zone, in kg/s. The flow rate
will vary when modeling a variable speed fan.
Zone
Air Terminal Primary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal
from the primary node, typically a central air handling unit,
in kg/s. The flow will vary during cooling when using a
variable speed fan.
Zone
Air Terminal Secondary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal
from the secondary node, in kg/s. This air is typically
locally recirculated or induced air drawn from the return
plenum or directly from the zone. The flow rate will vary
during heating when using a variable speed fan.
Zone
Air Terminal Outlet Discharge Air Temperature [C][LINK]
This field reports the drybulb temperature of the air
leaving the terminal and discharging into the zone. When using
the Modulated heating control method, the air
terminal controls the discharge temperature with design and
high limit values.
Zone
Air Terminal Current Operation Control Stage[LINK]
This field reports the current control stage of a PIU
terminal. The controller diagrams above show the different
stages. This output helps to monitor what control stage the
air terminal is in at a given time. The output itself is an
integer value that is mapped to a stage in the following list.
Note that the frequency of reporting needs to be at the
highest level because averaging integers across more than one
system timestep makes them meaningless.
value = -1 => Not determined, should not occur,
please report to developers
value = 0 => The terminal is shut down, the system
is not available
value = 1 => Constant speed, cooling
value = 2 => Constant speed, heating
value = 3 => Deadband, no cooling, no
heating
value = 4 => Variable speed, first stage
cooling
value = 5 => Variable speed, second stage
cooling
value = 6 => Variable speed, staged, first stage
heating
value = 7 => Variable speed, staged, second stage
heating
value = 8 => Variable speed, modulated, first stage
heating
value = 9 => Variable speed, modulated, second stage
heating
value = 10 => Variable speed, modulated, third stage
heating
The parallel powered induction unit is an air system
terminal unit that mixes varying amounts of secondary
(recirculated) air and primary (conditioned supply) air to
produce a variable total flow of air to a zone. The unit
contains a small fan that acts to induce the secondary air and
a heating coil for heating the mixed secondary and primary
air. The secondary and primary air streams enter the unit in
parallel. The fan sits in the secondary air stream and runs
only when the primary air flow is below the Fan On Flow
Fraction and the fan’s availability schedule is on or it is
activated by an availability manager. The primary air inlet
contains a damper that can move from fully open (maximum
primary air) to a minimum stop (minimum primary air).
At full cooling load the primary air damper is fully open
and the fan is off. The primary air flow is at maximum and
there is little or no secondary air flow. As the cooling load
decreases, the primary air damper gradually closes and the
secondary air flow remains close to zero. At some point,
usually when the primary air flow has reached the minimum, the
fan switches on and secondary air is induced. The heating coil
will switch on as needed to meet any heating demand. The Fan
On Flow Fraction field controls the fan operation; see this
field description for more details.
The EnergyPlus model of the parallel PIU terminal unit is
composed of three components: a constant volume fan, a zone
mixer, and a heating coil (hot water, electric, or gas).

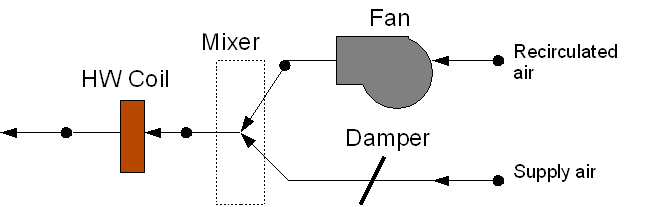

Parallel PIU Terminal Unit
[fig:parallel-piu-terminal-unit]
Additional optional inputs and control methods are
available for modeling parallel fan-powered induction unit air
terminals that have a variable speed fan. When using a
variable speed fan, the air terminal is controlled to
represent how a modern programmable controller would operate,
but adapted for the context of long-timestep
predicted-zone-load EnergyPlus simulation rather than real
world fast-acting controls. Heating can be either staged or
modulated with different heating controls as diagrammed
below.

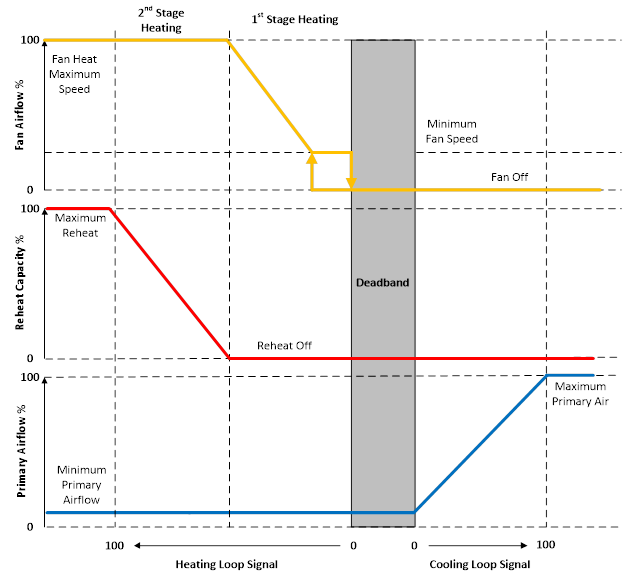

Variable Speed Fan with Staged
Heat Control [fig:parallel-piu-terminal-unit-VS-staged-heat]Variable Speed Fan with

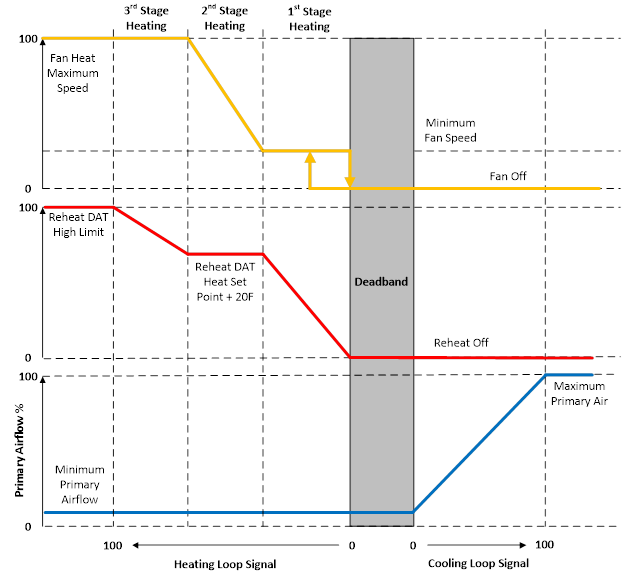

Modulated Heat Control [fig:parallel-piu-terminal-unit-VS-modulated-heat]
A unique user assigned name for a particular parallel
powered induction terminal unit. Any reference to this unit by
another object will use this name.
The name of the schedule (ref: Schedule) that denotes
whether the unit can run during a given time period. A
schedule value greater than 0 (usually 1 is used) indicates
that the unit can be on during the time period. A value less
than or equal to 0 (usually 0 is used) denotes that the unit
must be off for the time period. If this field is blank, the
schedule has values of 1 for all time periods.
The maximum volumetric air flow rate of primary air through
the unit in cubic meters per second. This is the primary air
flow rate at full cooling load when the primary air damper is
fully open.
The maximum volumetric air flow rate of secondary air
through the unit in cubic meters per second. This flow rate
can be any amount but is commonly less than the maximum
primary air flow rate.
The minimum volumetric air flow rate of primary air through
the unit expressed as a fraction of the maximum volumetric air
flow rate of primary air. This input can be 0.0. When set to
autosize and the Sizing:System’s System Outdoor Air
Method associated with this terminal is set to
Standard62.1SimplifiedProcedure, the autosized air flow
fraction is calculated according to the ASHRAE Standard 62.1
Simplified Procedure.
This is the fraction of the primary air flow at or below
which the secondary fan turns on. In the parallel PIU the fan
operation is intermittent. If the primary air flow is above
this fraction of the maximum, the fan is off unless reheat is
required. The fan will only operate if the Availability
Schedule specified in the Fan:ConstantVolume
object (see Fan Name below) is >0 or when it is overridden
by an availability manager (ref. AvailabilityManager:NightCycle
and others). If the availability manager status is
CycleOnZoneFansOnly, then the fan will run only if there is a
heating load. If the status is CycleOn, then the fan will run
according to the normal controls (low flow or reheat
required).
The name of the HVAC system node from which the unit draws
its secondary or recirculated air. The unit can draw secondary
air from its conditioned zone directly or from a return air
plenum. Thus this node should be one of the zones exhaust air
nodes (see Zone
Air Exhaust Node in ZoneHVAC:EquipmentConnections)
or an induced air node outlet of a return plenum (see
Induced Air Outlet Node in AirLoopHVAC:ReturnPlenum).
The name of an zone mixer component (object:
AirLoopHVAC:ZoneMixer) which composes part of the unit. Note
that some of the input for the mixer will duplicate input
fields of the powered induction unit. One of the zone mixer
inlet nodes should be the same as the supply air inlet node of
the PIU; the other inlet node of the zone mixer should be the
same as the air outlet node of the fan. The outlet node of the
zone mixer should be the same as the inlet node of the heating
coil.
The name of a fan component which composes part of the
unit. Note that the fan’s maximum flow rate should be the same
as the maximum secondary air flow rate of the PIU and the type
of fan object must be Fan:SystemModel
or Fan:ConstantVolume.
The fan’s inlet node should be the same as the PIU secondary
air inlet node. The fan’s outlet node should be the same as
one of the zone mixer’s inlet nodes. The secondary fan will
run only when the Availability Schedule specified in the Fan:ConstantVolume
object is >0 or when it is overridden by an availability
manager (ref. AvailabilityManager:NightCycle
and others). See description of fan controls under Fan On Flow
Fraction above.
The name of the heating coil component which composes part
of the unit. Note that the heating coil’s air inlet node is
the same as the zone mixer’s outlet node and the heating
coil’s air outlet node is the same as the PIU outlet node.
The maximum hot water or steam volumetric flow rate in
m\(^{3}\)/s through the
unit’s heating coil. The steam volumetric flow rate is
calculated at 100C and 101325 Pa. If the heating coil is gas
or electric this field should be blank.
The minimum hot water or steam volumetric flow rate in
m\(^{3}\)/s through the
unit’s heating coil. The steam volumetric flow rate is
calculated at 100C and 101325 Pa. If the heating coil is gas
or electric this field should be blank.
The control tolerance for the unit heating output. The unit
is controlled by matching the unit output to the zone demand.
For units with water coils, the model must be numerically
inverted to obtain a specified output. The convergence
tolerance is the error tolerance used to terminate the
numerical inversion procedure. Basically, this is the
fraction:
This field can be used to declare that a model for variable
speed fan should be used. There are two choices,
VariableSpeed or Constant.
Enter VariableSpeed to indicate that the air terminal should
operate with variable fan and emulate a modern controller. To
use VariableSpeed the fan type needs to be a Fan:SystemModel
and the named fan needs to be setup for variable flow. Enter
Constant to use the legacy model for constant fan
operation.
This field is used to determine the minimum fan speed as a
fraction when modeling variable speed fan. This ratio or
fraction is multiplied by the Maximum Air Flow
Rate to determine the minimum air flow rate while the
fan is operating.
This field is used to declare how the heating coil is to be
controlled. There are two choices, Staged or
Modulated, see the control diagrams
above.
Staged heat control has two stages. The first stage
increases the fan flow first while leaving the reheat coil
off. The second stage runs the fan at full speed and brings on
heating.
Modulated heat control has three stages and considers
discharge air temperature. The first stage of heating leaves
fan speed at the minimum and brings on heat until the design
discharge air temperature is reached. The second stage of
heating maintains the design discharge air temperature and
ramps up the fan speed. The third stage of heating runs at
full fan speed and allows the discharge air temperature to
exceed the design up until it reaches a high limit. When using
the Modulated heat control type the following two fields are
needed for input on the discharge air temperatures.
Field: Design
Heating Discharge Air Temperature[LINK]
This field is used to indicate the design discharge air
temperature during the second stage heating for
Modulated heat control. The default is 32.1
deg. C (90 deg. F).
Field: High Limit
Heating Discharge Air Temperature[LINK]
This field is used to indicate the high limit on discharge
air temperature at the end of stage three heating for
Modulated heat control. The default is 37.7
deg. C (100 deg. F).
An IDF example:
AirTerminal:SingleDuct:ParallelPIU:Reheat,
Zone 3 PPIU ATU, !- Name of air terminal unit
FanAndCoilAvailSched, !- Availability schedule for series PIU ATU
0.47, !- Maximum primary air flow rate through terminal unit
0.375, !- Maximum secondary air flow rate through the terminal unit
0.1, !- Minimum primary air flow rate (fraction of max)
0.1, !- fan on flow fraction
Zone 3 PIU Pri Air Inlet Node, !- Air Terminal unit supply air inlet node
Zone 3 PIU Sec Air Inlet Node, !- Air Terminal unit secondary air inlet node
Zone 3 PIU Air Outlet Node, !- Air Terminal unit outlet node
Zone 3 Reheat Air Inlet Node, !- Reheat coil air inlet node (fan outlet node)
Zone 3 PIU Mixer, !- Air terminal unit mixer name
Zone 3 PIU Fan, !- Air terminal unit fan name
Coil:Heating:Water, !- type of air terminal unit reheat coil
Reheat Coil Zone 3, !- name of air terminal unit reheat coil
0.0013, !- Max Reheat Water Flow {Flow: m3/sec}
0.0, !- Min Reheat Water Flow {Flow: m3/sec}
0.001; !- Convergence tolerance
HVAC,Average,Zone Air Terminal Primary Damper Position
[]
HVAC,Average,Zone Air Terminal Heating Rate
[W]
HVAC,Sum,Zone Air Terminal Heating Energy [J]
HVAC,Average,Zone Air Terminal Sensible Cooling Rate
[W]
HVAC,Sum,Zone Air Terminal Sensible Cooling Energy
[J]
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
HVAC,Average,Zone Air Terminal Total Air Mass Flow Rate
[kg/s]
HVAC,Average,Zone Air Terminal Primary Air Mass Flow
Rate [kg/s]
HVAC,Average,Zone Air Terminal Secondary Air Mass Flow
Rate [kg/s]
HVAC,Average,Zone Air Terminal Outlet Discharge Air
Temperature [C]
HVAC,Average,Zone Air Terminal Current Operation
Control Stage [ ]
Zone
Air Terminal Primary Damper Position [][LINK]
This output is the variable air volume primary damper
position required to meet the zone load. This is the average
value over the frequency being reported. The damper position
is defined as the terminal unit primary air mass flow rate
divided by the terminal unit’s maximum primary air mass flow
rate.
This field reports the dry air heating addition rate of the
parallel PIU terminal unit to the zone it is serving in Watts.
This is determined by outlet and zone air conditions and the
mass flow rate through the terminal unit.
This field reports the dry air heat addition of the
parallel PIU terminal unit to the zone it is serving in
Joules over the timestep being reported. This is determined by
outlet and zone air conditions, the mass flow rate through the
terminal unit, and the timestep.
This field reports the sensible heat extraction rate of the
parallel PIU terminal unit from the zone it is serving in
Watts. This is determined by the outlet and zone conditions
and the mass flow rate through the terminal unit.
Zone
Air Terminal Sensible Cooling Energy [J][LINK]
This field reports the dry air sensible heat extraction of
the parallel PIU terminal unit from the zone it is serving in
Joules over the timestep being reported. This is determined by
outlet and zone air conditions, the mass flow rate through the
terminal unit, and the timestep.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
Zone
Air Terminal Total Air Mass Flow Rate [kg/s][LINK]
This field reports the total air mass flow rate discharging
from the air terminal into the zone, in kg/s. The flow rate
will vary when modeling a variable speed fan.
Zone
Air Terminal Primary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal
from the primary node, typically a central air handling unit,
in kg/s. The flow will vary during cooling when using a
variable speed fan.
Zone
Air Terminal Secondary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal
from the secondary node, in kg/s. This air is typically
locally recirculated or induced air drawn from the return
plenum or directly from the zone. The flow rate will vary
during heating when using a variable speed fan.
Zone
Air Terminal Outlet Discharge Air Temperature [C][LINK]
This field reports the drybulb temperature of the air
leaving the terminal and discharging into the zone. When using
the Modulated heating control method, the air
terminal controls the discharge temperature with design and
high limit values.
Zone
Air Terminal Current Operation Control Stage[LINK]
This field reports the current control stage of a PIU
terminal. The controller diagrams above show the different
stages. This output helps to monitor what control stage the
air terminal is in at a given time. The output itself is an
integer value that is mapped to a stage in the following list.
Note that the frequency of reporting needs to be at the
highest level because averaging integers across more than one
system timestep makes them meaningless.
value = -1 => Not determined, should not occur,
please report to developers
value = 0 => The terminal is shut down, the system
is not available
value = 1 => Constant speed, cooling
value = 2 => Constant speed, heating
value = 3 => Deadband, no cooling, no
heating
value = 4 => Variable speed, first stage
cooling
value = 5 => Variable speed, second stage
cooling
value = 6 => Variable speed, staged, first stage
heating
value = 7 => Variable speed, staged, second stage
heating
value = 8 => Variable speed, modulated, first stage
heating
value = 9 => Variable speed, modulated, second stage
heating
value = 10 => Variable speed, modulated, third stage
heating
The four pipe induction terminal unit provides local hot
water heating or chilled water cooling of induced zone air
which then mixes with centrally conditioned supply air. An air
conditioning system consisting of these terminal units is
effectively a mixed central air / local hydronic system. The
centrally conditioned air supplied to the induction terminal
units is constant volume at quite high pressure. The central
air is discharged through a nozzle in the terminal unit,
inducing a flow of room air over a hydronic heating/cooling
coil. The coil is connected either to a single inlet and
outlet pipe (2 pipe unit) or to 2 inlets and 2 outlets (4 pipe
unit). The heated or cooled induced air mixes with the
centrally conditioned air before being discharged into the
zone. The terminal units are usually expected to do only
sensible cooling – any dehumidification is done by the central
air conditioning system.
The EnergyPlus model of the four pipe induction terminal
unit is a compound component consisting of a hot water heating
coil, a chilled water cooling coil, and an air mixer. The unit
has two inlet air streams: the centrally conditioned supply
air and the induced air from the zone. The induced air passes
first through the heating coil, then through the cooling coil
and finally through the mixer. The central supply air goes
directly into the mixer. The water flow through the hot or
cold water coil is varied to meet the zone air conditioning
requirement. Note that EnergyPlus models the four pipe
induction terminal unit as having separate heating and cooling
coils whereas real units have only a single coil used for both
heating and cooling. Note also that the four pipe induction
unit model can be used to model a two pipe unit by simply
adjusting the heating and cooling coil schedules so that the
heating coil is off when the cooling coil is on and vice
versa.
The name of the schedule (ref: Schedule) that denotes
whether the unit can run during a given time period. A
schedule value greater than 0 (usually 1 is used) indicates
that the unit can be on during the time period. A value less
than or equal to 0 (usually 0 is used) denotes that the unit
must be off for the time period. If this field is blank, the
schedule has values of 1 for all time periods.
The maximum volumetric air flow rate discharged from the
unit in cubic meters per second. Since this is a constant air
volume unit, this is also the design, rated air flow rate of
the unit. Note that this is the total discharge flow rate –
including both central supply and induced air.
The ratio of induced air flow rate to primary supply air
flow rate. The default is 2.5 the supply air induces zone air
flow at 2.5 times the primary supply air flow rate.
The name of the HVAC system node from which the unit draws
its secondary or recirculated air. This should be the same
node as one of the zone exhaust nodes.
The name of the heating coil component which composes part
of the unit. Note that the heating coil’s air inlet node is
the same as the terminal unit’s induced air inlet node. The
heating coil’s air outlet node is the same as the cooling
coil’s air inlet node.
The control tolerance for the unit heating output. The unit
is controlled by matching the unit output to the zone demand.
The model must be numerically inverted to obtain a specified
output. The convergence tolerance is the error tolerance used
to terminate the numerical inversion procedure. Basically,
this is the fraction:
The name of the cooling coil component which composes part
of the unit. Note that the cooling coil’s air inlet node is
the same as the heating coil’s air outlet node. The cooling
coil’s air outlet node is the same as one of the zone mixer’s
inlets.
The control tolerance for the unit cooling output. The unit
is controlled by matching the unit output to the zone demand.
The model must be numerically inverted to obtain a specified
output. The convergence tolerance is the error tolerance used
to terminate the numerical inversion procedure. Basically,
this is the fraction:
The name of an zone mixer component (object:
AirLoopHVAC:ZoneMixer) which composes part of the terminal
unit. Note that some of the zone mixer’s inputs will duplicate
some of the terminal unit’s inputs. One of the zone mixer
inlet nodes should be the same as the supply air inlet node of
the terminal unit; the other inlet node of the zone mixer
should be the same as the cooling coil air outlet node. The
outlet node of the zone mixer should be the same as the outlet
node of the terminal unit.
An IDF example:
AirTerminal:SingleDuct:ConstantVolume:FourPipeInduction,
SPACE2-1 FPIU, !- Name of System
ReheatCoilAvailSched, !- System Availability schedule
autosize, !- Maximum total air volume flow rate
1.0, !- Induction ratio
SPACE2-1 ATU Supply Node, !- Terminal unit supply air inlet node
SPACE2-1 ATU Induc Node, !- Terminal unit induced air inlet node
SPACE2-1 In Node, !- Terminal unit air outlet node
COIL:Heating:Water, !- Heating coil object
SPACE2-1 HW Coil, !- Heating coil name
autosize, !- Max hot water flow
0.0, !- Min hot water flow
0.001, !- Heating Convergence Tolerance
COIL:Cooling:Water, !- Cooling coil object
SPACE2-1 CW Coil, !- Cooling coil name
autosize, !- Max cold water flow
0.0, !- Min cold water flow
0.001, !- Cooling Convergence Tolerance
SPACE2-1 ATU Mixer; !- Zone mixer component name
COIL:Heating:Water,
SPACE2-1 HW Coil, !- Coil Name
ReheatCoilAvailSched, !- Availability Schedule Name
autosize, !- UA of the Coil {W/K}
autosize, !- Max Water Flow Rate of Coil {m3/s}
SPACE2-1 HW Coil Water In Node, !- Coil_Water_Inlet_Node
SPACE2-1 HW Coil Water Out Node, !- Coil_Water_Outlet_Node
SPACE2-1 ATU Induc Node, !- Coil_Air_Inlet_Node
SPACE2-1 HW Coil Air Out Node; !- Coil_Air_Outlet_Node
COIL:Cooling:Water,
SPACE2-1 CW Coil, !- Coil Name
CWCoilAvailSched, !- Availability Schedule
autosize, !- UA of the Coil
autosize, !- Max Water Flow Rate of Coil
, !- Leaving Relative Humidity of Coil
SPACE2-1 CW Coil Water In Node, !- Coil_Water_Inlet_Node
SPACE2-1 CW Coil Water Out Node, !- Coil_Water_Outlet_Node
SPACE2-1 HW Coil Air Out Node, !- Coil_Air_Inlet_Node
SPACE2-1 CW Coil Air Out Node; !- Coil_Air_Outlet_Node
AirLoopHVAC:ZoneMixer,
SPACE2-1 ATU Mixer, !- Mixer Name
SPACE2-1 In Node, !- Outlet_Node
SPACE2-1 ATU Supply Node, !- Inlet_Node_1
SPACE2-1 CW Coil Air Out Node; !- Inlet_Node_2
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
The four-pipe beam air terminal system is a mixed
air-hydronic system. A central, single-duct forced-air system
that supplies conditioned air to the zones. Chilled water
circulates through ceiling-mounted fin-tube convector units to
provide sensible cooling. Hot water circulates through the
same convectors to provide heating. Water flow rate through
the beam unit is varied to meet the zone sensible cooling or
heating load. Any dehumidification is done by the central
forced-air system. Thermodynamically, the cooled beam system
resembles the four-pipe induction unit (AirTerminal:SingleDuct:ConstantVolume:FourPipeInduction).
To model a typical four-pipe beam system the user will need
to define a conventional central constant volume forced air
system in order to deliver primary air to the beam. This
central system (usually) provides outside air for ventilation.
Primary air is normally delivered at a fixed temperature but
could be reset by a schedule or using an outdoor air reset
setpoint manager. On the supply side of this air loop there
will be the usual central conditioning equipment: outside air
mixer, fan, heating and cooling coil. On the zone equipment
(demand) side of the loop, the four-pipe beams will be
represented as air terminal units. Because the four-pipe beam
can provide heating the system can avoid over-cooling zones
during times of low load with cool primary air temperatures,
similar to the action of a reheat coil in a VAV terminal.
Therefore, it is not necessary to have additional zone
equipment (such as baseboard heaters) to handle heating (or
reheating) loads.
Although the four-pipe beam equipment in a zone is treated
by the program as a single terminal unit, the actual
installation will often have multiple beam units in each zone.
In this model, it is only the total length of all the beams
and the total air flow of all the units that are described,
not the number of individual beam units.
If needed, the program (in its sizing calculation for the
system) determines the total length of beams and primary
supply air flow that is needed to meet the zone design loads.
The four pipe beam air terminal sizing differs from other air
terminals in that the primary supply air flow rate is sized
using the entire performance model and the flow rate is not
the direct result from the Sizing:Zone
and Sizing:System
calculations. The flow rates will be somewhere between what an
air terminal would size out using
VentilationRequirement or Sensible in the Sizing:System
object (either setting can be used).
The model includes two different types of inputs for flow
rates, “design” and “rated … per-meter.” The design values are
the actual sizes of the flow rates as viewed from the zone and
central air handler (but before zone multipliers). The design
values include all the individual beam units and their
lengths. The rated per-meter values are used to characterize
product performance at nominal rating conditions in such a way
that it can be scaled to match the size of a zone. The
performance characteristics at the rating point are not fixed
in the program and can be entered by the user when they differ
from default values. The rated per meter values are normalized
by the linear dimensions of the beam and are generally
obtained from product catalog data by dividing by the length
of the beam. The rated primary air flow rate is assumed to be
for sea level conditions while the design primary air flow
rate is modeled for the location elevation above sea
level.
A unique user-assigned name for a particular beam unit. Any
reference to this unit by another object will use this
name.
Field:
Primary Air Availability Schedule Name[LINK]
The name of the schedule that denotes whether the terminal
unit is operating to provide primary air during a given time
period. A schedule value greater than 0 (usually 1 is used)
indicates that the unit is on and requesting primary air flow
during the time period. A value less than or equal to 0
(usually 0 is used) denotes that the unit must be off for the
time period. If this field is blank, the schedule has values
of 1 for all time periods.
The name of the schedule that denotes whether the terminal
unit is operating to provide cooling during a given time
period. A schedule value greater than 0 (usually 1 is used)
indicates that the unit is on and available for beam cooling
during the time period. A value less than or equal to 0
(usually 0 is used) denotes that the unit must be off for the
time period. If this field is blank, the schedule has values
of 1 for all time periods. The primary air availability
schedule named in the previous input field must have a value
that is “on” during times that cooling is available.
The name of the schedule that denotes whether the terminal
unit can operate to provide heating during a given time
period. A schedule value greater than 0 (usually 1 is used)
indicates that the unit is on and available for beam heating
during the time period. A value less than or equal to 0
(usually 0 is used) denotes that the unit must be off for the
time period. If this field is blank, the schedule has values
of 1 for all time periods. The primary air availability
schedule named in the input field above must have a value that
is “on” during times that heating is available.
The name of the chilled water inlet node. If desired, the
chilled water node connections can be omitted and the model
will assume the intent is to model a two-pipe heating only
beam.
The total length of all the beams in the zone (m). The real
spaces may actually have a number of individual beam units of
a specific length and this is the length of individual beams
times the total number of beams in the thermal zone. It need
not be an even multiple of actual unit’s beam length but it
can be if desired. This field is autosizable.
Field:
Rated Primary Air Flow Rate per Beam Length (m3/s-m)[LINK]
This is the primary air volume flow rate at rating
conditions divided by the length of the beam, in m3/s-m. This
“catalog” value for volume flow rate input is converted to a
mass flow rate using standard air density at sea level. This
value will be used for sizing the design primary air volume
flow rate if the total beam length is not also autosized. The
default is 0.035 m3/s-m.
Field:
Beam Rated Cooling Capacity per Beam Length (W/m)[LINK]
This is the beam cooling capacity at rating conditions
divided by the length of the beam, in W/m. This is only the
cooling contributed by the chilled water circulating through
the convector and is separate from any cooling (or heating)
that may also be provided by the primary air. The default is
600 W/m.
Field:
Beam Rated Cooling Room Air Chilled Water Temperature
Difference (Delta C)[LINK]
This input defines the value of the temperature difference
between the room air and entering chilled water at the rating
point, in delta Celsius. This “catalog” input helps to define
the operating conditions that correspond with Rated Beam
Cooling Capacity per Meter. It is used to normalize the
independent variable in the input field called Beam Cooling
Capacity Temperature Difference Modification Factor Curve or
Table Name. The default is 10.0 delta C.
Field:
Beam Rated Chilled Water Volume Flow Rate per Beam Length
(m3/s-m)[LINK]
This input defines the value of the chilled water flow rate
per meter length of beam at the rating point, in m3/s-m. This
input helps to define the operating conditions that correspond
with Rated Beam Cooling Capacity per Meter. It is used to
normalize the independent variable in the input field called
Beam Cooling Capacity Chilled Water Flow Modification Factor
Curve or Table Name. The default is 0.00005 m3/s-m.
Field:
Beam Cooling Capacity Temperature Difference Modification
Factor Curve Name[LINK]
This field is the name of a curve or table object that
describes how the beam convector’s cooling capacity varies as
a function of the temperature difference between the zone air
and the entering chilled water. The single independent
variable is the ratio of the current simulation results for
the difference between the air and entering water and the
difference at the rating point. The result of the curve or
table is multiplied by the rated capacity to adjust the
cooling capacity.
Field:
Beam Cooling Capacity Air Flow Modification Factor Curve
Name[LINK]
This field is the name of a curve or table object that
describes how the beam convector’s cooling capacity varies as
a function of the primary air flow rate. The single
independent variable is the ratio of the current primary air
flow rate and the primary air flow rate at the rating point.
The result of the curve or table is multiplied by the rated
capacity to adjust the cooling capacity. The factor is useful
to adjust for a range of primary air flow rates that a given
product can accommodate. However, since this is a constant
volume air terminal, the modification does not typically vary
during the simulation and the range of independent variable
does not need to be all that broad in practice.
This field is the name of a curve or table object that
describes how the beam convector’s cooling capacity varies as
a function of the water flow rate. The single independent
variable is the ratio of the current fluid flow rate to the
fluid flow rate at the rating point. The result of the curve
or table is multiplied by the rated capacity to adjust the
cooling capacity. The model will adjust the chilled water flow
rate to vary cooling power to meet the zone load, so for
control purposes, the range of the independent variable must
include all the way down to zero flow, with zero capacity at
zero flow.
Field:
Beam Rated Heating Capacity per Beam Length (W/m)[LINK]
This is the beam heating capacity at rating conditions
divided by the length of the beam, in W/m. This is only the
heating contributed by the hot water circulating through the
convector and is separate from any heating (or cooling) that
may also be provided by the primary air. The default is 1.200
W/m.
Field:
Beam Rated Heating Room Air Hot Water Temperature Difference
(Delta C)[LINK]
This input defines the value of the temperature difference
between the entering hot water and the room air at the rating
point, in delta Celsius. This input helps to define the
operating conditions that correspond with Rated Beam Heating
Capacity per Meter. It is used to normalize the independent
variable in the input field called Beam Heating Capacity
Temperature Difference Modification Factor Curve or Table
Name. The default is 27.8 delta C.
Field:
Beam Rated Hot Water Volume Flow Rate per Beam Length
(m3/s-m)[LINK]
This input defines the value of the hot water flow rate per
meter length of beam at the rating point, in m3/s/m, or more
strictly m3/s-m. This input helps to define the operating
conditions that correspond with Rated Beam Heating Capacity
per Meter. It is used to normalize the independent variable in
the input field called Beam Heating Capacity Hot Water Flow
Modification Factor Curve or Table Name. The default is
0.00005 m3/s-m.
Field:
Beam Heating Capacity Temperature Difference Modification
Factor Curve Name[LINK]
This field is the name of a curve or table object that
describes how the beam convector’s heating capacity varies as
a function of the temperature difference between the entering
hot water and the zone air. The single independent variable is
the ratio of the current simulation results for the difference
between the water and air and the difference at the rating
point. The result of the curve or table is multiplied by the
rated capacity to adjust the heating capacity.
Field:
Beam Heating Capacity Air Flow Modification Factor Curve
Name[LINK]
This field is the name of a curve or table object that
describes how the beam convectors heating capacity varies as a
function of the primary air flow rate. The single independent
variable is the ratio of the current primary air flow rate and
the primary air flow rate at the rating point. The result of
the curve or table is multiplied by the rated capacity to
adjust the heating capacity. The factor is useful to adjust
for a range of primary air rates that a given product can
accommodate. However, since this is a constant volume air
terminal, the modification does not typically vary during the
simulation and the range of independent variable does not need
to be all that broad in practice.
Field:
Beam Heating Capacity Hot Water Flow Modification Factor Curve
Name[LINK]
This field is the name of a curve or table object that
describes how the beam convector’s heating capacity varies as
a function of the water flow rate. The single independent
variable is the ratio of the current fluid flow rate to the
fluid flow rate at the rating point. The result of the curve
or table is multiplied by the rated capacity to adjust the
heating capacity. The model will adjust the hot water flow
rate to vary heating power to meet the zone load, so for
control purposes, the range of the independent variable must
include all the way down to zero flow, with zero capacity at
zero flow.
An example input follows:
AirTerminal:SingleDuct:ConstantVolume:FourPipeBeam,
Zone One 4pipe Beam, !- Name
ALWAYS_ON, !- Primary Air Availability Schedule Name
ALWAYS_ON, !- Cooling Availability Schedule Name
ALWAYS_ON, !- Heating Availability Schedule Name
Zone One 4pipe Beam Inlet Node Name, !- Primary Air Inlet Node Name
Zone One 4pipe Beam Outlet Node Name, !- Primary Air Outlet Node Name
Zone One 4pipe Beam CW Inlet Node, !- Chilled Water Inlet Node Name
Zone One 4pipe Beam CW Outlet Node, !- Chilled Water Outlet Node Name
AUTOSIZE, !- Design Primary Air Volume Flow Rate
AUTOSIZE, !- Design Chilled Water Volume Flow Rate
AUTOSIZE, !- Design Hot Water Volume Flow Rate
AUTOSIZE, !- Zone Total Beam Length
0.036, !- Rated Primary Air Flow Rate per Beam Length
597, !- Rated Beam Cooling Capacity per Beam Length
10.0, !- Rated Cooling Room Air Chilled Water Temperature Difference
5.2E-5, !- Rated Chilled Water Volume Flow Rate per Beam Length
CapModFuncOfTempDiff, !- Beam Cooling Capacity Temperature Difference Modification Factor Curve or Table Name
CoolCapModFuncOfSAFlow, !- Beam Cooling Capacity Air Flow Modification Factor Curve or Table Name
CapModFuncOfWaterFlow, !- Beam Cooling Capacity Chilled Water Flow Modification Factor Curve or Table Name
1548, !- Rated Beam Heating Capacity per Beam Length
27.8, !- Rated Heating Room Air Hot Water Temperature Difference
5.2E-5, !- Rated Hot Water Volume Flow Rate per Beam Length
CapModFuncOfTempDiff, !- Beam Heating Capacity Temperature Difference Modification Factor Curve or Table Name
HeatCapModFuncOfSAFlow, !- Beam Heating Capacity Air Flow Modification Factor Curve or Table Name
CapModFuncOfWaterFlow; !- Beam Heating Capacity Hot Water Flow Modification Factor Curve or Table Name
Zone
Air Terminal Beam Sensible Cooling Rate [W][LINK]
Zone
Air Terminal Beam Sensible Cooling Energy [J][LINK]
These are the sensible cooling power and energy delivered
by the beams to the zone, exclusive of any cooling or heating
done by the primary air.
Zone
Air Terminal Beam Sensible Heating Rate [W][LINK]
Zone
Air Terminal Beam Sensible Heating Energy [J][LINK]
These are the sensible heating power and energy delivered
by the beams to the zone, exclusive of any cooling or heating
done by the primary air.
Zone
Air Terminal Primary Air Sensible Cooling Rate [W][LINK]
Sensible cooling by the primary air to the zone, exclusive
of any cooling or heating done by the beams.
Zone
Air Terminal Primary Air Sensible Cooling Energy [J][LINK]
Sensible cooling by the primary air to the zone, exclusive
of any cooling or heating done by the beams.
Zone
Air Terminal Primary Air Sensible Heating Rate [W][LINK]
Heating by the primary air to the zone, exclusive of any
cooling or heating done by the beams.
Zone
Air Terminal Primary Air Sensible Heating Energy [J][LINK]
Heating by the primary air to the zone, exclusive of any
cooling or heating done by the beams.
Zone Air
Terminal Primary Air Flow Rate [m3/s][LINK]
Air flow rate from the central air handler into the zone in
m3/s. Note that this does not include any of the secondary air
flow that is induced by the convector and nozzle action (the
model does not resolve secondary air flow rate and the result
are not available).
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
The Cooled Beam system is a mixed air-hydronic system. A
central, single-duct forced-air system supplies conditioned
ventilation air to the zones. Sensible cooling is done by
chilled water circulating through ceiling mounted cooled beam
units. Chilled water flow rate through the cooled beam units
is varied to meet the zone sensible cooling load. Any
dehumidification is done by the central ventilation air
system. Heating is usually accomplished with hot water
radiators. Thermodynamically, the cooled beam system resembles
the four-pipe induction unit.
To model a typical cooled beam system the user will need to
define a conventional central constant volume forced air
system. This system will normally be 100% outside air
delivered at a fixed supply temperature (which could be reset
by schedule or by outside air temperature). On the supply side
of this air loop there will be the usual central AC equipment:
outside air mixer, fan, heating and cooling coil. On the zone
equipment (demand) side of the loop, the chilled beams will be
represented as terminal units. Additional zone equipment (such
as baseboard heaters) will be needed to handle heating
loads.
Although the cooled beam equipment in a zone is treated by
the program as a single terminal unit, the actual installation
will have multiple beams in each zone. The program (in its
sizing calculation for the system) figures out how many beams
of what length are needed to meet the zone design load.
The name of the schedule (ref: Schedule) that denotes
whether the unit can run during a given time period. A
schedule value greater than 0 (usually 1 is used) indicates
that the unit can be on during the time period. A value less
than or equal to 0 (usually 0 is used) denotes that the unit
must be off for the time period. If this field is blank, the
schedule has values of 1 for all time periods.
Two types of units are modeled: Active or
Passive. In the active unit, primary air is supplied
through the beam, inducing some secondary zone air into
contact with the coil. This unit acts as an active convector.
The passive unit is simply a passive, finned convector.
Primary air is supplied through a normal diffuser.
The name of the HVAC system node from which the unit draws
its primary or supply air. Note that this field should be
specified for both types of unit, even though supply air does
not pass through the passive unit.
The name of the air node that connects this terminal unit
to the zone. The will be the same as one of the zone inlet
nodes. The name of this node must be entered even if the
actual beams are passive and is not actually supplying air to
the zone.
This is the air flow rate in cubic meters per second of the
supply air entering the zone. This input would normally be
autosized based on the ventilation requirement (see Zone
Sizing).
Field:
Maximum Total Chilled Water Volumetric Flow Rate[LINK]
The maximum chilled water flow rate (in cubic meters per
second) for the unit. This input would normally be autosized
based on the zone design load.
The number of individual cooled beam units in the zone.
Normally this unit would be autocalculated by the program
based upon the previous field and the nominal flow rate for a
single beam unit (set by the program to 0.07 kg/s).
The length of an individual beam in meters. Normally this
will be autocalculated by the program based upon the number of
beam units and the zone design sensible cooling load. 1 to 4
meters is a typical length range.
The nominal or design outlet water temperature in degrees
Celsius. The default is 17°C.
The following inputs are parameters used to
characterize the performance of the chilled beam units. Values
for a given unit can be obtained from the manufacturer. The
parameters are used in the following equations.
P\(_{beam}\) =
A·K·DT beam cooling
output per unit length W/m
K = a·DT\(^{n1}\)·vr\(^{n2}\)·w\(^{n3}\)
coil heat transfer coefficient W/(m\(^{2}\)K)
vr = (q\(_{in}\)/a\(_{0}\))·r\(_{air}\)
room air mass flow rate across coil kg/(m\(^{2}\)s)
q\(_{in}\) = K\(_{1}\)·DT\(^{n}\)+K\(_{in}\)·q\(_{pr}\) room
air volumetric flow rate across coil per
unit length m\(^{3}\)/(s-m)
DT is the room air –water temperature difference (average
water temperature is used) in degrees C.
w is the water velocity in m/s.
q\(_{pr}\) is the supply
air flow rate per unit length m\(^{3}\)/(s-m)
Surface area on the air side of the beam per unit beam
length. The units are square meters per meter. The default is
5.422. This is A in the above equations.
This is a\(_{0}\) in the
above equations. It is the free area of the coil in plan view
(for the air flow) per unit beam length. The units are square
meters per meter. The default is 0.171.
The water pipe inside diameter in meters. The default is
0.0145.
An example input is:
AirTerminal:SingleDuct:ConstantVolume:CooledBeam,
SPACE2-1 CB, !- Name
CWCoilAvailSched, !- Availability Schedule Name
Active, !- Cooled Beam Type
SPACE2-1 ATU Supply Node, !- Supply Air Inlet Node Name
SPACE2-1 In Node, !- Supply Air Outlet Node Name
SPACE2-1 CW Coil Water In Node, !- Chilled Water Inlet Node Name
SPACE2-1 CW Coil Water Out Node, !- Chilled Water Outlet Node Name
, !- Supply Air Volumetric Flow Rate
, !- Maximum Total Chilled Water Volumetric Flow Rate
, !- Number of Beams
, !- Beam Length
, !- Design Inlet Water Temperature
, !- Design Outlet Water temperature
, !- Coil Surface Area per Coil Length
, !- Model Parameter a
, !- Model Parameter n1
, !- Model Parameter n2
, !- Model Parameter n3
, !- Model Parameter a0
, !- Model Parameter K1
, !- Model Parameter n
, !- Coefficient of Induction Kin
; !- Leaving Pipe Inside Diameter
HVAC,Sum,Zone Air Terminal Beam Sensible Cooling Energy
[J]
HVAC,Average,Zone Air Terminal Beam Sensible Cooling
Rate [W]
HVAC,Sum, Zone
Air Terminal Supply Air Sensible Cooling Energy [J]
HVAC,Average,Zone Air Terminal Supply Air Sensible
Cooling Rate [W]
HVAC,Sum,Zone Air Terminal Supply Air Sensible Heating
Energy [J]
HVAC,Average,Zone Air Terminal Supply Air Sensible
Heating Rate [W]
HVAC,Sum,Zone Air Terminal Beam Chilled Water Energy
[J]
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
Zone
Air Terminal Beam Sensible Cooling Rate [W][LINK]
Sensible cooling by the beams in the zone, exclusive of any
cooling or heating done by the supply air.
Zone
Air Terminal Beam Sensible Cooling Energy [J][LINK]
Sensible cooling by the beams in the zone, exclusive of any
cooling or heating done by the supply air.
Zone
Air Terminal Supply Air Sensible Cooling Rate [W][LINK]
Sensible cooling by the supply air to the zone, exclusive
of any cooling done by the beams.
Zone
Air Terminal Supply Air Sensible Cooling Energy [J][LINK]
Sensible cooling by the supply air to the zone, exclusive
of any cooling done by the beams.
Zone
Air Terminal Supply Air Sensible Heating Rate [W][LINK]
Heating by the supply air to the zone, exclusive of any
cooling done by the beams.
Zone
Air Terminal Supply Air Sensible Heating Energy [J][LINK]
Heating by the supply air to the zone, exclusive of any
cooling done by the beams.
Zone
Air Terminal Beam Chilled Water Energy [J][LINK]
The heat transfer energy for the chilled water serving the
beams, in Joules.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outside air system.
The air terminal mixer provides a means of supplying
central system air either to air inlet or supply side of a
ZoneHVAC equipment such as a four pipe fan coil. Normally the
central air would be ventilation air from a dedicated outside
air system (DOAS).
This terminal mixer object mixes conditioned outdoor air
(primary air) from DOAS air loop and recirculating (secondary
air) and deliver it either to inlet or supply side of a local
ZoneHVAC equipment. The terminal mixer can be connected either
to the inlet or supply side of the local ZoneHVAC equipment
and the connection type is specified in the input field
Mixer Connection Type. If the AirTerminal:SingleDuct:Mixer
object is connected to the supply side, a mix of conditioned
outdoor air from a central dedicated outdoor air system (DOAS)
with conditioned recirculation air from the local ZoneHVAC
equipment is supplied as a single stream to the conditioned
zone at its inlet node. If the AirTerminal:SingleDuct:Mixer
object is connected to the inlet side, a mix of outdoor air
from the a central dedicated outdoor air system (DOAS) with
un-conditioned recirculation air from a zone exhaust node is
supplied to the ZoneHVAC equipment inlet node. The mixer model
will sum the two air streams and average the air properties.
The AirTerminal:SingleDuct:Mixer
is used with:
The AirLoopHVAC:UnitarySystem
object must be specified as a ZoneHVAC equipment. Since the
ZoneHVAC equipment gets the outdoor air or ventilation air
from central dedicated OA system, the design outdoor air flow
rate input fields in the ZoneHVAC equipment are set to zero
and the OutdoorAir:Mixer
object type and object name input fields are left blank.

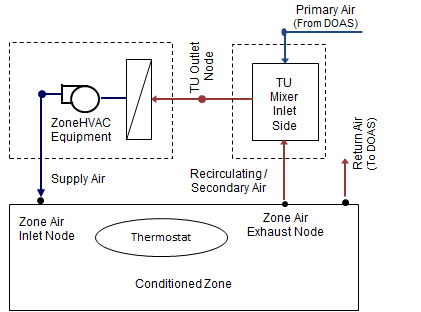

Inlet Side Mixer Air Terminal
Unit with ZoneHVAC Equipment [fig:inlet-side-mixer-air-terminal-unit-with-ZoneHVAC-equipment]Supply Side Mixer Air Terminal

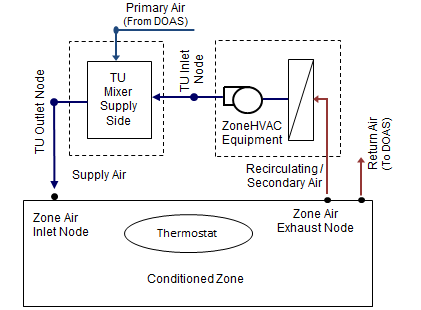

Unit with ZoneHVAC equipment [fig:supply-side-mixer-air-terminal-unit-with-ZoneHVAC-equipment]
The outlet air node name of the mixer. This will be an
inlet air node name of the conditioned zone if the connection
type specified in the input field Mixer Connection
Type below is SupplySide, or else this
will be the inlet air node name of the ZoneHVAC equipment if
the connection type in the input field Mixer Connection
Type below is InletSide.
The primary air (treated outdoor air) inlet node name of
the mixer. This will be the outlet air node name of an AirLoopHVAC:ZoneSplitter
or AirLoopHVAC:SupplyPlenum,
providing the connection to the DOAS system.
The secondary air (recirculating air) inlet node name of
the mixer. This will be the outlet air node name of the
ZoneHVAC equipment if the connection type in the input field
Mixer Connection Type below is
SupplySide, or else this will be either an
exhaust air node name of the conditioned zone (Ref. ZoneHVAC:EquipmentConnections
to draw air from a zone directly or an induced air outlet node
(Ref. AirLoopHVAC:ReturnPlenum) to draw air from a return
plenum when the zone return node is connected to a return
plenum. The induced air outlet node will be the outlet air
node name when the mixer connection type is SupplySide. If the
mixer connection type is InletSide, then the induced air
outlet node will be the mixer secondary air inlet node.
This input field allows user to specify the mixer
connection type. Valid choices are InletSide
or SupplySide. This is a required input
field. If the mixer connection type selected is
InletSide, then the mixer is connected on the
inlet side of the ZoneHVAC equipment, or else if the mixer
connection type selected is SupplySide, then
the mixer is connected at the outlet side of the ZoneHVAC
equipment.
Field: Design Specification
Outdoor Air Object Name[LINK]
This field allows modifying the behavior of this air
terminal so that it is modulated to supply the required
outdoor air to the zone. This field is optional. When the name
of an DesignSpecification:OutdoorAir
or DesignSpecification:OutdoorAir:SpaceList
object is entered, the model is changed to adjust the flow
rate to provide the volume of outdoor air described by that
object. This feature allows modeling demand controlled
ventilation on a zone-by-zone basis using the Outdoor Air Flow
per Person rate (specified in the DesignSpecification:OutdoorAir
object) and the number of occupants (specified in the People
object schedules). If the outdoor air fraction of the supply
air is 1.0, as for a dedicated outdoor air system, the air
flow rate will match the outdoor air requirement. When the
outdoor air fraction is less than 1.0, as for a recirculating
air system, the terminal air flow will be modulated upward to
account for the increased total air flow needed to provide the
required flow rate of outdoor air. The total air flow rate
will not exceed the Maximum Air Flow Rate specified above. The
volume flow rate is converted to mass flow rate using the
standard density of air at Pressure = 101325 Pa, Temperature =
20C, and Humidity Ratio = 0.0.
This field specifies how the outdoor air ventilation rates
are calculated when based on a rate per person. It can be
either based on the current number of people as affected by
time-varying occupancy schedules, or on the constant value for
the maximum number of people. Enter the key CurrentOccupancy
for the former and DesignOccupancy for the later.
An IDF examples for InletSide and SupplySide connection
type:
AirTerminal:SingleDuct:Mixer,
SPACE2-1 DOAS Air Terminal, !- Name
ZoneHVAC:FourPipeFanCoil, !- ZoneHVAC Unit Object Type
SPACE2-1 Fan Coil, !- ZoneHVAC Unit Object Name
SPACE2-1 Fan Coil Inlet, !- Mixer Outlet Node Name
SPACE2-1 ATM Primary Inlet, !- Mixer Primary Air Inlet Node Name
SPACE2-1 ATM Secondary Inlet, !- Mixer Secondary Air Inlet Node Name
InletSide; !- Mixer Connection Type
AirTerminal:SingleDuct:Mixer,
SPACE1-1 DOAS Air Terminal, !- Name
ZoneHVAC:FourPipeFanCoil, !- ZoneHVAC Unit Object Type
SPACE1-1 Fan Coil, !- ZoneHVAC Unit Object Name
SPACE1-1 Supply Inlet, !- Mixer Outlet Node Name
SPACE1-1 ATM Primary Inlet, !- Mixer Primary Air Inlet Node Name
SPACE1-1 Fan Coil Outlet, !- Mixer Secondary Air Inlet Node Name
SupplySide; !- Mixer Connection Type
The AirTerminal:DualDuct:ConstantVolume
simulation or the typical Multizone is described by this Air
Distribution Unit (ADU). Multizone systems condition all the
air in a central apparatus and distribute it to the
conditioned zones through two parallel ducts. One duct carries
cold air and the other warm air, providing air sources for
both heating and cooling at all times. In each conditioned
zone, a mixing valve responsive to a room thermostat mixes the
warm and cold air in proper proportions to satisfy the
prevailing heating or cooling load of the space. The Multizone
ADU is the specific component that leads to the zone
containing the mixer and the mixing damper and then connecting
to the zone. The total airflow to each room is kept constant
while the proportion of hot air to cold air is adjusted to
maintain the temperature in each zone at the desired
level.
Schedule that this component will operate or is available
to operate for a given time period. A schedule value greater
than 0 (usually 1 is used) indicates that the component can be
on during the time period. A value less than or equal to 0
(usually 0 is used) denotes that the component must be off for
the time period. If this field is blank, the schedule has
values of 1 for all time periods.
The design constant volume flow rate (m\(^{3}\)/sec) specified for that
Multizone ADU.
An IDF example:
AirTerminal:DualDuct:ConstantVolume,
Zone2MixDamp, !- Name
FanAndCoilAvailSched, !- Availability Schedule
Zone 2 Dual Duct Outlet, !- Unit Air Outlet Node
Zone 2 Dual Duct Hot Inlet, !- Unit Hot Air Inlet Node
Zone 2 Dual Duct Cold Inlet,!- Unit Cold Air Inlet Node
0.36; !- Max Air Flow Rate {m3/s}
HVAC,Average,Zone Air Terminal Cold Supply Duct
Damper Position []
HVAC,Average,Zone Air Terminal Hot Supply Duct
Damper Position []
Zone
Air Terminal Cold Supply Duct Damper Position[LINK]
This output is the damper position of the cold air stream
in a dual duct air terminal. This is the average value over
the frequency being reported. The damper position is defined
as the terminal unit cold air mass flow rate divided by the
terminal unit’s maximum cold air mass flow rate. This output
is dimensionless and ranges from 0.0 to 1.0.
Zone
Air Terminal Hot Supply Duct Damper Position[LINK]
This output is the damper position of the hot air stream in
a dual duct air terminal. This is the average value over the
frequency being reported. The damper position is defined as
the terminal unit hot air mass flow rate divided by the
terminal unit’s maximum hot air mass flow rate. This output is
dimensionless and ranges from 0.0 to 1.0.
AirTerminal:DualDuct:VAV
(i.e., Dual duct variable air volume (DDVAV)) systems are used
to obtain zone temperature control by mixing the cold and warm
air in various volume combinations. The fan is sized for the
anticipated maximum coincident hot or cold volume, not the sum
of the instantaneous peaks. This system has an advantage of a
true single path VAV system, except for warm port leakage.
When cold air is modulated for control before mixing, it
operates similar to the VAV induction when mixing occurs
without hot deck reheat. It is similar to a reheat system when
mixing occurs while the hot deck is using the reheat coil. It
uses more energy than a true VAV system, but less than a
constant volume dual duct system.
The zone minimum supply air flow can be further adjusted
using scheduled fraction values specified in the field
Minimum Air Flow Turndown Schedule Name.
Schedule that this component will operate or is available
to operate for a given time period. A schedule value greater
than 0 (usually 1 is used) indicates that the component can be
on during the time period. A value less than or equal to 0
(usually 0 is used) denotes that the component must be off for
the time period. If this field is blank, the schedule has
values of 1 for all time periods.
The minimum flow rate to the zone while the system is
operating, specified as a fraction of the Max Damper Air Flow
Rate. The minimum zone fraction is normally specified to meet
the minimum ventilation requirement for the occupants.
Field:
Design Specification Outdoor Air Object Name[LINK]
This alpha field specifies the name of a DesignSpecification:OutdoorAir
or DesignSpecification:OutdoorAir:SpaceList
object. When this field is used, the terminal unit will
increase flow as needed to meet this outdoor air requirement.
If Outdoor Air Flow per Person is non-zero, then the outdoor
air requirement will be computed based on the current number
of occupants in the zone. At no time will the supply air flow
rate exceed the value for Maximum Air Flow Rate. If this field
is blank, then the terminal unit will not be controlled for
outdoor air flow. See documentation for the zone HVAC outdoor
air object for further information (Ref
DesignSpecification:OutdoorAir).
Field:
Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts Zone
Minimum Air Flow Fraction by multiplying it using this
schedule. Schedule values are fractions, 0.0 to 1.0. This
field adjusts the minimum airflow turndown value below the
zone design minimum air flow and is intended for use with
ASHRAE Standard 170. This field can also be used to adjust the
design minimum air flow sizing calculation by applying a
desired fraction values to summer and winter design days
turndown schedule. If this field is left blank, then the
turndown minimum air flow fraction value is set to 1 and the
VAV air terminal uses the fixed fraction specified in in the
field Zone
Minimum Air Flow Fraction.
An IDF example:
AirTerminal:DualDuct:VAV,
Zone1MixDamp, !- Name
FanAndCoilAvailSched, !- Availability Schedule Name
Zone 1 Dual Duct Outlet, !- Air Outlet Node Name
Zone 1 Dual Duct Hot Inlet, !- Hot Air Inlet Node Name
Zone 1 Dual Duct Cold Inlet,!- Cold Air Inlet Node Name
autosize, !- Maximum Air Flow Rate {m3/s}
0.1, !- Zone Minimum Air Flow Fraction
ZoneMinOARequirements, !- Design Specification Outdoor Air Object Name
TurndownMinAirFlowSch; !- Minimum Air Flow Turndown Schedule Name
! Outdoor air specification should be consistent with Sizing:Zone object inputs.
DesignSpecification:OutdoorAir,
ZoneMinOARequirements, !- Name
Sum, !- Outdoor Air Method
0.00944, !- Outdoor Air Flow per Person {m3/s}
0.000508, !- Outdoor Air Flow per Zone Floor Area {m3/s-m2}
, !- Outdoor Air Flow per Zone
, !- Outdoor Air Flow Air Changes per Hour
Min OARequirements Sched; !- Outdoor Air Flow Rate Fraction Schedule Name
Schedule:Compact,
Min OARequirements Sched, !- Name
Any Number, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays SummerDesignDay WinterDesignDay, !- Field 2
Until: 24:00,1.0, !- Field 7
For: AllOtherDays, !- Field 9
Until: 24:00,0.25; !- Field 10
Schedule:Compact,
TurndownMinAirFlowSch, !- Name
Fraction, !- Schedule Type Limits Name
Through: 12/31, !- Field 1
For: Weekdays, !- Field 2
Until: 7:00,0.50, !- Field 3
Until: 17:00,0.75, !- Field 4
Until: 24:00,0.50, !- Field 5
For: SummerDesignDay WinterDesignDay, !- Field 6
Until: 24:00,1.0, !- Field 7
For: Weekends Holidays CustomDay1 CustomDay2, !- Field 8
Until: 24:00,0.25; !- Field 9
HVAC,Average,Zone Air Terminal Cold Supply Duct
Damper Position []
HVAC,Average,Zone Air Terminal Hot Supply Duct
Damper Position []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow
Rate [m3/s]
Zone
Air Terminal Cold Supply Duct Damper Position [][LINK]
This output is the damper position of the cold air stream
in a dual duct air terminal. This is the average value over
the frequency being reported. The damper position is defined
as the terminal unit cold air mass flow rate divided by the
terminal unit’s maximum cold air mass flow rate.
Zone
Air Terminal Hot Supply Duct Damper Position [][LINK]
This output is the damper position of the hot air stream in
a dual duct air terminal. This is the average value over the
frequency being reported. The damper position is defined as
the terminal unit hot air mass flow rate divided by the
terminal unit’s maximum hot air mass flow rate.
Zone
Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone.
This is the average value over the frequency being reported.
The amount of outdoor air is defined as the terminal unit air
volume flow rate multiplied by the fraction of outdoor air
entering the air loop’s outdoor air system.
AirTerminal:DualDuct:VAV:OutdoorAir
provides a model for a type of dual duct air system in which
one duct provides outdoor air ventilation and the other
provides VAV cooling. The Outdoor Air stream and the
Recirculated Air stream are conditioned and supplied through
separate air streams as part of a centralized dedicated
outdoor air (DOAS) distribution system. The dual duct
arrangement allows the ventilation air to be controlled
separately using schedules or occupancy demand while the
recirculated air is controlled to meet the dry-bulb zone
temperature setpoint. The two airstreams remain decoupled
until the terminal box where they are mixed. The terminal unit
is meant for systems regulating outdoor air based only on
demand control or code minimum settings and not on economizer
operation.
This air terminal does not have heating coils and is not
configured for conditions zones that need heat. Additional
ZoneHVAC equipment, such as baseboards or fan coil units, are
needed to provide heating to the zone when using this air
terminal.
Although this air terminal is primarily for dual duct
system, it is allowed to use just the outdoor air side in a
single duct system. This can be useful for modeling single
duct DOAS when the required volume of outdoor air varies over
time.
Schedule that this component will operate or is available
to operate for a given time period. A schedule value greater
than 0 (usually 1 is used) indicates that the component can be
on during the time period. A value less than or equal to 0
(usually 0 is used) denotes that the component must be off for
the time period. If this field is blank, the schedule has
values of 1 for all time periods.
The outlet node of the terminal unit. This is the node
leaving the unit and serving as the inlet to the zone. It is
for the mixed flow leaving from both of the inlet node.
The inlet node of the Recirculated Air (RA) stream deck of
the Dual Duct
system. This input is optional. If no node name is entered
here, then the recirculation duct is disabled and the model
functions as a single duct terminal and no second cooling deck
is needed.
Max total airflow rate (in m3/s) at the terminal unit
outlet including both the Outdoor Air stream and the
Recirculated stream. Can be autosized based on the Design
Outdoor Airflow Rate and the zone thermal cooling load. The
autosized flow rate will be the sum of the maximum outdoor air
requirement and the flow for cooling. When autosizing, this
maximum and the individual inlet flow rate sizes are reported
to the eio file.
Field:
Design Specification Outdoor Air Object Name[LINK]
This field specifies the name of a DesignSpecification:OutdoorAir
or DesignSpecification:OutdoorAir:SpaceList
object. This field is required for this object. The terminal
unit will modulate the Outdoor Air stream to meet this outdoor
air requirement. If Outdoor Air Flow per Person is applied,
then the outdoor air required will be based on either the
current number of occupants in the zone, as for demand
controlled ventilation, or the design level of occupants
depending on the setting in the next field.
This field specifies how the outdoor air ventilation rates
are calculated when based on a rate per person. It can be
either based on the current number of people as affected by
time-varying occupancy schedules, or on the constant value for
the maximum number of people. Enter the key CurrentOccupancy
for the former and DesignOccupancy for the later.
An example input object follows.
AirTerminal:DualDuct:VAV:OutdoorAir,
Media_Center Dual Duct Box Component, !- Name
ALWAYS_ON, !- Availability Schedule Name
Media_Center Dual Duct Box Outlet Node Name, !- Air Outlet Node Name
Media_Center Dual Duct Box Inlet Node Name, !- Outdoor Air Inlet Node Name
RC Media_Center Dual Duct Box Inlet Node Name, !- Recirculated Air Inlet Node Name
AUTOSIZE, !- Maximum Terminal Air Flow Rate {m3/s}
Media_Center Dual Duct Box OA Design Spec, !- Design Specification Outdoor Air Object Name
CurrentOccupancy; !- Per Person Ventilation Rate Mode
DesignSpecification:OutdoorAir,
Media_Center Dual Duct Box OA Design Spec, !- Name
Sum, !- Outdoor Air Method
0.004719, !- Outdoor Air Flow per Person {m3/s-person}
0.00061, !- Outdoor Air Flow per Zone Floor Area {m3/s-m2}
0.0, !- Outdoor Air Flow per Zone {m3/s}
0.0, !- Outdoor Air Flow Air Changes per Hour
MinOA_Sched; !- Outdoor Air Flow Rate Fraction Schedule Name
Output:Variable,*,Zone Air Terminal Outdoor Air Duct
Damper Position,hourly; !- HVAC Average []
Output:Variable,*,Zone Air Terminal Recirculated Air Duct
Damper Position,hourly; !- HVAC Average []
Output:Variable,*,Zone Air Terminal Outdoor Air
Fraction,hourly; !- HVAC Average []
Zone
Air Terminal Outdoor Air Duct Damper Position [][LINK]
This output is the damper position of the outdoor air
stream in a dual duct air terminal. This is the average value
over the frequency being reported. The damper position is
defined as the terminal unit outdoor air mass flow rate
divided by the terminal unit’s maximum outdoor air mass flow
rate. This output is dimensionless and ranges from 0.0 to
1.0.
Zone
Air Terminal Recirculated Air Duct Damper Position [][LINK]
This output is the damper position of the recirculated cool
air stream in a dual duct air terminal. This is the average
value over the frequency being reported. The damper position
is defined as the terminal unit cool air mass flow rate
divided by the terminal unit’s maximum cool air mass flow
rate. This output is dimensionless and ranges from 0.0 to
1.0.
This output is the current fraction of outdoor air
contained in the combined flow of air entering the zone from
the terminal unit. This is the average value over the
frequency being reported. The outdoor air fraction is defined
as the terminal unit outdoor air mass flow rate divided by the
total air mass flow rate. This output is dimensionless and
ranges from 0.0 to 1.0.
Group – Zone HVAC Air Loop Terminal Units[LINK]
The systems described in the Air Distribution Units (ADU’s) are shown below. A variety of air terminal units are available for connecting air systems to thermal zones. These single description ADU’s contain the reference to the components and the actual controls in one block of input. The idea is that the control volume is drawn tightly around the controls and loosely around the components. This allows complex interactions to take place between all of the components that respond to the Zone Thermostatic Control output. The coils that are referenced in the ADU’s are explained fully in the “Coils” section of this manual.
AirTerminal:SingleDuct:ConstantVolume:Reheat[LINK]
The AirTerminal:SingleDuct:ConstantVolume:Reheat or terminal reheat system is a constant volume reheat system. The systems cooling capabilities are provided by way of cooling coil that supplies cooling to the entire supply air volume. The cooling coil is controlled by a controller setpoint specified for the cooling coil. Zone control is accomplished by heating (reheating) the airflow into each zone as determined by the zone thermostat. Currently the reheat can be supplied by a electric, gas, or hot water coil that tries to meet the zone demand.
Inputs[LINK]
Field: Name[LINK]
Unique name for the terminal reheat Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
Schedule that this component will operate or is available to operate. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Air Outlet Node Name[LINK]
The outlet node from the ADU to the zone. This is the same node as the reheat component air outlet node.
Field: Air Inlet Node Name[LINK]
The air-inlet node name that connects the air splitter to the individual zone ADU. This is the same node as the reheat component air inlet node.
Field: Maximum Air Flow Rate[LINK]
The design constant volume flow rate (m\(^{3}\)/sec) specified for the terminal reheat ADU.
Field: Reheat Coil Object Type[LINK]
The valid reheat component objects currently available are:
Coil:Heating:Water
Coil:Heating:Electric
Coil:Heating:Fuel
Coil:Heating:Steam
Field: Reheat Coil Name[LINK]
Reheat Coil Object name being simulated with this ADU. Applicable for all coils.
Field: Maximum Hot Water or Steam Flow Rate[LINK]
This field is zero for gas and electric coils. Set to the maximum design hot water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or steam heating coil. The steam volumetric flow rate is calculated at 100C and 101325 Pa.
Field: Minimum Hot Water or Steam Flow Rate[LINK]
This field is zero for gas and electric coils. Set to the minimum design hot water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or steam coil, normally set to be a shut off valve that is set to zero. The steam volumetric flow rate is calculated at 100C and 101325 Pa.
Field: Convergence Tolerance[LINK]
The coil is controlled by knowing the zone demand determined by the zone thermostat and setting the outlet conditions to meet this demand. For the electric and gas coils, this is set exactly since the coil model solution can be inverted. With the hot water coil that uses an effectiveness-NTU method, the solution cannot be inverted directly. Therefore, to determine the correct mass flow rate for the hot water the solution is solved for by iteration. The iterative solution uses an interval halving routine and needs a termination criterion that is set with the Convergence Tolerance parameter. This control offset is set to a decimal fraction of the zone demand as the criteria, i.e. 0.001. The default for the field is 0.001.
Field: Maximum Reheat Air Temperature[LINK]
This is the upper limit on the temperature in degrees C of the air leaving the terminal unit – reheat coil (and being delivered to the zone). If the user leaves this field blank, no maximum reheat air temperature is enforced.
Outputs[LINK]
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
An IDF example:
AirTerminal:SingleDuct:ConstantVolume:NoReheat[LINK]
The AirTerminal:SingleDuct:ConstantVolume:NoReheat object creates the capability of supplying central system air directly to a zone without any zone level thermostat control. The supply air temperature is controlled by the central system controller. It is typically used with a unitary system and furnaces which controls the system supply temperature and flow rate with continuous or cycling fan. When used without the Design Specification Outdoor Air Object Name, the terminal unit is passive and accepts any flow rate supplied by the central system, but will never exceed the maximum air flow rate.
This object allows the program to know what zone this branch of the air system is attached to, and input fields for availability schedule, air inlet and outlet nodes, the maximum air flow rate, and other two optional input fields. The air inlet node should be the same as one of the AirLoopHVAC:ZoneSplitter or AirLoopHVAC:SupplyPlenum component outlet nodes. The air outlet node name should be same as zone air inlet node name and the air distribution unit air outlet node name. The last two optional input fields: Design Specification Outdoor Air Object Name, and Per Person Ventilation Rate Mode are used for modulating the outdoor air requirement of an air terminal unit depending on the method.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for the single duct constant volume no reheat air terminal unit.
Field: Availability Schedule Name[LINK]
Availability schedule name for this system. Schedule value > 0 means the system is available or else the system is off. If this field is blank, the system is always available.
Field: Air Inlet Node Name[LINK]
The air inlet node name that connects the air splitter to the individual zone air distribution unit. This node should also be one of the outlet air node of an AirLoopHVAC:ZoneSplitter or AirLoopHVAC:SupplyPlenum component.
Field: Air Outlet Node Name[LINK]
This is an air outlet node from the air distribution unit. This node name should be one of the supply air inlet node names of the zone served by this component.
Field: Maximum Air Flow Rate[LINK]
The design maximum volume flow rate (m\(^{3}\)/sec). This field is autosizable.
Field: Design Specification Outdoor Air Object Name[LINK]
This field is used to modulate the terminal unit flow rate based on the specified outdoor air requirement. When the name of a DesignSpecification:OutdoorAir or DesignSpecification:OutdoorAir:SpaceList object is entered, the terminal unit will adjust flow to meet this outdoor air requirement and no more. Load is still "Uncontrolled." If Outdoor Air Flow per Person is non-zero, then the outdoor air requirement will be computed based on either the current or design occupancy as specified in the Per Person Ventilation Rate Mode input field below. At no time will the supply air flow rate exceed the value for Maximum Air Flow Rate. The requested flow rate may not be fully met if the system is operating with cycling fan. The volume flow rate is converted to mass flow rate using the standard density of air at Pressure = 101325 Pa, Temperature = 20C, and Humidity Ratio = 0.0. If this field is blank, then the terminal unit will not be controlled for outdoor air flow. This field is optional.
Field: Per Person Ventilation Rate Mode[LINK]
This field specifies the occupancy level to use when calculating the ventilation rate per person when a Design Specification Outdoor Air Object Name has been specified. CurrentOccupancy uses the current number of people in the zone which may vary. DesignOccupancy uses the total Number of People specified for the zone which is constant.
Outputs[LINK]
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
An IDF example:
AirTerminal:SingleDuct:VAV:Reheat[LINK]
AirTerminal:SingleDuct:VAV:Reheat - Variable air volume (VAV) systems control the dry-bulb temperature inside a zone by varying the supply air volume instead of the air temperature. At full cooling the VAV damper is fully open supplying the specified maximum air flow rate. As the cooling load decreases, the damper closes until it reaches the minimum stop specified by the zone minimum air flow fraction. The zone minimum supply air flow can be further adjusted using scheduled fraction values specified in the field Minimum Air Flow Turndown Schedule Name.
VAV systems can be used for interior or perimeter zones with a common fan system, air temperature control, and reheating devices. The VAV concept may vary according to the VAV box locations, air temperature controls and types of heating elements. Heating can usually be provided by use of reheat coils or thermostatic baseboard.
Inputs[LINK]
Field: Name[LINK]
Unique name for the AirTerminal:SingleDuct:VAV:Reheat Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
Schedule that this component will operate or is available to operate. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Damper Air Outlet Node Name[LINK]
The VAV damper outlet node. This is the outlet node of the damper and the inlet node of the reheat coil.
Field: Air Inlet Node Name[LINK]
The air inlet node name that connects the air splitter to the individual zone ADU. This is not the same as the air inlet node of the reheat component: it is upstream of that node. This is the inlet node to the terminal unit and the damper
Field: Maximum Air Flow Rate[LINK]
The design maximum volume flow rate (m\(^{3}\)/sec) specified for VAV ADU.
Field: Zone Minimum Air Flow Method[LINK]
This field is used to select how the program will determine the minimum flow rate to the zone while the system is operating. The minimum flow rate is modeled as a fraction of the maximum flow rate. There are three choices for selecting how the minimum flow rate is specified: Constant, FixedFlowRate, and Scheduled. If Constant is entered, then the program will use the value for the constant minimum air flow fraction entered in the following field. If FixedFlowRate is entered, then the program will use the value for minimum flow rate entered in the field below called Fixed Minimum Air Flow Rate. If Scheduled is entered, then the program will obtain the value for minimum flow fraction from the schedule named in the field below called Minimum Air Flow Fraction Schedule Name. The default is Constant.
Field: Constant Minimum Air Flow Fraction[LINK]
The minimum flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. The minimum zone fraction is normally specified to meet the minimum ventilation requirement for the occupants. The reheat coil operates only when the damper is at this minimum flow rate when Damper Heating Action is set to Normal. This field is used if the previous field is set to Constant. If the previous field is set to Scheduled (and the field Maximum Hot Water or Steam Flow Rate is set to autosize), then this field is optional and can be used to separately control the air flow rate used for sizing normal-action reheat coils. If this field and the following field have values, the greater of the two is used for sizing.
This field is autosizable and defaulted to autosize. The autosized flow fraction is calculated using the maximum flow rate derived from the design outdoor air flow (including VRP adjustments) and the Sizing:Zone input fields “Cooling Minimum Air Flow per Zone Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum Air Flow Fraction”. If there is no sizing calculation the defaults of 0.000762 cubic meters per second per square meter of zone floor area (0.15 cfm/ft2) and 0.2 are used. The autosized flow fraction is calculated according to the ASHRAE Standard 62.1 Simplified Procedure if the Sizing:System’s “System Outdoor Air Method” associated with this terminal is set to Standard62.1SimplifiedProcedure, see the System Outdoor Air Method of the Sizing:System object.
Field: Fixed Minimum Air Flow Rate[LINK]
The minimum flow rate to the zone while the system is operating, specified as a fixed minimum air flow rate in meters cubed per second. The minimum air flow rate is normally specified to meet the minimum ventilation requirement for the occupants. The reheat coil operates only when the damper is at this minimum flow rate when Damper Heating Action is set to Normal (the default). This field is used if the Zone Minimum Air Flow Method field is set to FixedFlowRate. If the Zone Minimum Air Flow Method field is set to Scheduled (and the field Maximum Hot Water or Steam Flow Rate is set to autosize), then this field is optional and can be used to separately control the air flow rate used for sizing normal-action reheat coils. Only one of these two minimum air flow fields (i.e., this field and the previous field) should be used at any time. If this field and the previous field have values, the greater of the two is used for sizing.
This field is autosizable and defaulted to autosize. The autosized flow rate is the maximum flow rate derived from the design outdoor air flow (including VRP adjustments) and the Sizing:Zone input fields “Cooling Minimum Air Flow per Zone Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum Air Flow Fraction”. If there is no sizing calculation the defaults of 0.000762 cubic meters per second per square meter of zone floor area (0.15 cfm/ft2) and 0.2 flow fraction are used. The autosized flow rate is calculated according to the ASHRAE Standard 62.1 Simplified Procedure if the Sizing:System’s “System Outdoor Air Method” associated with this terminal is set to Standard62.1SimplifiedProcedure, see the System Outdoor Air Method of the Sizing:System object.
Field: Minimum Air Flow Fraction Schedule Name[LINK]
The name of a schedule that determines the value of the minimum air flow fraction. The schedule should contain fractions from 0.0 to 1.0. These values will define the minimum flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. The reheat coil operates only when the damper is at this minimum flow rate when Damper Heating Action is set to Normal (the default). This field is used if the previous field is set to Scheduled. If the previous field is left blank (and the field Maximum Hot Water or Steam Flow Rate is set to autosize), then the air flow rate used for sizing normal-action reheat coils is the average of the minimum and maximum values in this schedule. The air flow rate used for reheat coil sizing is reported with other component sizing information as “Reheat Coil Sizing Air Volume Flow Rate.”
Field: Reheat Coil Object Type[LINK]
The valid reheat component objects currently available are:
Coil:Heating:Water
Coil:Heating:Electric
Coil:Heating:Fuel
Coil:Heating:Steam
If there is no reheat coil, use AirTerminal:SingleDuct:VAV:NoReheat instead of this object.
Field: Reheat Coil Name[LINK]
Reheat Coil Object name being simulated with this ADU. Applicable for all coils. If there is no reheat coil, use object AirTerminal:SingleDuct:VAV:NoReheat instead of this object.
Field: Maximum Hot Water or Steam Flow Rate[LINK]
This field is zero for gas and electric coils. Set to the maximum design hot water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or steam heating coil. The steam volumetric flow rate is calculated at 100C and 101325 Pa. This field is autosizable. If there is no reheat coil, this is left blank.
Field: Minimum Hot Water or Steam Flow Rate[LINK]
This field is zero for gas and electric coils. Set to the minimum design hot water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or steam heating coil, normally set to be a shut off valve that is set to zero. The steam volumetric flow rate is calculated at 100C and 101325 Pa. If there is no reheat coil, this is left blank.
Field: Air Outlet Node Name[LINK]
The terminal unit outlet node. This is the outlet node of the reheat coil and the zone inlet node.
Field: Convergence Tolerance[LINK]
The coil is controlled by knowing the zone demand determined by the zone thermostat and setting the outlet conditions to meet this demand. For the electric and gas coils, this is set exactly since the coil model solution can be inverted. With the hot water coil that uses an effectiveness-NTU method, the solution cannot be inverted directly. Therefore, to determine the correct mass flow rate for the hot water the solution is solved for by iteration. The iterative solution uses an interval halving routine and needs a termination criteria that is set with the Convergence Tolerance parameter. This control offset is set to a decimal fraction of the zone demand as the criteria, i.e. 0.001. The default for the field is 0.001.
Field: Damper Heating Action[LINK]
During heating operation, there are three control options for the damper controlling the air flow in the VAV terminal unit as the zone moves above or below the zone setpoint. With all three control options, the damper is at the minimum air flow rate whenever the zone temperature is between the cooling and heating setpoints (deadband condition).
With Normal action, the damper will remain at the minimum air flow rate during heating operation. As the heating load increases, the water flow rate in the reheat coil will be increased to maintain temperature in the zone until the maximum water flow rate is reached or the user-specified maximum reheat air temperature is reached. This is sometimes called the single maximum control logic as illustrated below.
With Reverse and ReverseWithLimits (the default) action, as the heating load increases, the unit starts at minimum air flow and minimum hot water flow. The hot water flow is increased until it reaches maximum flow or the user-specified maximum reheat air temperature is reached, then the air damper starts to open to meet the load. For Reverse the damper can open all the way. For ReverseWithLimitss the damper can only partially open to a maximum flow rate given by the following two fields. These options are used if the minimum air flow rate is not adequate to serve the peak heating load. This is sometimes called the dual maximum control logic as illustrated in following figure. For heating coil types other than the hot-water coil, e.g. electric, steam, and gas, the reverse action works the same as the normal action – always keeping the air flow at the minimum during heating.
The dual-max control currently applies to the AirTerminal:SingleDuct:VAV:Reheat objects with reverse acting dampers and hot-water coils.
Control Fields for Maximum Flow During Reheat:[LINK]
The following two fields are used only when Reheat Coil Object Type = Coil:Heating:Water and Damper Heating Action = ReverseWithLimits. Maximum Flow per Zone Floor Area During Reheat and Maximum Flow Fraction During Reheat are two optional methods to calculate the maximum allowable air flow rate during reheat operation. If both are entered, the greater resulting flow rate is used. If Design Specification Outdoor Air Object Name is also specified, it may increase this limit to meet the outdoor air flow rate requirement. At no time will the maximum flow rate calculated here exceed the value for Maximum Air Flow Rate.
This limit is active only when the zone thermostat requests heating and the VAV box damper is reverse acting (i.e., ReverseWithLimits).
Field: Maximum Flow per Zone Floor Area During Reheat[LINK]
This factor (m\(^{3}\)/s-m\(^{2}\)) is multiplied by the zone area, to determine the maximum volume flow rate (m\(^{3}\)/s) allowed during reheat operation (see detailed explanation above). This field is autosizable and its default is autosize. If autosize is selected or the field is blank, the value is filled from the similar inputs in Sizing:Zone. If there is no sizing calculation the value is set to 0.002032 m\(^{3}\)/s-m\(^{2}\) (0.4 cfm/ft\(^{2}\)). If this field and the following field are entered, the greater of the two inputs is used. This field and the following field are only used if Damper Heating Action = ReverseWithLimits.
Field: Maximum Flow Fraction During Reheat[LINK]
This fraction is multiplied by the Maximum Air Flow Rate to determine the maximum volume flow rate (m\(^{3}\)/s) allowed during reheat operation (see detailed explanation above). This field is autosizable and is defaulted to autosize. If autosizable is selected or the field is blank, the value is set to 0.002032 m\(^{3}\)/s-m\(^{2}\) (0.4 cfm/ft\(^{2}\)) multiplied by the zone floor area divided by the Maximum Air Flow Rate. If this field and the previous field are entered, the greater of the two inputs is used. This field and the following field are only used if Damper Heating Action = ReverseWithLimits.
Field: Maximum Reheat Air Temperature[LINK]
This field specifies a maximum supply air temperature (°C) leaving the reheat coil in a VAV terminal unit during heating operation. If leaving blank, the temperature of the supply air to the space in heating operation may get unrealistic high.
Field: Design Specification Outdoor Air Object Name[LINK]
This alpha field specifies the name of a DesignSpecification:OutdoorAir or DesignSpecification:OutdoorAir:SpaceList object. When this field is used, the terminal unit will increase flow as needed to meet this outdoor air requirement. If Outdoor Air Flow per Person is non-zero, then the outdoor air requirement will be computed based on the current number of occupants in the zone. At no time will the supply air flow rate exceed the value for Maximum Air Flow Rate. If this field is blank, then the terminal unit will not be controlled for outdoor air flow. See documentation for the zone HVAC outdoor air object for further information (Ref DesignSpecification:OutdoorAir).
Field: Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Constant Minimum Air Flow Fraction, Fixed Minimum Air Flow Rate, or Minimum Air Flow Fraction Schedule value by multiplying it using this schedule. Schedule values are fractions, 0.0 to 1.0. This field adjusts the minimum airflow turndown value below the zone design minimum air flow and is intended for use with ASHRAE Standard 170. This field can also be used to adjust the design minimum air flow sizing calculation by applying a desired fraction values to summer and winter design days turndown schedule. If this field is left blank, then the turndown minimum air flow fraction value is set to 1.
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal VAV Damper Position []
HVAC,Average,Zone Air Terminal Minimum Air Flow Fraction []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal VAV Damper Position [][LINK]
This output is the variable air volume damper position required to meet the zone load. This is the average value over the frequency being reported. The damper position is defined as the terminal unit air mass flow rate divided by the terminal unit’s maximum air mass flow rate.
Zone Air Terminal Minimum Air Flow Fraction [][LINK]
This output is the value for the minimum air flow fraction setting on a VAV terminal. This is the average value over the frequency being reported. The minimum air flow fraction is defined as the lower limit on the terminal unit air mass flow rate divided by the terminal units maximum air mass flow rate.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:VAV:Reheat:VariableSpeedFan[LINK]
The VAV terminal unit with variable-speed fan and reheat coil is an air system terminal unit consisting of a variable speed fan in series with a heating coil. These units are usually employed in underfloor air distribution (UFAD) systems where the air is supplied at low static pressure through an underfloor plenum. The fan is used to control the flow of conditioned air that enters the space. When the fan is off the plenum pressure drives the minimum air flow through the terminal unit. At maximum cooling the fan runs at its maximum speed. At full heating the fan runs at its heating maximum – usually less than the cooling maximum flow rate. Thus this unit has two separate maximum flow rates – one for heating and one for cooling.
For cooling, control is maintained simply by varying the fan speed. For heating, the unit first tries to meet the heating load by varying the heating coil output while keeping the air flow at minimum (fan off). If this is not adequate the fan turns on and operates in variable flow mode up to the heating maximum flow rate. The zone fan-off minimum supply air flow can be further adjusted using scheduled fraction values specified in the field Minimum Air Flow Turndown Schedule Name.
This unit is modeled in EnergyPlus as a compound component – a variable speed fan and a heating coil in series in the air stream. The unit is blow through – the fan is upstream of the heating coil.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for a particular VS fan VAV reheat terminal unit. Any reference to this unit by another object will use this name.
Field: Availability Schedule Name[LINK]
The name of the schedule (ref: Schedule) that denotes whether the unit can run during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Maximum Cooling Air Flow Rate[LINK]
The maximum volumetric air flow rate through the unit in cubic meters per second when the thermostat is calling for cooling. Normally this is the same as the unit’s fan maximum volumetric flow rate.
Field: Maximum Heating Air Flow Rate[LINK]
The maximum volumetric air flow rate through the unit in cubic meters per second when the thermostat is calling for heating.
Field: Zone Minimum Air Flow Fraction[LINK]
The minimum flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. For this unit this is the flow rate when the fan is off.
Field: Air Inlet Node Name[LINK]
The name of the HVAC system node that is the air inlet node for the terminal unit. This is also the air inlet node for the unit’s fan.
Field: Air Outlet Node Name[LINK]
The name of the HVAC system node that is the air outlet node of the unit. This same node will be the unit heating coil’s air outlet node. This node is also a zone inlet node.
Field: Fan Object Type[LINK]
The type of fan in the terminal unit. At this time the only type of fan allowed is Fan:SystemModel or Fan:VariableVolume.
Field: Fan Name[LINK]
The name of the particular fan object in this terminal unit.
Field: Heating Coil Object Type[LINK]
The type of heating coil in the terminal unit. The valid choices are:
Coil:Heating:Water
Coil:Heating:Electric
Coil:Heating:Fuel
Coil:Heating:Steam
Field: Heating Coil Name[LINK]
The name of the heating coil object contained in this terminal unit.
Field: Maximum Hot Water or Steam Flow Rate[LINK]
The maximum hot water or steam volumetric flow rate in m\(^{3}\)/s through the unit’s heating coil. The steam volumetric flow rate is calculated at 100C and 101325 Pa. If the heating coil is not a hot water or steam coil this field should be left blank.
Field: Minimum Hot Water or Steam Flow Rate[LINK]
The minimum hot water or steam volumetric flow rate in m\(^{3}\)/s through the unit’s heating coil. The steam volumetric flow rate is calculated at 100C and 101325 Pa. If the heating coil is not a hot water or steam coil this field should be left blank.
Field: Heating Convergence Tolerance[LINK]
The control tolerance for the unit heating output. The unit is controlled by matching the unit output to the zone demand. The model must be numerically inverted to obtain a specified output. The convergence tolerance is the error tolerance used to terminate the numerical inversion procedure. Basically, this is the fraction:
\[\frac{\left| Q_{\rm{unit, out}} - Q_{\rm{zone load}} \right|}{Q_{\rm{zone load}}} \le \rm{ConvergenceTolerance}\]
The default is 0.001.
Field: Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts Zone Minimum Air Flow Fraction by multiplying it using this schedule. Schedule values are fractions, 0.0 to 1.0. This field adjusts the minimum airflow turndown value below the zone design minimum air flow and is intended for use with ASHRAE Standard 170. This field can also be used to adjust the design minimum air flow sizing calculation by applying a desired fraction values to summer and winter design days turndown schedule. If this field is left blank, then the turndown minimum air flow fraction value is set to 1 and the VAV air terminal uses the fixed fraction specified in in the field Zone Minimum Air Flow Fraction.
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal VAV Damper Position []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal VAV Damper Position[LINK]
This output is the variable air volume flow fraction required to meet the zone load. This is the average value over the frequency being reported. The flow fraction is defined as the terminal unit air mass flow rate divided by the terminal unit’s maximum air mass flow rate.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:VAV:HeatAndCool:Reheat[LINK]
Variable air volume (VAV) systems typically control the dry-bulb temperature inside a zone by varying the supply air volume instead of the supply air temperature (ref: AirTerminal:SingleDuct:VAV:NoReheat). Reheat coils may be required to avoid overcooling (ref: AirTerminal:SingleDuct:VAV:Reheat).
This terminal unit is slightly different from the AirTerminal:SingleDuct:VAV:Reheat terminal unit. Both operate the same in cooling mode: the damper opens as needed to provide additional sensible cooling to the zone. The difference between the two is in heating mode. For the Single Duct VAV Reheat terminal unit, the air flow rate is reduced to the minimum value (max air flow rate x zone minimum air flow fraction) when zone heating is required and the reheat coil output is modulated to meet the zone heating load. The zone minimum supply air flow can be further adjusted using scheduled fraction values specified in the field Minimum Air Flow Turndown Schedule Name. For the AirTerminal:SingleDuct:VAV:HeatAndCool:Reheat terminal unit, the air flow rate in heating mode is increased to meet higher zone heating loads (similar to what is done in cooling mode). If additional heat is required (beyond what the terminal unit can provide with its damper fully open), then the reheat coil is modulated as needed to meet the additional heating load.
This terminal unit model was originally developed and tested for use with the changeover-bypass VAV unitary system.
Inputs[LINK]
Field: Name[LINK]
Unique user-defined name for this Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
This alpha field defines the name of the schedule (ref: Schedule) that denotes whether or not this component is available to operate during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Damper Air Outlet Node Name[LINK]
This alpha field defines the name of the VAV damper air outlet node. This is the outlet node of the damper and the inlet node of the reheat coil.
Field: Air Inlet Node Name[LINK]
This alpha field defines the name of the air inlet node that connects the air splitter to the individual zone ADU. This is not the same as the air inlet node of the reheat component: it is upstream of that node. This is the inlet node to the terminal unit and the damper.
Field: Maximum Air Flow Rate[LINK]
This numeric field defines the design maximum volumetric flow rate (m\(^{3}\)/sec) specified for this VAV ADU. This flow rate must be greater than 0 or can be autosized.
Field: Zone Minimum Air Flow Fraction[LINK]
This numeric field defines the minimum air volumetric flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. The minimum zone fraction is normally specified to meet the minimum ventilation requirement for the occupants. The reheat coil operates as needed to maintain the heating set point specified in the Zone Control:Thermostatic object. This value must be between 0 and 1.
Field: Reheat Coil Object Type[LINK]
The valid reheat component objects currently available are:
Coil:Heating:Water
Coil:Heating:Electric
Coil:Heating:Fuel
Coil:Heating:Steam
If no reheat coil is required, use AirTerminal:SingleDuct:VAV:HeatAndCool:NoReheat instead of this object.
Field: Reheat Coil Name[LINK]
Unique coil name being simulated with this ADU. Applicable for all coils. If there is no reheat coil, use AirTerminal:SingleDuct:VAV:HeatAndCool:NoReheat instead of this object.
Field: Maximum Hot Water or Steam Flow Rate[LINK]
This field is ignored for gas or electric reheat coils. If using a hot water or steam reheat coil, set to the maximum design water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or steam heating coil. The steam volume flow rate is calculated at 100C and 101325 Pa. This volumetric flow rate can be autosized.
Field: Minimum Hot Water or Steam Flow Rate[LINK]
This field is ignored for gas and electric coils. Set to the minimum design water or steam volumetric flow rate in m\(^{3}\)/s for the hot water or steam heating coil, normally set to be a shut-off valve that is set to zero. The steam volume flow rate is calculated at 100C and 101325 Pa.
Field: Air Outlet Node Name[LINK]
This is the air outlet node for the ADU and is then connected to the zone. This is the same node as the air outlet node of the reheat component.
Field: Convergence Tolerance[LINK]
The coil is controlled by knowing the zone demand determined by the zone thermostat and setting the outlet conditions to meet this demand. For the electric and gas coils, this is set exactly since the coil model solution can be inverted and this field is not used. With the hot water coil that uses an effectiveness-NTU method, the solution cannot be inverted directly. Therefore, to determine the correct mass flow rate for the hot water the solution is solved by iteration. The iterative solution uses an interval-halving routine and needs a termination criterion that is set with this Convergence Tolerance parameter. This control offset is set to a decimal fraction of the zone demand. The default value for this field is 0.001.
Field: Maximum Reheat Air Temperature[LINK]
This is the upper limit on the temperature in degrees C of the air leaving the terminal unit – reheat coil (and being delivered to the zone). If the user leaves this field blank, no maximum reheat air temperature is enforced.
Field: Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Zone Minimum Air Flow Fraction by multiplying it using this schedule. Schedule values are fractions, 0.0 to 1.0. This field adjusts the minimum airflow turndown value below the zone design minimum air flow and is intended for use with ASHRAE Standard 170. This field can also be used to adjust the design minimum air flow sizing calculation by applying a desired fraction values to summer and winter design days turndown schedule. If this field is left blank, then the turndown minimum air flow fraction value is set to 1 and uses the fixed fraction specified in the field Zone Minimum Air Flow Fraction.
An IDF example is provided below:
Outputs[LINK]
HVAC,Average,Zone Air Terminal VAV Damper Position []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal VAV Damper Position [][LINK]
This output is the damper position required to meet the zone load. This is the average value over the simulation timestep being reported. The damper position is defined as the terminal unit air mass flow rate divided by the terminal unit’s maximum air mass flow rate.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:VAV:NoReheat[LINK]
Variable air volume (VAV) systems control the dry-bulb temperature inside a zone by varying the supply air volume instead of the air temperature. At full cooling the VAV damper is fully open supplying the specified maximum air flow rate. As the cooling load decreases, the damper closes until it reaches the minimum stop specified by the zone minimum air flow fraction. The zone minimum supply air flow can be adjusted using scheduled fraction values specified in the field Minimum Air Flow Turndown Schedule Name.
VAV systems can be used for interior or perimeter zones with a common fan system and air temperature control. The VAV concept may vary according to the VAV box locations and air temperature controls. Heating can be provided if necessary by use of baseboard.
Inputs[LINK]
Field: Name[LINK]
Unique name for the VAV Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
Schedule that this component will operate or is available to operate. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Air Outlet Node Name[LINK]
The VAV damper and Unit outlet node.
Field: Air Inlet Node Name[LINK]
The air inlet node name that connects the air splitter to the individual zone ADU.
Field: Maximum Air Flow Rate[LINK]
The design maximum volume flow rate (m\(^{3}\)/sec) specified for VAV ADU. This is autosizable.
Field: Zone Minimum Air Flow Method[LINK]
This field is used to select how the program will determine the minimum flow rate to the zone while the system is operating. The minimum flow rate is modeled as a fraction of the maximum flow rate. There are three choices for selecting how the minimum flow rate is specified: Constant, FixedFlowRate, and Scheduled. If Constant is entered, then the program will use the value for the constant minimum air flow fraction entered in the following field. If FixedFlowRate is entered, then the program will use the value for minimum flow rate entered in the field below called Fixed Minimum Air Flow Rate. If Scheduled is entered, then the program will obtain the value for minimum flow fraction from the schedule named in the field below called Minimum Air Flow Fraction Schedule Name. The default is Constant.
Field: Constant Minimum Air Flow Fraction[LINK]
The minimum flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. The minimum zone fraction is normally specified to meet the minimum ventilation requirement for the occupants. This field is only used if the Zone Minimum Air Flow Method field is set to Constant.
This field is autosizable and defaulted to autosize. If a Sizing:System System Outdoor Air Method other than Standard62.1SimplifiedProcedure is specified, the autosized flow fraction is calculated using the maximum flow rate derived from the design outdoor air flow (including VRP adjustments) and the Sizing:Zone input fields “Cooling Minimum Air Flow per Zone Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum Air Flow Fraction”. If there is no sizing calculation the defaults of 0.000762 cubic meters per second per square meter of zone floor area (0.15 cfm/ft2) and 0.2 are used. The autosized flow fraction is calculated according to the ASHRAE Standard 62.1 Simplified Procedure if the Sizing:System’s “System Outdoor Air Method” associated with this terminal is set to Standard62.1SimplifiedProcedure.
Field: Fixed Minimum Air Flow Rate[LINK]
The minimum flow rate to the zone while the system is operating, specified as a fixed minimum air flow rate in meters cubed per second. The minimum air flow rate is normally specified to meet the minimum ventilation requirement for the occupants. This field is only used if the Zone Minimum Air Flow Method field is set to FixedFlowRate.
This field is autosizable and defaulted to autosize. The autosized flow rate is the maximum flow rate derived from the design outdoor air flow (including VRP adjustments) and the Sizing:Zone input fields “Cooling Minimum Air Flow per Zone Floor Area”, “Cooling Minimum Air Flow”, and “Cooling Minimum Air Flow Fraction”. If there is no sizing calculation the defaults of 0.000762 cubic meters per second per square meter of zone floor area (0.15 cfm/ft2) and 0.2 flow fraction are used. The autosized flow rate is calculated according to the ASHRAE Standard 62.1 Simplified Procedure if the Sizing:System’s “System Outdoor Air Method” associated with this terminal is set to Standard62.1SimplifiedProcedure.
Field: Minimum Air Flow Fraction Schedule Name[LINK]
The name of a schedule that determines the value of the minimum air flow fraction. The schedule should contain fractions from 0.0 to 1.0. These values will define the minimum flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. This field is only used if the Zone Minimum Air Flow Method field is set to Scheduled.
Field: Design Specification Outdoor Air Object Name[LINK]
This alpha field specifies the name of a DesignSpecification:OutdoorAir or DesignSpecification:OutdoorAir:SpaceList object. When this field is used, the terminal unit will increase flow as needed to meet this outdoor air requirement. If Outdoor Air Flow per Person is non-zero, then the outdoor air requirement will be computed based on the current number of occupants in the zone. At no time will the supply air flow rate exceed the value for Maximum Air Flow Rate. If this field is blank, then the terminal unit will not be controlled for outdoor air flow. See documentation for the zone HVAC outdoor air object for further information (Ref DesignSpecification:OutdoorAir).
Field: Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Constant Minimum Air Flow Fraction, Fixed Minimum Air Flow Rate, or Minimum Air Flow Fraction Schedule value by multiplying it using this schedule. Schedule values are fractions, 0.0 to 1.0. This field adjusts the minimum airflow turndown value below the zone design minimum air flow and is intended for use with ASHRAE Standard 170. This field can also be used to adjust the design minimum air flow sizing calculation by applying a desired fraction values to summer and winter design days turndown schedule. If this field is left blank, then the turndown minimum air flow fraction value is set to 1.
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal VAV Damper Position []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal VAV Damper Position [][LINK]
This output is the damper position required to meet the zone load. This is the average value over the simulation timestep being reported. The damper position is defined as the terminal unit air mass flow rate divided by the terminal unit’s maximum air mass flow rate.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:VAV:HeatAndCool:NoReheat[LINK]
Variable air volume (VAV) systems typically control the dry-bulb temperature inside a zone by varying the supply air volume instead of the supply air temperature (ref: AirTerminal:SingleDuct:VAV:NoReheat). Reheat coils may be required to avoid overcooling (ref: AirTerminal:SingleDuct:VAV:Reheat).
This terminal unit is slightly different from the AirTerminal:SingleDuct:VAV:NoReheat terminal unit. Both operate the same in cooling mode: the damper opens as needed to provide additional sensible cooling to the zone. The difference between the two is in heating mode. For the Single Duct VAV NoReheat terminal unit, the air flow rate is reduced to the minimum value (max air flow rate x zone minimum air flow fraction) when zone heating is required. The zone minimum supply air flow can be further adjusted using scheduled fraction values specified in the field Minimum Air Flow Turndown Schedule Name. For the AirTerminal:SingleDuct:VAV:HeatAndCool:NoReheat terminal unit, the air flow rate in heating mode is increased to meet higher zone heating loads (similar to what is done in cooling mode).
This terminal unit model was originally developed and tested for use with the changeover-bypass VAV unitary system. This object may be used when the central heating coil is sufficient to maintain the heating set point temperature. Additional heating may be provided, if necessary, by use of AirTerminal:SingleDuct:VAV:HeatAndCool:Reheat or ZoneHVAC:Baseboard:* objects.
Inputs[LINK]
Field: Name[LINK]
Unique user-defined name for this Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
This alpha field defines the name of the schedule (ref: Schedule) that denotes whether or not this component is available to operate during a given time period. If a schedule value is greater than zero then the system is available to operate; otherwise, the system is unavailable for that time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Air Outlet Node Name[LINK]
This alpha field defines the name of the VAV damper air outlet node.
Field: Air Inlet Node Name[LINK]
This alpha field defines the name of the air inlet node that connects the air splitter to the individual zone ADU.
Field: Maximum Air Flow Rate[LINK]
This numeric field defines the design maximum volume flow rate (m\(^{3}\)/sec) specified for this VAV ADU. This flow rate must be greater than 0 or can be autosized.
Field: Zone Minimum Air Flow Fraction[LINK]
This numeric field defines the minimum air volume flow rate to the zone while the system is operating, specified as a fraction of the maximum air flow rate. The minimum zone fraction is normally specified to meet the minimum ventilation requirement for the occupants. This value must be between 0 and 1.
Field: Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts the Zone Minimum Air Flow Fraction by multiplying it using this schedule. Schedule values are fractions, 0.0 to 1.0. This field adjusts the minimum airflow turndown value below the zone design minimum air flow and is intended for use with ASHRAE Standard 170. This field can also be used to adjust the design minimum air flow sizing calculation by applying a desired fraction values to summer and winter design days turndown schedule. If this field is left blank, then the turndown minimum air flow fraction value is set to 1 and uses the fixed fraction specified in the field Zone Minimum Air Flow Fraction.
An IDF example is provided below:
Outputs[LINK]
HVAC,Average,Zone Air Terminal VAV Damper Position []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal VAV Damper Position [][LINK]
This output is the damper position required to meet the zone load. This is the average value over the simulation timestep being reported. The damper position is defined as the terminal unit air mass flow rate divided by the terminal unit’s maximum air mass flow rate.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:SeriesPIU:Reheat[LINK]
The series powered induction unit is an air system terminal unit that mixes varying amounts of secondary (recirculated) air and primary (conditioned supply) air to produce a fixed flow of air to a zone. The unit contains a small fan that acts to induce the secondary air and a heating coil for heating the mixed secondary and primary air. The fan runs at a constant volume flow rate whenever the unit is on (and the fan’s availability schedule is on or it is activated by an availability manager). The fan is downstream of the primary and secondary air inlets. The variable mixing is accomplished by a damper in the unit’s primary air supply inlet duct. This damper can move from fully open (100% primary air. 0% secondary air) to a minimum stop that is specified in the input description. At full cooling the damper will be fully open. At minimum cooling and for heating the damper will be at the minimum stop and the secondary air flow will be at its maximum. During night cycle operation, if the availability manager status is CycleOnZoneFansOnly, then the fan will run only if there is a heating load. If the status is CycleOn, then the fan will run according to the normal controls.
The EnergyPlus model of the series PIU terminal unit is composed of three components: a zone mixer, a constant volume fan, and a heating coil (hot water, electric, or gas).
Additional optional inputs and control methods are available for modeling series fan-powered induction unit air terminals that have a variable speed fan. When using a variable speed fan, the air terminal is controlled to represent how a modern programmable controller would operate, but adapted for the context of long-timestep predicted-zone-load EnergyPlus simulation rather than real world fast-acting controls. Heating can be either staged or modulated with different heating controls as diagrammed below.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for a particular series powered induction terminal unit. Any reference to this unit by another object will use this name.
Field: Availability Schedule Name[LINK]
The name of the schedule (ref: Schedule) that denotes whether the unit can run during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Maximum Air Flow Rate[LINK]
The maximum volumetric air flow rate through the unit in cubic meters per second. Since this is a constant air volume unit, this is also the design, rated air flow rate of the unit.
Field: Maximum Primary Air Flow Rate[LINK]
The maximum volumetric air flow rate of primary air through the unit in cubic meters per second. This is the primary air flow rate at full cooling load when the primary air damper is fully open. Usually this quantity is the same as the total unit flow rate, but it can be less.
Field: Minimum Primary Air Flow Fraction[LINK]
The minimum volumetric air flow rate of primary air through the unit expressed as a fraction of the maximum volumetric air flow rate of primary air. This input can be 0.0. When set to autosize and the Sizing:System’s System Outdoor Air Method associated with this terminal is set to Standard62.1SimplifiedProcedure, the autosized air flow fraction is calculated according to the ASHRAE Standard 62.1 Simplified Procedure.
Field: Supply Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its primary or supply air
Field: Secondary Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its secondary or recirculated air. The unit can draw secondary air from its conditioned zone directly or from a return air plenum. Thus this node should be one of the zones exhaust air nodes (see Zone Air Exhaust Node in ZoneHVAC:EquipmentConnections) or an induced air node outlet of a return plenum (see Induced Air Outlet Node in AirLoopHVAC:ReturnPlenum).
Field: Outlet Node Name[LINK]
The name of the HVAC system node to which the unit sends its outlet air. This should be one of the inlet air nodes of the zone which is being served.
Field: Reheat Coil Air Inlet Node Name[LINK]
The name of the HVAC system node which is the inlet node of the unit’s heating coil. This is also the outlet node of the unit’s fan.
Field: Zone Mixer Name[LINK]
The name of a zone mixer component (object: AirLoopHVAC:ZoneMixer) which composes part of the unit. Note that some of the input for the mixer will duplicate input fields of the powered induction unit. One of the zone mixer inlet nodes should be the same as the supply air inlet node of the PIU; the other inlet node of the zone mixer should be the same as the secondary air inlet node of the PIU. The outlet node of the zone mixer should be the same as the inlet node of the PIU fan.
Field: Fan Name[LINK]
The name of a fan component which composes part of the unit. Note that the fan’s maximum flow rate should be the same as the maximum air flow rate of the PIU and the type of fan object must be Fan:SystemModel or Fan:ConstantVolume. The fan’s inlet node should be the same as the zone mixer’s outlet node. The fan’s outlet node should be the same as the heating coil’s air inlet node. The secondary fan will run only when the Availability Schedule specified in the fan object is >0 or when it is overridden by an availability manager (ref. AvailabilityManager:NightCycle and others).
Field: Reheat Coil Object Type[LINK]
The type of coil in the PIU. The valid choices are:
Coil:Heating:Water
Coil:Heating:Electric
Coil:Heating:Fuel
Coil:Heating:Steam
In other words, the PIU may have a hot water, gas, electric or steam reheat coil.
Field: Reheat Coil Name[LINK]
The name of the heating coil component which composes part of the unit. Note that the heating coil’s air inlet node is the same as the fan outlet node and the heating coil’s air outlet node is the same as the PIU outlet node.
Field: Maximum Hot Water or Steam Flow Rate[LINK]
The maximum hot water volumetric flow rate in m\(^{3}\)/sec through the unit’s heating coil. If the heating coil is gas or electric this field should be blank.
Field: Minimum Hot Water or Steam Flow Rate[LINK]
The minimum hot water volumetric flow rate in m\(^{3}\)/sec through the unit’s heating coil. If the heating coil is gas or electric this field should be blank.
Field: Convergence Tolerance[LINK]
The control tolerance for the unit heating output. The unit is controlled by matching the unit output to the zone demand. For units with water coils, the model must be numerically inverted to obtain a specified output. The convergence tolerance is the error tolerance used to terminate the numerical inversion procedure. Basically, this is the fraction:
\[\frac{{\left| {{Q_{PIU,out}} - {Q_{zone\;load}}} \right|}}{{{Q_{zone\;load}}}} \le ConvergenceTolerance\]
For gas or electric heating coils, this input should be left blank. The default is 0.001.
Field: Fan Control Type[LINK]
This field can be used to declare that a model for variable speed fan should be used. There are two choices, VariableSpeed or Constant. Enter VariableSpeed to indicate that the air terminal should operate with variable fan and emulate a modern controller. To use VariableSpeed the fan type needs to be a Fan:SystemModel and the named fan needs to be setup for variable flow. Enter Constant to use the legacy model for constant fan operation.
Field: Minimum Fan Turn Down Ratio[LINK]
This field is used to determine the minimum fan speed as a fraction when modeling variable speed fan. This ratio or fraction is multiplied by the Maximum Air Flow Rate to determine the minimum air flow rate while the fan is operating.
Field: Heating Control Type[LINK]
This field is used to declare how the heating coil is to be controlled. There are two choices, Staged or Modulated, see the control diagrams above.
Staged heat control has two stages. The first stage increases the fan flow first while leaving the reheat coil off. The second stage runs the fan at full speed and brings on heating.
Modulated heat control has three stages and considers discharge air temperature. The first stage of heating leaves fan speed at the minimum and brings on heat until the design discharge air temperature is reached. The second stage of heating maintains the design discharge air temperature and ramps up the fan speed. The third stage of heating runs at full fan speed and allows the discharge air temperature to exceed the design up until it reaches a high limit. When using the Modulated heat control type the following two fields are needed for input on the discharge air temperatures.
Field: Design Heating Discharge Air Temperature[LINK]
This field is used to indicate the design discharge air temperature during the second stage heating for Modulated heat control. The default is 32.1 deg. C (90 deg. F).
Field: High Limit Heating Discharge Air Temperature[LINK]
This field is used to indicate the high limit on discharge air temperature at the end of stage three heating for Modulated heat control. The default is 37.7 deg. C (100 deg. F).
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal Primary Damper Position []
HVAC,Average,Zone Air Terminal Heating Rate [W]
HVAC,Sum,Zone Air Terminal Heating Energy [J]
HVAC,Average,Zone Air Terminal Sensible Cooling Rate [W]
HVAC,Sum,Zone Air Terminal Sensible Cooling Energy [J]
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
HVAC,Average,Zone Air Terminal Total Air Mass Flow Rate [kg/s]
HVAC,Average,Zone Air Terminal Primary Air Mass Flow Rate [kg/s]
HVAC,Average,Zone Air Terminal Secondary Air Mass Flow Rate [kg/s]
HVAC,Average,Zone Air Terminal Outlet Discharge Air Temperature [C]
HVAC,Average,Zone Air Terminal Current Operation Control Stage [ ]
Zone Air Terminal Primary Damper Position [][LINK]
This output is the variable air volume primary damper position required to meet the zone load. This is the average value over the frequency being reported. The damper position is defined as the terminal unit primary air mass flow rate divided by the terminal unit’s maximum primary air mass flow rate.
Zone Air Terminal Heating Rate [W][LINK]
This field reports the dry air heating addition rate of the series PIU terminal unit to the zone it is serving in Watts. This is determined by outlet and zone air conditions and the mass flow rate through the terminal unit.
Zone Air Terminal Heating Energy [J][LINK]
This field reports the dry air heat addition of the series PIU terminal unit to the zone it is serving in Joules over the timestep being reported. This is determined by outlet and zone air conditions, the mass flow rate through the terminal unit, and the timestep.
Zone Air Terminal Sensible Cooling Rate [W][LINK]
This field reports the dry air sensible heat extraction rate of the series PIU terminal unit from the zone it is serving in Watts. This is determined by the outlet and zone conditions and the mass flow rate through the terminal unit.
Zone Air Terminal Sensible Cooling Energy [J][LINK]
This field reports the dry air sensible heat extraction of the series PIU terminal unit from the zone it is serving in Joules over the timestep being reported. This is determined by outlet and zone air conditions, the mass flow rate through the terminal unit, and the timestep.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
Zone Air Terminal Total Air Mass Flow Rate [kg/s][LINK]
This field reports the total air mass flow rate discharging from the air terminal into the zone, in kg/s. The flow rate will vary when modeling a variable speed fan.
Zone Air Terminal Primary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal from the primary node, typically a central air handling unit, in kg/s. The flow will vary during cooling when using a variable speed fan.
Zone Air Terminal Secondary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal from the secondary node, in kg/s. This air is typically locally recirculated or induced air drawn from the return plenum or directly from the zone. The flow rate will vary during heating when using a variable speed fan.
Zone Air Terminal Outlet Discharge Air Temperature [C][LINK]
This field reports the drybulb temperature of the air leaving the terminal and discharging into the zone. When using the Modulated heating control method, the air terminal controls the discharge temperature with design and high limit values.
Zone Air Terminal Current Operation Control Stage[LINK]
This field reports the current control stage of a PIU terminal. The controller diagrams above show the different stages. This output helps to monitor what control stage the air terminal is in at a given time. The output itself is an integer value that is mapped to a stage in the following list. Note that the frequency of reporting needs to be at the highest level because averaging integers across more than one system timestep makes them meaningless.
value = -1 => Not determined, should not occur, please report to developers
value = 0 => The terminal is shut down, the system is not available
value = 1 => Constant speed, cooling
value = 2 => Constant speed, heating
value = 3 => Deadband, no cooling, no heating
value = 4 => Variable speed, first stage cooling
value = 5 => Variable speed, second stage cooling
value = 6 => Variable speed, staged, first stage heating
value = 7 => Variable speed, staged, second stage heating
value = 8 => Variable speed, modulated, first stage heating
value = 9 => Variable speed, modulated, second stage heating
value = 10 => Variable speed, modulated, third stage heating
AirTerminal:SingleDuct:ParallelPIU:Reheat[LINK]
The parallel powered induction unit is an air system terminal unit that mixes varying amounts of secondary (recirculated) air and primary (conditioned supply) air to produce a variable total flow of air to a zone. The unit contains a small fan that acts to induce the secondary air and a heating coil for heating the mixed secondary and primary air. The secondary and primary air streams enter the unit in parallel. The fan sits in the secondary air stream and runs only when the primary air flow is below the Fan On Flow Fraction and the fan’s availability schedule is on or it is activated by an availability manager. The primary air inlet contains a damper that can move from fully open (maximum primary air) to a minimum stop (minimum primary air).
At full cooling load the primary air damper is fully open and the fan is off. The primary air flow is at maximum and there is little or no secondary air flow. As the cooling load decreases, the primary air damper gradually closes and the secondary air flow remains close to zero. At some point, usually when the primary air flow has reached the minimum, the fan switches on and secondary air is induced. The heating coil will switch on as needed to meet any heating demand. The Fan On Flow Fraction field controls the fan operation; see this field description for more details.
The EnergyPlus model of the parallel PIU terminal unit is composed of three components: a constant volume fan, a zone mixer, and a heating coil (hot water, electric, or gas).
Additional optional inputs and control methods are available for modeling parallel fan-powered induction unit air terminals that have a variable speed fan. When using a variable speed fan, the air terminal is controlled to represent how a modern programmable controller would operate, but adapted for the context of long-timestep predicted-zone-load EnergyPlus simulation rather than real world fast-acting controls. Heating can be either staged or modulated with different heating controls as diagrammed below.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for a particular parallel powered induction terminal unit. Any reference to this unit by another object will use this name.
Field: Availability Schedule Name[LINK]
The name of the schedule (ref: Schedule) that denotes whether the unit can run during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Maximum Primary Air Flow Rate[LINK]
The maximum volumetric air flow rate of primary air through the unit in cubic meters per second. This is the primary air flow rate at full cooling load when the primary air damper is fully open.
Field: Maximum Secondary Air Flow Rate[LINK]
The maximum volumetric air flow rate of secondary air through the unit in cubic meters per second. This flow rate can be any amount but is commonly less than the maximum primary air flow rate.
Field: Minimum Primary Air Flow Fraction[LINK]
The minimum volumetric air flow rate of primary air through the unit expressed as a fraction of the maximum volumetric air flow rate of primary air. This input can be 0.0. When set to autosize and the Sizing:System’s System Outdoor Air Method associated with this terminal is set to Standard62.1SimplifiedProcedure, the autosized air flow fraction is calculated according to the ASHRAE Standard 62.1 Simplified Procedure.
Field: Fan On Flow Fraction[LINK]
This is the fraction of the primary air flow at or below which the secondary fan turns on. In the parallel PIU the fan operation is intermittent. If the primary air flow is above this fraction of the maximum, the fan is off unless reheat is required. The fan will only operate if the Availability Schedule specified in the Fan:ConstantVolume object (see Fan Name below) is >0 or when it is overridden by an availability manager (ref. AvailabilityManager:NightCycle and others). If the availability manager status is CycleOnZoneFansOnly, then the fan will run only if there is a heating load. If the status is CycleOn, then the fan will run according to the normal controls (low flow or reheat required).
Field: Supply Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its primary or supply air
Field: Secondary Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its secondary or recirculated air. The unit can draw secondary air from its conditioned zone directly or from a return air plenum. Thus this node should be one of the zones exhaust air nodes (see Zone Air Exhaust Node in ZoneHVAC:EquipmentConnections) or an induced air node outlet of a return plenum (see Induced Air Outlet Node in AirLoopHVAC:ReturnPlenum).
Field: Outlet Node Name[LINK]
The name of the HVAC system node to which the unit sends its outlet air. This should be one of the inlet air nodes of the zone which is being served.
Field: Reheat Coil Air Inlet Node Name[LINK]
The name of the HVAC system node which is the inlet node of the unit’s heating coil. This is also the outlet node of the unit’s zone mixer.
Field: Zone Mixer Name[LINK]
The name of an zone mixer component (object: AirLoopHVAC:ZoneMixer) which composes part of the unit. Note that some of the input for the mixer will duplicate input fields of the powered induction unit. One of the zone mixer inlet nodes should be the same as the supply air inlet node of the PIU; the other inlet node of the zone mixer should be the same as the air outlet node of the fan. The outlet node of the zone mixer should be the same as the inlet node of the heating coil.
Field: Fan Name[LINK]
The name of a fan component which composes part of the unit. Note that the fan’s maximum flow rate should be the same as the maximum secondary air flow rate of the PIU and the type of fan object must be Fan:SystemModel or Fan:ConstantVolume. The fan’s inlet node should be the same as the PIU secondary air inlet node. The fan’s outlet node should be the same as one of the zone mixer’s inlet nodes. The secondary fan will run only when the Availability Schedule specified in the Fan:ConstantVolume object is >0 or when it is overridden by an availability manager (ref. AvailabilityManager:NightCycle and others). See description of fan controls under Fan On Flow Fraction above.
Field: Reheat Coil Object Type[LINK]
The type of coil in the PIU. The valid choices are:
Coil:Heating:Water
Coil:Heating:Electric
Coil:Heating:Fuel
Coil:Heating:Steam
In other words, the PIU may have a hot water, gas, electric or steam reheat coil.
Field: Reheat Coil Name[LINK]
The name of the heating coil component which composes part of the unit. Note that the heating coil’s air inlet node is the same as the zone mixer’s outlet node and the heating coil’s air outlet node is the same as the PIU outlet node.
Field: Maximum Hot Water or Steam Flow Rate[LINK]
The maximum hot water or steam volumetric flow rate in m\(^{3}\)/s through the unit’s heating coil. The steam volumetric flow rate is calculated at 100C and 101325 Pa. If the heating coil is gas or electric this field should be blank.
Field: Minimum Hot Water or Steam Flow Rate[LINK]
The minimum hot water or steam volumetric flow rate in m\(^{3}\)/s through the unit’s heating coil. The steam volumetric flow rate is calculated at 100C and 101325 Pa. If the heating coil is gas or electric this field should be blank.
Field: Convergence Tolerance[LINK]
The control tolerance for the unit heating output. The unit is controlled by matching the unit output to the zone demand. For units with water coils, the model must be numerically inverted to obtain a specified output. The convergence tolerance is the error tolerance used to terminate the numerical inversion procedure. Basically, this is the fraction:
\[\frac{{\left| {{Q_{PIU,out}} - {Q_{zone\;load}}} \right|}}{{{Q_{zone\;load}}}} \le ConvergenceTolerance\]
For gas or electric heating coils, this input should be left blank. The default is 0.001.
Field: Fan Control Type[LINK]
This field can be used to declare that a model for variable speed fan should be used. There are two choices, VariableSpeed or Constant. Enter VariableSpeed to indicate that the air terminal should operate with variable fan and emulate a modern controller. To use VariableSpeed the fan type needs to be a Fan:SystemModel and the named fan needs to be setup for variable flow. Enter Constant to use the legacy model for constant fan operation.
Field: Minimum Fan Turn Down Ratio[LINK]
This field is used to determine the minimum fan speed as a fraction when modeling variable speed fan. This ratio or fraction is multiplied by the Maximum Air Flow Rate to determine the minimum air flow rate while the fan is operating.
Field: Heating Control Type[LINK]
This field is used to declare how the heating coil is to be controlled. There are two choices, Staged or Modulated, see the control diagrams above.
Staged heat control has two stages. The first stage increases the fan flow first while leaving the reheat coil off. The second stage runs the fan at full speed and brings on heating.
Modulated heat control has three stages and considers discharge air temperature. The first stage of heating leaves fan speed at the minimum and brings on heat until the design discharge air temperature is reached. The second stage of heating maintains the design discharge air temperature and ramps up the fan speed. The third stage of heating runs at full fan speed and allows the discharge air temperature to exceed the design up until it reaches a high limit. When using the Modulated heat control type the following two fields are needed for input on the discharge air temperatures.
Field: Design Heating Discharge Air Temperature[LINK]
This field is used to indicate the design discharge air temperature during the second stage heating for Modulated heat control. The default is 32.1 deg. C (90 deg. F).
Field: High Limit Heating Discharge Air Temperature[LINK]
This field is used to indicate the high limit on discharge air temperature at the end of stage three heating for Modulated heat control. The default is 37.7 deg. C (100 deg. F).
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal Primary Damper Position []
HVAC,Average,Zone Air Terminal Heating Rate [W]
HVAC,Sum,Zone Air Terminal Heating Energy [J]
HVAC,Average,Zone Air Terminal Sensible Cooling Rate [W]
HVAC,Sum,Zone Air Terminal Sensible Cooling Energy [J]
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
HVAC,Average,Zone Air Terminal Total Air Mass Flow Rate [kg/s]
HVAC,Average,Zone Air Terminal Primary Air Mass Flow Rate [kg/s]
HVAC,Average,Zone Air Terminal Secondary Air Mass Flow Rate [kg/s]
HVAC,Average,Zone Air Terminal Outlet Discharge Air Temperature [C]
HVAC,Average,Zone Air Terminal Current Operation Control Stage [ ]
Zone Air Terminal Primary Damper Position [][LINK]
This output is the variable air volume primary damper position required to meet the zone load. This is the average value over the frequency being reported. The damper position is defined as the terminal unit primary air mass flow rate divided by the terminal unit’s maximum primary air mass flow rate.
Zone Air Terminal Heating Rate [W][LINK]
This field reports the dry air heating addition rate of the parallel PIU terminal unit to the zone it is serving in Watts. This is determined by outlet and zone air conditions and the mass flow rate through the terminal unit.
Zone Air Terminal Heating Energy [J][LINK]
This field reports the dry air heat addition of the parallel PIU terminal unit to the zone it is serving in Joules over the timestep being reported. This is determined by outlet and zone air conditions, the mass flow rate through the terminal unit, and the timestep.
Zone Air Terminal Sensible Cooling Rate [W][LINK]
This field reports the sensible heat extraction rate of the parallel PIU terminal unit from the zone it is serving in Watts. This is determined by the outlet and zone conditions and the mass flow rate through the terminal unit.
Zone Air Terminal Sensible Cooling Energy [J][LINK]
This field reports the dry air sensible heat extraction of the parallel PIU terminal unit from the zone it is serving in Joules over the timestep being reported. This is determined by outlet and zone air conditions, the mass flow rate through the terminal unit, and the timestep.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
Zone Air Terminal Total Air Mass Flow Rate [kg/s][LINK]
This field reports the total air mass flow rate discharging from the air terminal into the zone, in kg/s. The flow rate will vary when modeling a variable speed fan.
Zone Air Terminal Primary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal from the primary node, typically a central air handling unit, in kg/s. The flow will vary during cooling when using a variable speed fan.
Zone Air Terminal Secondary Air Mass Flow Rate [kg/s][LINK]
This field reports the air mass flow entering the terminal from the secondary node, in kg/s. This air is typically locally recirculated or induced air drawn from the return plenum or directly from the zone. The flow rate will vary during heating when using a variable speed fan.
Zone Air Terminal Outlet Discharge Air Temperature [C][LINK]
This field reports the drybulb temperature of the air leaving the terminal and discharging into the zone. When using the Modulated heating control method, the air terminal controls the discharge temperature with design and high limit values.
Zone Air Terminal Current Operation Control Stage[LINK]
This field reports the current control stage of a PIU terminal. The controller diagrams above show the different stages. This output helps to monitor what control stage the air terminal is in at a given time. The output itself is an integer value that is mapped to a stage in the following list. Note that the frequency of reporting needs to be at the highest level because averaging integers across more than one system timestep makes them meaningless.
value = -1 => Not determined, should not occur, please report to developers
value = 0 => The terminal is shut down, the system is not available
value = 1 => Constant speed, cooling
value = 2 => Constant speed, heating
value = 3 => Deadband, no cooling, no heating
value = 4 => Variable speed, first stage cooling
value = 5 => Variable speed, second stage cooling
value = 6 => Variable speed, staged, first stage heating
value = 7 => Variable speed, staged, second stage heating
value = 8 => Variable speed, modulated, first stage heating
value = 9 => Variable speed, modulated, second stage heating
value = 10 => Variable speed, modulated, third stage heating
AirTerminal:SingleDuct:ConstantVolume:FourPipeInduction[LINK]
The four pipe induction terminal unit provides local hot water heating or chilled water cooling of induced zone air which then mixes with centrally conditioned supply air. An air conditioning system consisting of these terminal units is effectively a mixed central air / local hydronic system. The centrally conditioned air supplied to the induction terminal units is constant volume at quite high pressure. The central air is discharged through a nozzle in the terminal unit, inducing a flow of room air over a hydronic heating/cooling coil. The coil is connected either to a single inlet and outlet pipe (2 pipe unit) or to 2 inlets and 2 outlets (4 pipe unit). The heated or cooled induced air mixes with the centrally conditioned air before being discharged into the zone. The terminal units are usually expected to do only sensible cooling – any dehumidification is done by the central air conditioning system.
The EnergyPlus model of the four pipe induction terminal unit is a compound component consisting of a hot water heating coil, a chilled water cooling coil, and an air mixer. The unit has two inlet air streams: the centrally conditioned supply air and the induced air from the zone. The induced air passes first through the heating coil, then through the cooling coil and finally through the mixer. The central supply air goes directly into the mixer. The water flow through the hot or cold water coil is varied to meet the zone air conditioning requirement. Note that EnergyPlus models the four pipe induction terminal unit as having separate heating and cooling coils whereas real units have only a single coil used for both heating and cooling. Note also that the four pipe induction unit model can be used to model a two pipe unit by simply adjusting the heating and cooling coil schedules so that the heating coil is off when the cooling coil is on and vice versa.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for a particular four pipe induction terminal unit. Any reference to this unit by another object will use this name.
Field: Availability Schedule Name[LINK]
The name of the schedule (ref: Schedule) that denotes whether the unit can run during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Maximum Total Air Flow Rate[LINK]
The maximum volumetric air flow rate discharged from the unit in cubic meters per second. Since this is a constant air volume unit, this is also the design, rated air flow rate of the unit. Note that this is the total discharge flow rate – including both central supply and induced air.
Field: Induction Ratio[LINK]
The ratio of induced air flow rate to primary supply air flow rate. The default is 2.5 the supply air induces zone air flow at 2.5 times the primary supply air flow rate.
Field: Supply Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its primary or supply air
Field: Induced Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its secondary or recirculated air. This should be the same node as one of the zone exhaust nodes.
Field: Air Outlet Node Name[LINK]
The name of the HVAC system node to which the unit sends its outlet air. This should be one of the inlet air nodes of the zone which is being served.
Field: Heating Coil Object Type[LINK]
The type of heating coil in the terminal unit. The choices are:
In other words, the unit may have a hot water coil only.
Field: Heating Coil Name[LINK]
The name of the heating coil component which composes part of the unit. Note that the heating coil’s air inlet node is the same as the terminal unit’s induced air inlet node. The heating coil’s air outlet node is the same as the cooling coil’s air inlet node.
Field: Maximum Hot Water Flow Rate[LINK]
The maximum hot water volumetric flow rate in m\(^{3}\)/sec through the unit’s heating coil.
Field: Minimum Hot Water Flow Rate[LINK]
The minimum hot water volumetric flow rate in m\(^{3}\)/sec through the unit’s heating coil.
Field: Heating Convergence Tolerance[LINK]
The control tolerance for the unit heating output. The unit is controlled by matching the unit output to the zone demand. The model must be numerically inverted to obtain a specified output. The convergence tolerance is the error tolerance used to terminate the numerical inversion procedure. Basically, this is the fraction:
\[\frac{{\left| {{Q_{unit,out}} - {Q_{zone\;load}}} \right|}}{{{Q_{zone\;load}}}} \le ConvergenceTolerance\]
The default is 0.001.
Field: Cooling Coil Object Type[LINK]
The type of cooling coil in the terminal unit. The choices are:
Coil:Cooling:Water
Coil:Cooling:Water:DetailedGeometry
In other words, the unit must use only the water cooling coils.
Field: Cooling Coil Name[LINK]
The name of the cooling coil component which composes part of the unit. Note that the cooling coil’s air inlet node is the same as the heating coil’s air outlet node. The cooling coil’s air outlet node is the same as one of the zone mixer’s inlets.
Field: Maximum Cold Water Flow Rate[LINK]
The maximum cold water volumetric flow rate in m\(^{3}\)/sec through the unit’s cooling coil.
Field: Minimum Cold Water Flow Rate[LINK]
The minimum cold water volumetric flow rate in m\(^{3}\)/sec through the unit’s cooling coil.
Field: Cooling Convergence Tolerance[LINK]
The control tolerance for the unit cooling output. The unit is controlled by matching the unit output to the zone demand. The model must be numerically inverted to obtain a specified output. The convergence tolerance is the error tolerance used to terminate the numerical inversion procedure. Basically, this is the fraction:
\[\frac{{\left| {{Q_{unit,out}} - {Q_{zone\;load}}} \right|}}{{{Q_{zone\;load}}}} \le ConvergenceTolerance\]
The default is 0.001.
Field: Zone Mixer Name[LINK]
The name of an zone mixer component (object: AirLoopHVAC:ZoneMixer) which composes part of the terminal unit. Note that some of the zone mixer’s inputs will duplicate some of the terminal unit’s inputs. One of the zone mixer inlet nodes should be the same as the supply air inlet node of the terminal unit; the other inlet node of the zone mixer should be the same as the cooling coil air outlet node. The outlet node of the zone mixer should be the same as the outlet node of the terminal unit.
An IDF example:
Outputs[LINK]
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:ConstantVolume:FourPipeBeam[LINK]
The four-pipe beam air terminal system is a mixed air-hydronic system. A central, single-duct forced-air system that supplies conditioned air to the zones. Chilled water circulates through ceiling-mounted fin-tube convector units to provide sensible cooling. Hot water circulates through the same convectors to provide heating. Water flow rate through the beam unit is varied to meet the zone sensible cooling or heating load. Any dehumidification is done by the central forced-air system. Thermodynamically, the cooled beam system resembles the four-pipe induction unit (AirTerminal:SingleDuct:ConstantVolume:FourPipeInduction).
To model a typical four-pipe beam system the user will need to define a conventional central constant volume forced air system in order to deliver primary air to the beam. This central system (usually) provides outside air for ventilation. Primary air is normally delivered at a fixed temperature but could be reset by a schedule or using an outdoor air reset setpoint manager. On the supply side of this air loop there will be the usual central conditioning equipment: outside air mixer, fan, heating and cooling coil. On the zone equipment (demand) side of the loop, the four-pipe beams will be represented as air terminal units. Because the four-pipe beam can provide heating the system can avoid over-cooling zones during times of low load with cool primary air temperatures, similar to the action of a reheat coil in a VAV terminal. Therefore, it is not necessary to have additional zone equipment (such as baseboard heaters) to handle heating (or reheating) loads.
Although the four-pipe beam equipment in a zone is treated by the program as a single terminal unit, the actual installation will often have multiple beam units in each zone. In this model, it is only the total length of all the beams and the total air flow of all the units that are described, not the number of individual beam units.
If needed, the program (in its sizing calculation for the system) determines the total length of beams and primary supply air flow that is needed to meet the zone design loads. The four pipe beam air terminal sizing differs from other air terminals in that the primary supply air flow rate is sized using the entire performance model and the flow rate is not the direct result from the Sizing:Zone and Sizing:System calculations. The flow rates will be somewhere between what an air terminal would size out using VentilationRequirement or Sensible in the Sizing:System object (either setting can be used).
The model includes two different types of inputs for flow rates, “design” and “rated … per-meter.” The design values are the actual sizes of the flow rates as viewed from the zone and central air handler (but before zone multipliers). The design values include all the individual beam units and their lengths. The rated per-meter values are used to characterize product performance at nominal rating conditions in such a way that it can be scaled to match the size of a zone. The performance characteristics at the rating point are not fixed in the program and can be entered by the user when they differ from default values. The rated per meter values are normalized by the linear dimensions of the beam and are generally obtained from product catalog data by dividing by the length of the beam. The rated primary air flow rate is assumed to be for sea level conditions while the design primary air flow rate is modeled for the location elevation above sea level.
Inputs[LINK]
Field: Name[LINK]
A unique user-assigned name for a particular beam unit. Any reference to this unit by another object will use this name.
Field: Primary Air Availability Schedule Name[LINK]
The name of the schedule that denotes whether the terminal unit is operating to provide primary air during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit is on and requesting primary air flow during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Cooling Availability Schedule Name[LINK]
The name of the schedule that denotes whether the terminal unit is operating to provide cooling during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit is on and available for beam cooling during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods. The primary air availability schedule named in the previous input field must have a value that is “on” during times that cooling is available.
Field: Heating Availability Schedule Name[LINK]
The name of the schedule that denotes whether the terminal unit can operate to provide heating during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit is on and available for beam heating during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods. The primary air availability schedule named in the input field above must have a value that is “on” during times that heating is available.
Field: Primary Air Inlet Node Name[LINK]
The name of the HVAC system air node from which the unit draws its primary air.
Field: Primary Air Outlet Node Name[LINK]
The name of the HVAC system air node that connects this terminal unit to the zone. The will be the same as one of the zone inlet nodes.
Field: Chilled Water Inlet Node Name[LINK]
The name of the chilled water inlet node. If desired, the chilled water node connections can be omitted and the model will assume the intent is to model a two-pipe heating only beam.
Field: Chilled Water Outlet Node Name[LINK]
The name of the chilled water outlet node.
Field: Design Primary Air Volume Flow Rate[LINK]
This is the air flow rate (m3/s) of the primary air entering the air terminal unit from the central air handling unit. This input can be autosized.
Field: Design Chilled Water Volume Flow Rate[LINK]
The maximum chilled water flow rate (m3/s) for the unit(s) serving the entire zone. This input can be autosized based on the zone design load.
Field: Design Hot Water Volume Flow Rate[LINK]
The maximum hot water flow rate (m3/s) for the unit(s) serving the entire zone. This input can be autosized based on the zone design load.
Field: Zone Total Beam Length (m)[LINK]
The total length of all the beams in the zone (m). The real spaces may actually have a number of individual beam units of a specific length and this is the length of individual beams times the total number of beams in the thermal zone. It need not be an even multiple of actual unit’s beam length but it can be if desired. This field is autosizable.
Field: Rated Primary Air Flow Rate per Beam Length (m3/s-m)[LINK]
This is the primary air volume flow rate at rating conditions divided by the length of the beam, in m3/s-m. This “catalog” value for volume flow rate input is converted to a mass flow rate using standard air density at sea level. This value will be used for sizing the design primary air volume flow rate if the total beam length is not also autosized. The default is 0.035 m3/s-m.
Field: Beam Rated Cooling Capacity per Beam Length (W/m)[LINK]
This is the beam cooling capacity at rating conditions divided by the length of the beam, in W/m. This is only the cooling contributed by the chilled water circulating through the convector and is separate from any cooling (or heating) that may also be provided by the primary air. The default is 600 W/m.
Field: Beam Rated Cooling Room Air Chilled Water Temperature Difference (Delta C)[LINK]
This input defines the value of the temperature difference between the room air and entering chilled water at the rating point, in delta Celsius. This “catalog” input helps to define the operating conditions that correspond with Rated Beam Cooling Capacity per Meter. It is used to normalize the independent variable in the input field called Beam Cooling Capacity Temperature Difference Modification Factor Curve or Table Name. The default is 10.0 delta C.
Field: Beam Rated Chilled Water Volume Flow Rate per Beam Length (m3/s-m)[LINK]
This input defines the value of the chilled water flow rate per meter length of beam at the rating point, in m3/s-m. This input helps to define the operating conditions that correspond with Rated Beam Cooling Capacity per Meter. It is used to normalize the independent variable in the input field called Beam Cooling Capacity Chilled Water Flow Modification Factor Curve or Table Name. The default is 0.00005 m3/s-m.
Field: Beam Cooling Capacity Temperature Difference Modification Factor Curve Name[LINK]
This field is the name of a curve or table object that describes how the beam convector’s cooling capacity varies as a function of the temperature difference between the zone air and the entering chilled water. The single independent variable is the ratio of the current simulation results for the difference between the air and entering water and the difference at the rating point. The result of the curve or table is multiplied by the rated capacity to adjust the cooling capacity.
Field: Beam Cooling Capacity Air Flow Modification Factor Curve Name[LINK]
This field is the name of a curve or table object that describes how the beam convector’s cooling capacity varies as a function of the primary air flow rate. The single independent variable is the ratio of the current primary air flow rate and the primary air flow rate at the rating point. The result of the curve or table is multiplied by the rated capacity to adjust the cooling capacity. The factor is useful to adjust for a range of primary air flow rates that a given product can accommodate. However, since this is a constant volume air terminal, the modification does not typically vary during the simulation and the range of independent variable does not need to be all that broad in practice.
Field: Beam Cooling Capacity Chilled Water Flow Modification Factor Curve Name[LINK]
This field is the name of a curve or table object that describes how the beam convector’s cooling capacity varies as a function of the water flow rate. The single independent variable is the ratio of the current fluid flow rate to the fluid flow rate at the rating point. The result of the curve or table is multiplied by the rated capacity to adjust the cooling capacity. The model will adjust the chilled water flow rate to vary cooling power to meet the zone load, so for control purposes, the range of the independent variable must include all the way down to zero flow, with zero capacity at zero flow.
Field: Beam Rated Heating Capacity per Beam Length (W/m)[LINK]
This is the beam heating capacity at rating conditions divided by the length of the beam, in W/m. This is only the heating contributed by the hot water circulating through the convector and is separate from any heating (or cooling) that may also be provided by the primary air. The default is 1.200 W/m.
Field: Beam Rated Heating Room Air Hot Water Temperature Difference (Delta C)[LINK]
This input defines the value of the temperature difference between the entering hot water and the room air at the rating point, in delta Celsius. This input helps to define the operating conditions that correspond with Rated Beam Heating Capacity per Meter. It is used to normalize the independent variable in the input field called Beam Heating Capacity Temperature Difference Modification Factor Curve or Table Name. The default is 27.8 delta C.
Field: Beam Rated Hot Water Volume Flow Rate per Beam Length (m3/s-m)[LINK]
This input defines the value of the hot water flow rate per meter length of beam at the rating point, in m3/s/m, or more strictly m3/s-m. This input helps to define the operating conditions that correspond with Rated Beam Heating Capacity per Meter. It is used to normalize the independent variable in the input field called Beam Heating Capacity Hot Water Flow Modification Factor Curve or Table Name. The default is 0.00005 m3/s-m.
Field: Beam Heating Capacity Temperature Difference Modification Factor Curve Name[LINK]
This field is the name of a curve or table object that describes how the beam convector’s heating capacity varies as a function of the temperature difference between the entering hot water and the zone air. The single independent variable is the ratio of the current simulation results for the difference between the water and air and the difference at the rating point. The result of the curve or table is multiplied by the rated capacity to adjust the heating capacity.
Field: Beam Heating Capacity Air Flow Modification Factor Curve Name[LINK]
This field is the name of a curve or table object that describes how the beam convectors heating capacity varies as a function of the primary air flow rate. The single independent variable is the ratio of the current primary air flow rate and the primary air flow rate at the rating point. The result of the curve or table is multiplied by the rated capacity to adjust the heating capacity. The factor is useful to adjust for a range of primary air rates that a given product can accommodate. However, since this is a constant volume air terminal, the modification does not typically vary during the simulation and the range of independent variable does not need to be all that broad in practice.
Field: Beam Heating Capacity Hot Water Flow Modification Factor Curve Name[LINK]
This field is the name of a curve or table object that describes how the beam convector’s heating capacity varies as a function of the water flow rate. The single independent variable is the ratio of the current fluid flow rate to the fluid flow rate at the rating point. The result of the curve or table is multiplied by the rated capacity to adjust the heating capacity. The model will adjust the hot water flow rate to vary heating power to meet the zone load, so for control purposes, the range of the independent variable must include all the way down to zero flow, with zero capacity at zero flow.
An example input follows:
Outputs[LINK]
Zone Air Terminal Beam Sensible Cooling Rate [W][LINK]
Zone Air Terminal Beam Sensible Cooling Energy [J][LINK]
These are the sensible cooling power and energy delivered by the beams to the zone, exclusive of any cooling or heating done by the primary air.
Zone Air Terminal Beam Sensible Heating Rate [W][LINK]
Zone Air Terminal Beam Sensible Heating Energy [J][LINK]
These are the sensible heating power and energy delivered by the beams to the zone, exclusive of any cooling or heating done by the primary air.
Zone Air Terminal Primary Air Sensible Cooling Rate [W][LINK]
Sensible cooling by the primary air to the zone, exclusive of any cooling or heating done by the beams.
Zone Air Terminal Primary Air Sensible Cooling Energy [J][LINK]
Sensible cooling by the primary air to the zone, exclusive of any cooling or heating done by the beams.
Zone Air Terminal Primary Air Sensible Heating Rate [W][LINK]
Heating by the primary air to the zone, exclusive of any cooling or heating done by the beams.
Zone Air Terminal Primary Air Sensible Heating Energy [J][LINK]
Heating by the primary air to the zone, exclusive of any cooling or heating done by the beams.
Zone Air Terminal Primary Air Flow Rate [m3/s][LINK]
Air flow rate from the central air handler into the zone in m3/s. Note that this does not include any of the secondary air flow that is induced by the convector and nozzle action (the model does not resolve secondary air flow rate and the result are not available).
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:ConstantVolume:CooledBeam[LINK]
The Cooled Beam system is a mixed air-hydronic system. A central, single-duct forced-air system supplies conditioned ventilation air to the zones. Sensible cooling is done by chilled water circulating through ceiling mounted cooled beam units. Chilled water flow rate through the cooled beam units is varied to meet the zone sensible cooling load. Any dehumidification is done by the central ventilation air system. Heating is usually accomplished with hot water radiators. Thermodynamically, the cooled beam system resembles the four-pipe induction unit.
To model a typical cooled beam system the user will need to define a conventional central constant volume forced air system. This system will normally be 100% outside air delivered at a fixed supply temperature (which could be reset by schedule or by outside air temperature). On the supply side of this air loop there will be the usual central AC equipment: outside air mixer, fan, heating and cooling coil. On the zone equipment (demand) side of the loop, the chilled beams will be represented as terminal units. Additional zone equipment (such as baseboard heaters) will be needed to handle heating loads.
Although the cooled beam equipment in a zone is treated by the program as a single terminal unit, the actual installation will have multiple beams in each zone. The program (in its sizing calculation for the system) figures out how many beams of what length are needed to meet the zone design load.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for a particular chilled beam unit. Any reference to this unit by another object will use this name.
Field: Availability Schedule Name[LINK]
The name of the schedule (ref: Schedule) that denotes whether the unit can run during a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the unit can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the unit must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Cooled Beam Type[LINK]
Two types of units are modeled: Active or Passive. In the active unit, primary air is supplied through the beam, inducing some secondary zone air into contact with the coil. This unit acts as an active convector. The passive unit is simply a passive, finned convector. Primary air is supplied through a normal diffuser.
Field: Supply Air Inlet Node Name[LINK]
The name of the HVAC system node from which the unit draws its primary or supply air. Note that this field should be specified for both types of unit, even though supply air does not pass through the passive unit.
Field: Supply Air Outlet Node Name[LINK]
The name of the air node that connects this terminal unit to the zone. The will be the same as one of the zone inlet nodes. The name of this node must be entered even if the actual beams are passive and is not actually supplying air to the zone.
Field: Chilled Water Inlet Node Name[LINK]
The name of the chilled water inlet node.
Field: Chilled Water Outlet Node Name[LINK]
The name of the chilled water outlet node.
Field: Supply Air Volumetric Flow Rate[LINK]
This is the air flow rate in cubic meters per second of the supply air entering the zone. This input would normally be autosized based on the ventilation requirement (see Zone Sizing).
Field: Maximum Total Chilled Water Volumetric Flow Rate[LINK]
The maximum chilled water flow rate (in cubic meters per second) for the unit. This input would normally be autosized based on the zone design load.
Field: Number of Beams[LINK]
The number of individual cooled beam units in the zone. Normally this unit would be autocalculated by the program based upon the previous field and the nominal flow rate for a single beam unit (set by the program to 0.07 kg/s).
Field: Beam Length[LINK]
The length of an individual beam in meters. Normally this will be autocalculated by the program based upon the number of beam units and the zone design sensible cooling load. 1 to 4 meters is a typical length range.
Field: Design Inlet Water Temperature[LINK]
The nominal or design inlet water temperature in degrees Celsius. The default is 15°C.
Field: Design Outlet Water Temperature[LINK]
The nominal or design outlet water temperature in degrees Celsius. The default is 17°C.
The following inputs are parameters used to characterize the performance of the chilled beam units. Values for a given unit can be obtained from the manufacturer. The parameters are used in the following equations.
P\(_{beam}\) = A·K·DT beam cooling output per unit length W/m
K = a·DT\(^{n1}\)·vr\(^{n2}\)·w\(^{n3}\) coil heat transfer coefficient W/(m\(^{2}\)K)
vr = (q\(_{in}\)/a\(_{0}\))·r\(_{air}\) room air mass flow rate across coil kg/(m\(^{2}\)s)
q\(_{in}\) = K\(_{1}\)·DT\(^{n}\)+K\(_{in}\)·q\(_{pr}\) room air volumetric flow rate across coil per
unit length m\(^{3}\)/(s-m)
DT is the room air –water temperature difference (average water temperature is used) in degrees C.
w is the water velocity in m/s.
q\(_{pr}\) is the supply air flow rate per unit length m\(^{3}\)/(s-m)
Field: Coil Surface Area per Coil Length[LINK]
Surface area on the air side of the beam per unit beam length. The units are square meters per meter. The default is 5.422. This is A in the above equations.
Field: Model Parameter a (a)[LINK]
This is in the above equations. The default is 15.3
Field: Model Parameter n1[LINK]
This is n1 in the above equations. The default is 0.
Field: Model Parameter n2[LINK]
This is n2 in the above equations. The default is 0.84.
Field: Model Parameter n3[LINK]
This is n3 in the above equations. The default is 0.12.
Field: Model Parameter a\(_{0}\) (a)[LINK]
This is a\(_{0}\) in the above equations. It is the free area of the coil in plan view (for the air flow) per unit beam length. The units are square meters per meter. The default is 0.171.
Field: Model Parameter K\(_{1}\) (K1)[LINK]
This is K\(_{1}\) in the above equations. The default is 0.005.
Field: Model Parameter n[LINK]
This is n in the above equations. The default is 0.4.
Field: Coefficient of Induction K\(_{in}\) (Kin)[LINK]
The coefficient of induction K\(_{in}\) in the above equations. The default is 2.0 for active beams and 0.0 for passive beams.
Field: Pipe Inside Diameter[LINK]
The water pipe inside diameter in meters. The default is 0.0145.
An example input is:
Outputs[LINK]
HVAC,Sum,Zone Air Terminal Beam Sensible Cooling Energy [J]
HVAC,Average,Zone Air Terminal Beam Sensible Cooling Rate [W]
HVAC,Sum, Zone Air Terminal Supply Air Sensible Cooling Energy [J]
HVAC,Average,Zone Air Terminal Supply Air Sensible Cooling Rate [W]
HVAC,Sum,Zone Air Terminal Supply Air Sensible Heating Energy [J]
HVAC,Average,Zone Air Terminal Supply Air Sensible Heating Rate [W]
HVAC,Sum,Zone Air Terminal Beam Chilled Water Energy [J]
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal Beam Sensible Cooling Rate [W][LINK]
Sensible cooling by the beams in the zone, exclusive of any cooling or heating done by the supply air.
Zone Air Terminal Beam Sensible Cooling Energy [J][LINK]
Sensible cooling by the beams in the zone, exclusive of any cooling or heating done by the supply air.
Zone Air Terminal Supply Air Sensible Cooling Rate [W][LINK]
Sensible cooling by the supply air to the zone, exclusive of any cooling done by the beams.
Zone Air Terminal Supply Air Sensible Cooling Energy [J][LINK]
Sensible cooling by the supply air to the zone, exclusive of any cooling done by the beams.
Zone Air Terminal Supply Air Sensible Heating Rate [W][LINK]
Heating by the supply air to the zone, exclusive of any cooling done by the beams.
Zone Air Terminal Supply Air Sensible Heating Energy [J][LINK]
Heating by the supply air to the zone, exclusive of any cooling done by the beams.
Zone Air Terminal Beam Chilled Water Energy [J][LINK]
The heat transfer energy for the chilled water serving the beams, in Joules.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outside air system.
AirTerminal:SingleDuct:Mixer[LINK]
The air terminal mixer provides a means of supplying central system air either to air inlet or supply side of a ZoneHVAC equipment such as a four pipe fan coil. Normally the central air would be ventilation air from a dedicated outside air system (DOAS).
This terminal mixer object mixes conditioned outdoor air (primary air) from DOAS air loop and recirculating (secondary air) and deliver it either to inlet or supply side of a local ZoneHVAC equipment. The terminal mixer can be connected either to the inlet or supply side of the local ZoneHVAC equipment and the connection type is specified in the input field Mixer Connection Type. If the AirTerminal:SingleDuct:Mixer object is connected to the supply side, a mix of conditioned outdoor air from a central dedicated outdoor air system (DOAS) with conditioned recirculation air from the local ZoneHVAC equipment is supplied as a single stream to the conditioned zone at its inlet node. If the AirTerminal:SingleDuct:Mixer object is connected to the inlet side, a mix of outdoor air from the a central dedicated outdoor air system (DOAS) with un-conditioned recirculation air from a zone exhaust node is supplied to the ZoneHVAC equipment inlet node. The mixer model will sum the two air streams and average the air properties. The AirTerminal:SingleDuct:Mixer is used with:
ZoneHVAC:FourPipeFanCoil
ZoneHVAC:WaterToAirHeatPump
ZoneHVAC:PackagedTerminalAirConditioner
ZoneHVAC:PackagedTerminalHeatPump
ZoneHVAC:TerminalUnit:VariableRefrigerantFlow
ZoneHVAC:UnitVentilator
AirLoopHVAC:UnitarySystem
The AirLoopHVAC:UnitarySystem object must be specified as a ZoneHVAC equipment. Since the ZoneHVAC equipment gets the outdoor air or ventilation air from central dedicated OA system, the design outdoor air flow rate input fields in the ZoneHVAC equipment are set to zero and the OutdoorAir:Mixer object type and object name input fields are left blank.
Inputs[LINK]
Field: Name[LINK]
A unique user assigned name for a particular terminal mixer unit. Any reference to this unit by another object will use this name.
Field: ZoneHVAC Unit Object Type[LINK]
The type of ZoneHVAC equipment to which this terminal mixer will be connected. This is a choice input field. Valid ZoneHVAC choices are:
ZoneHVAC:FourPipeFanCoil
ZoneHVAC:WaterToAirHeatPump
ZoneHVAC:PackagedTerminalAirConditioner
ZoneHVAC:PackagedTerminalHeatPump
ZoneHVAC:TerminalUnit:VariableRefrigerantFlow
ZoneHVAC:UnitVentilator
AirLoopHVAC:UnitarySystem
Field: ZoneHVAC Unit Object Name[LINK]
The name of ZoneHVAC equipment to which this mixer will be connected.
Field: Mixer Outlet Node Name[LINK]
The outlet air node name of the mixer. This will be an inlet air node name of the conditioned zone if the connection type specified in the input field Mixer Connection Type below is SupplySide, or else this will be the inlet air node name of the ZoneHVAC equipment if the connection type in the input field Mixer Connection Type below is InletSide.
Field: Mixer Primary Air Inlet Node Name[LINK]
The primary air (treated outdoor air) inlet node name of the mixer. This will be the outlet air node name of an AirLoopHVAC:ZoneSplitter or AirLoopHVAC:SupplyPlenum, providing the connection to the DOAS system.
Field: Mixer Secondary Air Inlet Node Name[LINK]
The secondary air (recirculating air) inlet node name of the mixer. This will be the outlet air node name of the ZoneHVAC equipment if the connection type in the input field Mixer Connection Type below is SupplySide, or else this will be either an exhaust air node name of the conditioned zone (Ref. ZoneHVAC:EquipmentConnections to draw air from a zone directly or an induced air outlet node (Ref. AirLoopHVAC:ReturnPlenum) to draw air from a return plenum when the zone return node is connected to a return plenum. The induced air outlet node will be the outlet air node name when the mixer connection type is SupplySide. If the mixer connection type is InletSide, then the induced air outlet node will be the mixer secondary air inlet node.
Field: Mixer Connection Type[LINK]
This input field allows user to specify the mixer connection type. Valid choices are InletSide or SupplySide. This is a required input field. If the mixer connection type selected is InletSide, then the mixer is connected on the inlet side of the ZoneHVAC equipment, or else if the mixer connection type selected is SupplySide, then the mixer is connected at the outlet side of the ZoneHVAC equipment.
Field: Design Specification Outdoor Air Object Name[LINK]
This field allows modifying the behavior of this air terminal so that it is modulated to supply the required outdoor air to the zone. This field is optional. When the name of an DesignSpecification:OutdoorAir or DesignSpecification:OutdoorAir:SpaceList object is entered, the model is changed to adjust the flow rate to provide the volume of outdoor air described by that object. This feature allows modeling demand controlled ventilation on a zone-by-zone basis using the Outdoor Air Flow per Person rate (specified in the DesignSpecification:OutdoorAir object) and the number of occupants (specified in the People object schedules). If the outdoor air fraction of the supply air is 1.0, as for a dedicated outdoor air system, the air flow rate will match the outdoor air requirement. When the outdoor air fraction is less than 1.0, as for a recirculating air system, the terminal air flow will be modulated upward to account for the increased total air flow needed to provide the required flow rate of outdoor air. The total air flow rate will not exceed the Maximum Air Flow Rate specified above. The volume flow rate is converted to mass flow rate using the standard density of air at Pressure = 101325 Pa, Temperature = 20C, and Humidity Ratio = 0.0.
Field: Per Person Ventilation Rate Mode[LINK]
This field specifies how the outdoor air ventilation rates are calculated when based on a rate per person. It can be either based on the current number of people as affected by time-varying occupancy schedules, or on the constant value for the maximum number of people. Enter the key CurrentOccupancy for the former and DesignOccupancy for the later.
An IDF examples for InletSide and SupplySide connection type:
AirTerminal:DualDuct:ConstantVolume[LINK]
The AirTerminal:DualDuct:ConstantVolume simulation or the typical Multizone is described by this Air Distribution Unit (ADU). Multizone systems condition all the air in a central apparatus and distribute it to the conditioned zones through two parallel ducts. One duct carries cold air and the other warm air, providing air sources for both heating and cooling at all times. In each conditioned zone, a mixing valve responsive to a room thermostat mixes the warm and cold air in proper proportions to satisfy the prevailing heating or cooling load of the space. The Multizone ADU is the specific component that leads to the zone containing the mixer and the mixing damper and then connecting to the zone. The total airflow to each room is kept constant while the proportion of hot air to cold air is adjusted to maintain the temperature in each zone at the desired level.
Inputs[LINK]
Field: Name[LINK]
Unique name for the Multizone ADU.
Field: Availability Schedule Name[LINK]
Schedule that this component will operate or is available to operate for a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Air Outlet Node Name[LINK]
The outlet node from the ADU to the zone.
Field: Hot Air Inlet Node Name[LINK]
The air-inlet node name that connects the hot air splitter to the individual zone ADU.
Field: Cold Air Inlet Node Name[LINK]
The air-inlet node name that connects the cold air splitter to the individual zone ADU.
Field: Maximum Air Flow Rate[LINK]
The design constant volume flow rate (m\(^{3}\)/sec) specified for that Multizone ADU.
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal Cold Supply Duct Damper Position []
HVAC,Average,Zone Air Terminal Hot Supply Duct Damper Position []
Zone Air Terminal Cold Supply Duct Damper Position[LINK]
This output is the damper position of the cold air stream in a dual duct air terminal. This is the average value over the frequency being reported. The damper position is defined as the terminal unit cold air mass flow rate divided by the terminal unit’s maximum cold air mass flow rate. This output is dimensionless and ranges from 0.0 to 1.0.
Zone Air Terminal Hot Supply Duct Damper Position[LINK]
This output is the damper position of the hot air stream in a dual duct air terminal. This is the average value over the frequency being reported. The damper position is defined as the terminal unit hot air mass flow rate divided by the terminal unit’s maximum hot air mass flow rate. This output is dimensionless and ranges from 0.0 to 1.0.
AirTerminal:DualDuct:VAV[LINK]
AirTerminal:DualDuct:VAV (i.e., Dual duct variable air volume (DDVAV)) systems are used to obtain zone temperature control by mixing the cold and warm air in various volume combinations. The fan is sized for the anticipated maximum coincident hot or cold volume, not the sum of the instantaneous peaks. This system has an advantage of a true single path VAV system, except for warm port leakage. When cold air is modulated for control before mixing, it operates similar to the VAV induction when mixing occurs without hot deck reheat. It is similar to a reheat system when mixing occurs while the hot deck is using the reheat coil. It uses more energy than a true VAV system, but less than a constant volume dual duct system.
The zone minimum supply air flow can be further adjusted using scheduled fraction values specified in the field Minimum Air Flow Turndown Schedule Name.
Inputs[LINK]
Field: Name[LINK]
Unique name for the AirTerminal:DualDuct:VAV Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
Schedule that this component will operate or is available to operate for a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Air Outlet Node Name[LINK]
The outlet node from the ADU to the zone.
Field: Hot Air Inlet Node Name[LINK]
The air-inlet node name that connects the hot air splitter to the individual zone ADU.
Field: Cold Air Inlet Node Name[LINK]
The air-inlet node name that connects the cold air splitter to the individual zone ADU.
Field: Maximum Damper Air Flow Rate[LINK]
The design maximum volume flow rate (m\(^{3}\)/sec) specified for DDVAV ADU.
Field: Zone Minimum Air Flow Fraction[LINK]
The minimum flow rate to the zone while the system is operating, specified as a fraction of the Max Damper Air Flow Rate. The minimum zone fraction is normally specified to meet the minimum ventilation requirement for the occupants.
Field: Design Specification Outdoor Air Object Name[LINK]
This alpha field specifies the name of a DesignSpecification:OutdoorAir or DesignSpecification:OutdoorAir:SpaceList object. When this field is used, the terminal unit will increase flow as needed to meet this outdoor air requirement. If Outdoor Air Flow per Person is non-zero, then the outdoor air requirement will be computed based on the current number of occupants in the zone. At no time will the supply air flow rate exceed the value for Maximum Air Flow Rate. If this field is blank, then the terminal unit will not be controlled for outdoor air flow. See documentation for the zone HVAC outdoor air object for further information (Ref DesignSpecification:OutdoorAir).
Field: Minimum Air Flow Turndown Schedule Name[LINK]
This field adjusts Zone Minimum Air Flow Fraction by multiplying it using this schedule. Schedule values are fractions, 0.0 to 1.0. This field adjusts the minimum airflow turndown value below the zone design minimum air flow and is intended for use with ASHRAE Standard 170. This field can also be used to adjust the design minimum air flow sizing calculation by applying a desired fraction values to summer and winter design days turndown schedule. If this field is left blank, then the turndown minimum air flow fraction value is set to 1 and the VAV air terminal uses the fixed fraction specified in in the field Zone Minimum Air Flow Fraction.
An IDF example:
Outputs[LINK]
HVAC,Average,Zone Air Terminal Cold Supply Duct Damper Position []
HVAC,Average,Zone Air Terminal Hot Supply Duct Damper Position []
HVAC,Average,Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s]
Zone Air Terminal Cold Supply Duct Damper Position [][LINK]
This output is the damper position of the cold air stream in a dual duct air terminal. This is the average value over the frequency being reported. The damper position is defined as the terminal unit cold air mass flow rate divided by the terminal unit’s maximum cold air mass flow rate.
Zone Air Terminal Hot Supply Duct Damper Position [][LINK]
This output is the damper position of the hot air stream in a dual duct air terminal. This is the average value over the frequency being reported. The damper position is defined as the terminal unit hot air mass flow rate divided by the terminal unit’s maximum hot air mass flow rate.
Zone Air Terminal Outdoor Air Volume Flow Rate [m3/s][LINK]
This output is the amount of outdoor air entering the zone. This is the average value over the frequency being reported. The amount of outdoor air is defined as the terminal unit air volume flow rate multiplied by the fraction of outdoor air entering the air loop’s outdoor air system.
AirTerminal:DualDuct:VAV:OutdoorAir[LINK]
AirTerminal:DualDuct:VAV:OutdoorAir provides a model for a type of dual duct air system in which one duct provides outdoor air ventilation and the other provides VAV cooling. The Outdoor Air stream and the Recirculated Air stream are conditioned and supplied through separate air streams as part of a centralized dedicated outdoor air (DOAS) distribution system. The dual duct arrangement allows the ventilation air to be controlled separately using schedules or occupancy demand while the recirculated air is controlled to meet the dry-bulb zone temperature setpoint. The two airstreams remain decoupled until the terminal box where they are mixed. The terminal unit is meant for systems regulating outdoor air based only on demand control or code minimum settings and not on economizer operation.
This air terminal does not have heating coils and is not configured for conditions zones that need heat. Additional ZoneHVAC equipment, such as baseboards or fan coil units, are needed to provide heating to the zone when using this air terminal.
Although this air terminal is primarily for dual duct system, it is allowed to use just the outdoor air side in a single duct system. This can be useful for modeling single duct DOAS when the required volume of outdoor air varies over time.
Inputs[LINK]
Field: Name[LINK]
Unique name for the AirTerminal:DualDuct:VAV:OutdoorAir Air Distribution Unit (ADU).
Field: Availability Schedule Name[LINK]
Schedule that this component will operate or is available to operate for a given time period. A schedule value greater than 0 (usually 1 is used) indicates that the component can be on during the time period. A value less than or equal to 0 (usually 0 is used) denotes that the component must be off for the time period. If this field is blank, the schedule has values of 1 for all time periods.
Field: Air Outlet Node Name[LINK]
The outlet node of the terminal unit. This is the node leaving the unit and serving as the inlet to the zone. It is for the mixed flow leaving from both of the inlet node.
Field: Outdoor Air Inlet Node Name[LINK]
The inlet node of the Outdoor Air (OA) stream deck of the Dual Duct system.
Field: Recirculated Air Inlet Node Name[LINK]
The inlet node of the Recirculated Air (RA) stream deck of the Dual Duct system. This input is optional. If no node name is entered here, then the recirculation duct is disabled and the model functions as a single duct terminal and no second cooling deck is needed.
Field: Maximum Zone Total Airflow Rate[LINK]
Max total airflow rate (in m3/s) at the terminal unit outlet including both the Outdoor Air stream and the Recirculated stream. Can be autosized based on the Design Outdoor Airflow Rate and the zone thermal cooling load. The autosized flow rate will be the sum of the maximum outdoor air requirement and the flow for cooling. When autosizing, this maximum and the individual inlet flow rate sizes are reported to the eio file.
Field: Design Specification Outdoor Air Object Name[LINK]
This field specifies the name of a DesignSpecification:OutdoorAir or DesignSpecification:OutdoorAir:SpaceList object. This field is required for this object. The terminal unit will modulate the Outdoor Air stream to meet this outdoor air requirement. If Outdoor Air Flow per Person is applied, then the outdoor air required will be based on either the current number of occupants in the zone, as for demand controlled ventilation, or the design level of occupants depending on the setting in the next field.
Field: Per Person Ventilation Rate Mode[LINK]
This field specifies how the outdoor air ventilation rates are calculated when based on a rate per person. It can be either based on the current number of people as affected by time-varying occupancy schedules, or on the constant value for the maximum number of people. Enter the key CurrentOccupancy for the former and DesignOccupancy for the later.
An example input object follows.
Outputs[LINK]
Output:Variable,*,Zone Air Terminal Outdoor Air Duct Damper Position,hourly; !- HVAC Average []
Output:Variable,*,Zone Air Terminal Recirculated Air Duct Damper Position,hourly; !- HVAC Average []
Output:Variable,*,Zone Air Terminal Outdoor Air Fraction,hourly; !- HVAC Average []
Zone Air Terminal Outdoor Air Duct Damper Position [][LINK]
This output is the damper position of the outdoor air stream in a dual duct air terminal. This is the average value over the frequency being reported. The damper position is defined as the terminal unit outdoor air mass flow rate divided by the terminal unit’s maximum outdoor air mass flow rate. This output is dimensionless and ranges from 0.0 to 1.0.
Zone Air Terminal Recirculated Air Duct Damper Position [][LINK]
This output is the damper position of the recirculated cool air stream in a dual duct air terminal. This is the average value over the frequency being reported. The damper position is defined as the terminal unit cool air mass flow rate divided by the terminal unit’s maximum cool air mass flow rate. This output is dimensionless and ranges from 0.0 to 1.0.
Zone Air Terminal Outdoor Air Fraction [][LINK]
This output is the current fraction of outdoor air contained in the combined flow of air entering the zone from the terminal unit. This is the average value over the frequency being reported. The outdoor air fraction is defined as the terminal unit outdoor air mass flow rate divided by the total air mass flow rate. This output is dimensionless and ranges from 0.0 to 1.0.
Documentation content copyright © 1996-2026 The Board of Trustees of the University of Illinois and the Regents of the University of California through the Ernest Orlando Lawrence Berkeley National Laboratory. All rights reserved. EnergyPlus is a trademark of the US Department of Energy.
This documentation is made available under the EnergyPlus Open Source License v1.0.
